Removing Pcm Display And Operator Control Unit

NOTIFICATION

Incorrect handling of optical waveguides

• Risk of damage to optical waveguide
  • Observe the requirements for working with and installing optical waveguides.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

Information

Ignition switched off and ignition key removed before disconnecting or connecting load.

Information

Protect centre console against scratching by using a suitable cover.

Information

Do not trap or damage wire harnesses when inserting the PCM display and operator control unit.

1. Cover the switch console and selector lever or shift lever with clean, soft cloths.

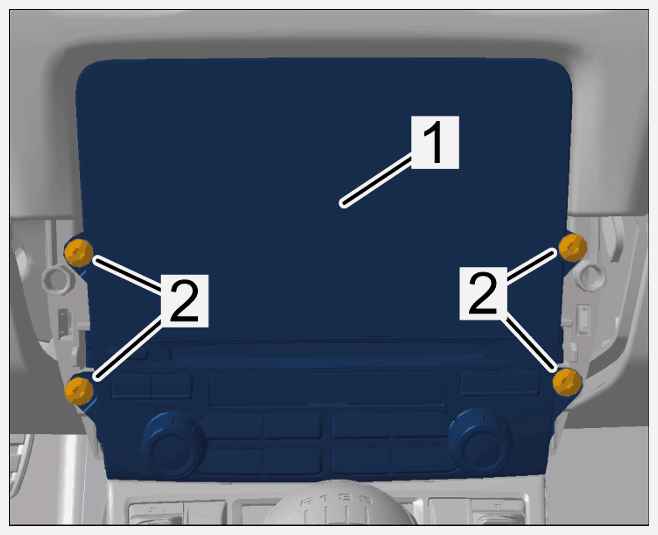

2. Unscrew screws -2-  and pull PCM display and operator control unit -1-  forward to remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   The number of electric plug connections will vary depending on equipment.

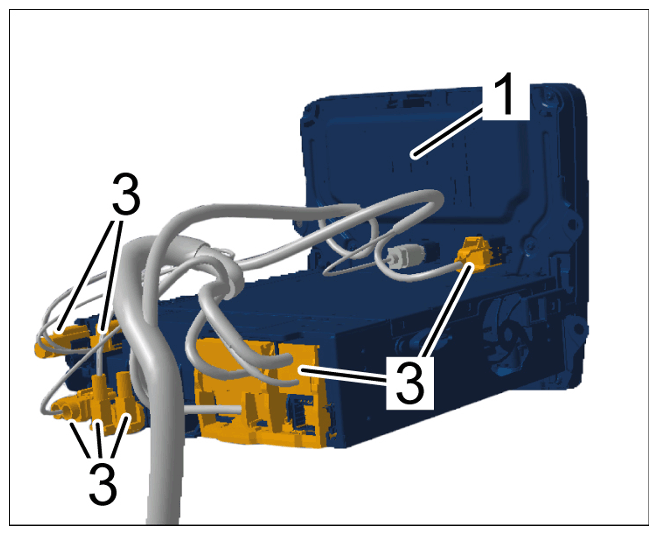

3. Disconnect electric plug connections -3-  and remove PCM display and operator control unit -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Remove PCM display and operator control unit.

   Information

   • Work on the PCM display and operator control unit on a clean surface.

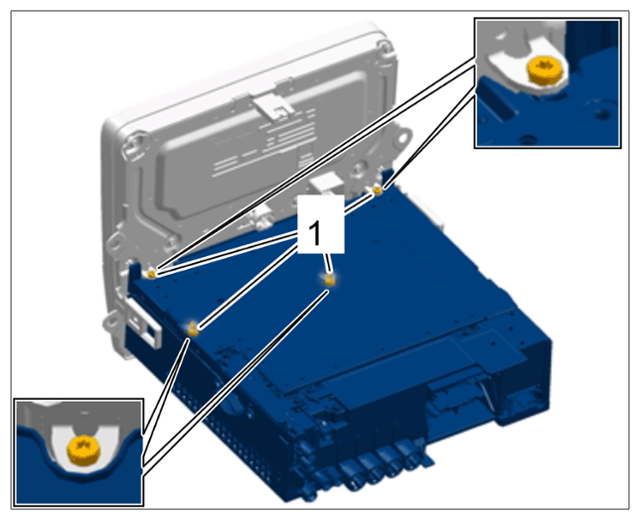

5. Unscrew the four fastening screws -1-  on the display and operator control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6. Remove central computer from display and operator control unit by pulling it to the rear.
