Removing And Installing USB/IPOD Control Unit

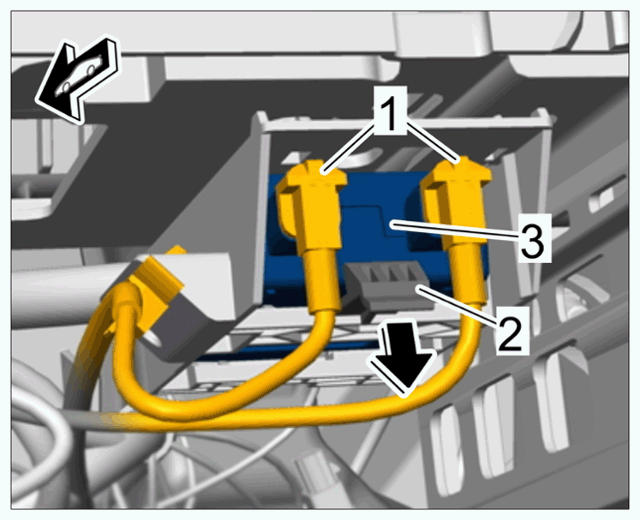

  1. Disconnect electric plug connections -1-  .
  2. Release retaining lug -2-  and loosen USB/iPod control unit -3-  .
    G14956109Courtesy of PORSCHE CARS NORTH AMERICA, INC.

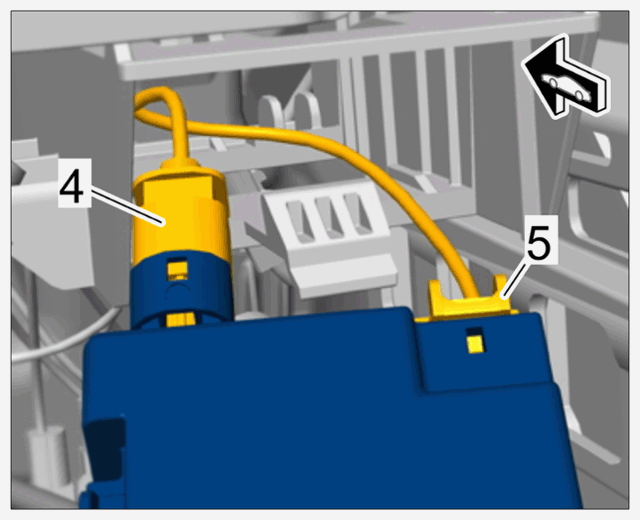

  3. Disconnect electric plug connections -4 and 5-  and remove USB/iPod control unit.
    G14956110Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Installation is performed in reverse order.
