Removing And Installing Control Unit For Memory Seat Adjustment

NOTIFICATION

Voltage drop

• Risk of irreparable damage to control unit
• Risk of damage to control unit
• Fault entries in the control unit
• Coding in the control unit is aborted
• Malfunctions in control unit, even during programming

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least 90 A to the vehicle battery.

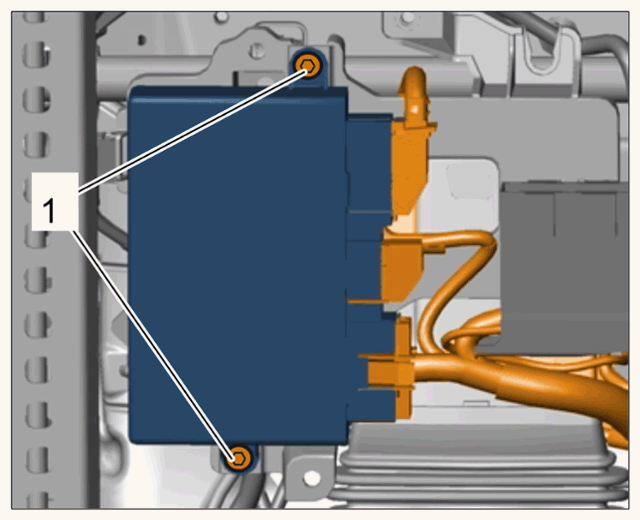

1. Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for control unit for memory seat adjustment

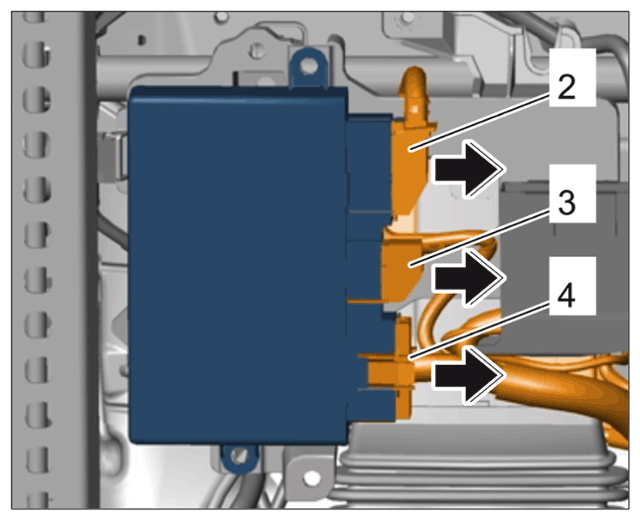

2. Release and unplug electric plug connections -2, 3, 4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnect the electric plug connections

3. Remove control unit for memory seat adjustment.
4. Installation is performed in reverse order.
