Removing Control Unit For Distance Measuring Sensor

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  • → Remove the ignition key and switch off load before disconnecting or removing load.

1. Switch off ignition and pull remote control out of ignition lock.

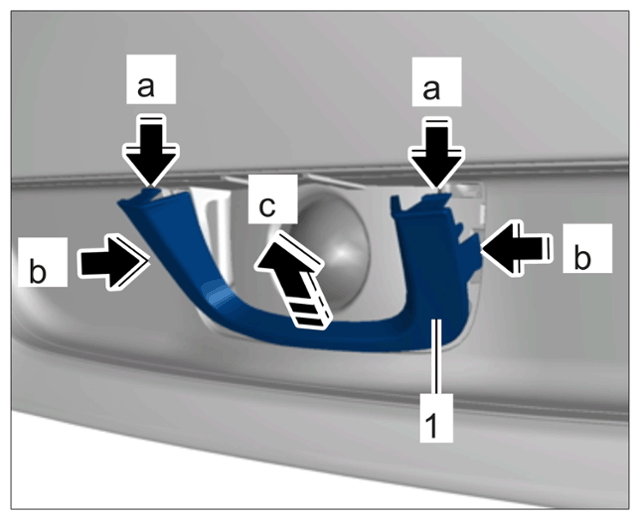

2. Disengage trim cover -1  - at the top and sides -arrows a and b-  and pull it up at an angle -arrow c-  .
   1. 2.1

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

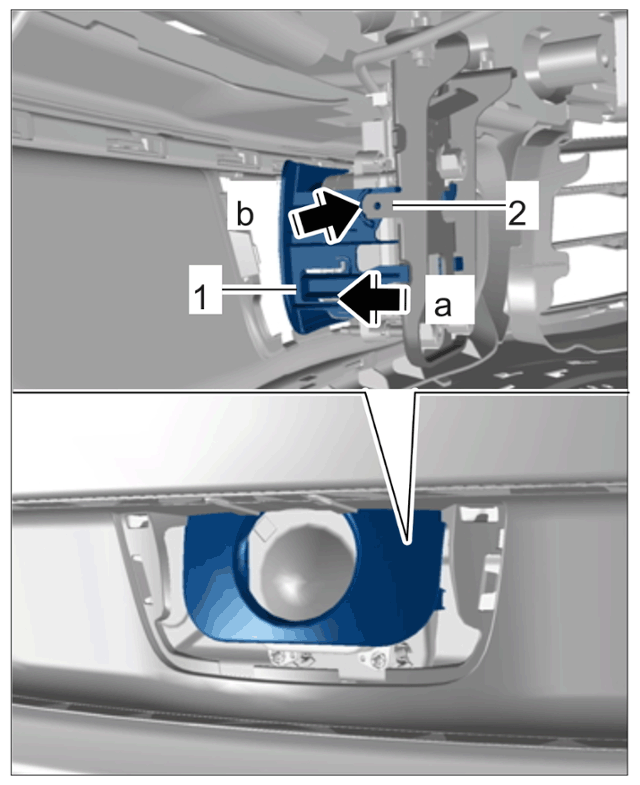

3. Remove trim cover -1  - from the distance measuring sensor control unit.
   1. 3.1 Release trim cover -1  - at the left and right -arrow a-  and swivel it up.
   2. 3.2 Disengage trim cover -1  - at the upper left and right from the holder -2  - (-arrow b-  ) and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Always comply with the regulations for handling ESD-sensitive components!

   • Always wear approved work clothes and shoes when carrying out assembly work.
   • Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
   • Do not touch electric pins and plug contacts.

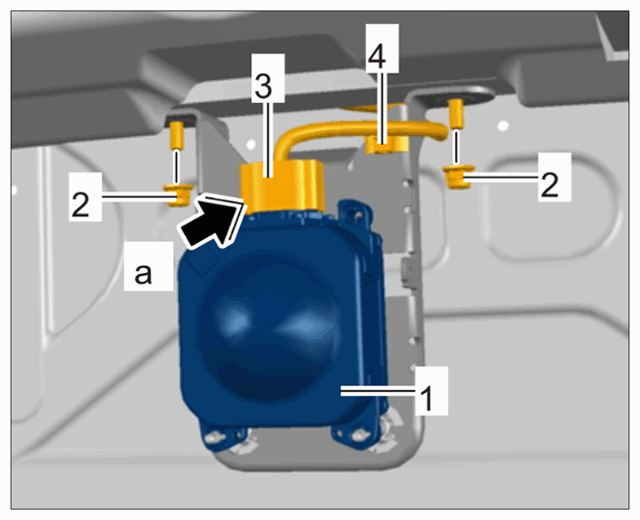

4. Remove control unit for distance measuring sensor -1  -.
   1. 4.1 Unscrew nuts -2  - and loosen control unit for distance measuring sensor and holder from the bumper reinforcement.
   2. 4.2 Release and disconnect electric plug connection -3  - (-arrow a-  ).
   3. 4.3 Loosen clip -4  - and remove control unit for distance measuring sensor -1  - with holder from the front apron.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
