Removing occupant detection control unit

Information

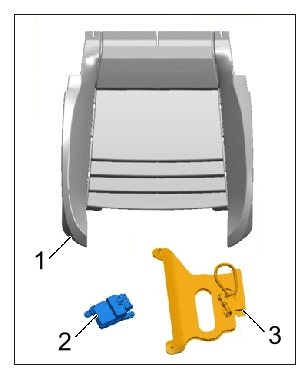

If occupant detection components (installed for country equipment USA/Canada/Mexico) are replaced, the padding -1-  , occupant detection control unit -2-  and pressure sensor mat -3-  must always be replaced  as a complete unit.

Spare parts  are available together in one repair kit  (comprising padding -1-  , occupant detection control unit -2-  and pressure sensor mat -3-  ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A mixed installation,  e.g. "old" pressure sensor mat and "new" control unit, is not permitted  .

The occupant detection control unit must not be coded  .

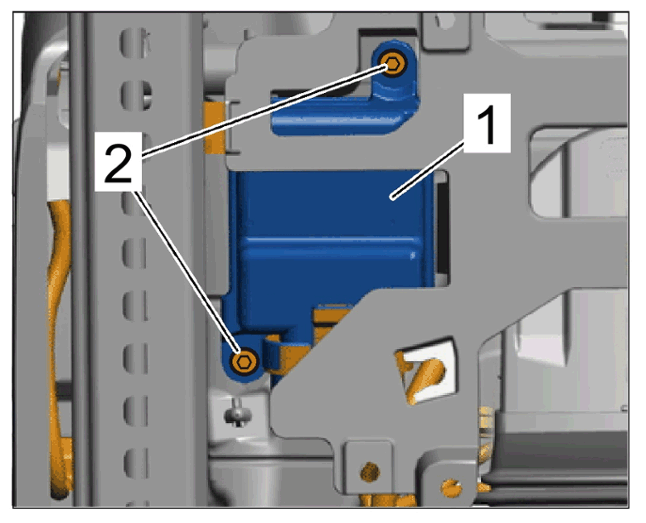

1. Unscrew screws -2-  and remove occupant detection control unit -1-  to the side.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

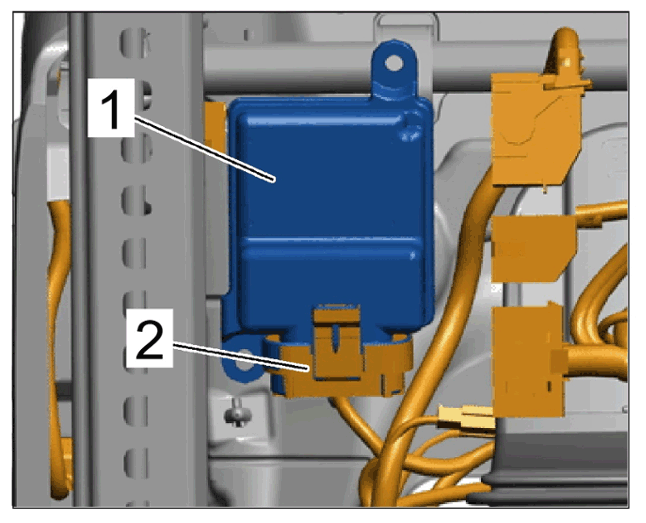

2. Release and disconnect electric plug connection -2-  on the occupant detection control unit -1-  .
3. Remove occupant detection control unit -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
