Thread On Threaded Joint For Roll-Over Bar

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

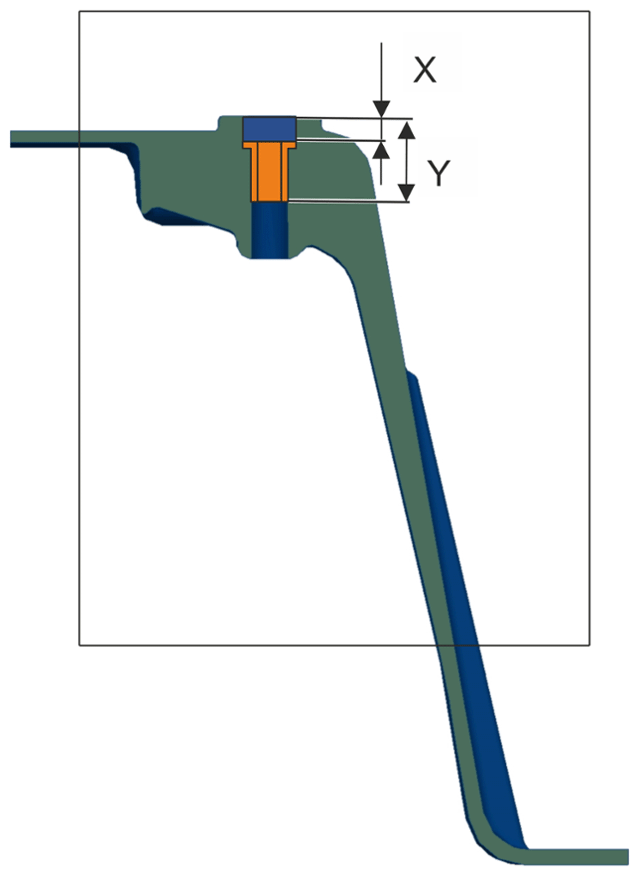

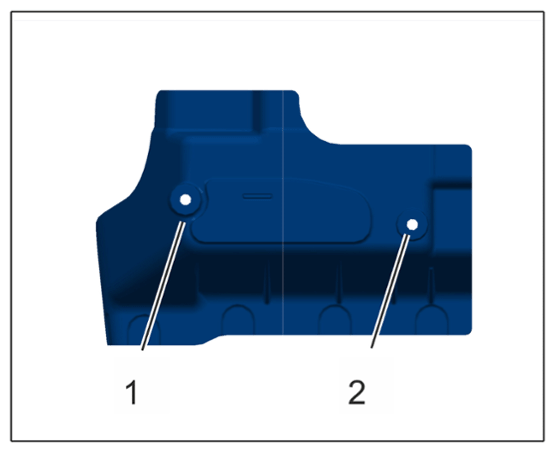

Overview of standard thread on roll-over bar

Location	Description	Type	Basic value	Tolerance
Thread 1 and 2	Dimension Y	Length	30 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on threaded joint for roll-over bar
Thread 1 and 2	Dimension X	Length	10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on threaded joint for roll-over bar

1. Repair thread

   > 5X00IN33 THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR

Use repair kit > 9394 - Time-sert thread repair kit  with threaded bush from repair kit.
