Removing The Function Monitoring Control Unit: Notes

  1. Unclip the control unit and remove it.
    1. 1.1  Unclip the control unit from the holder.

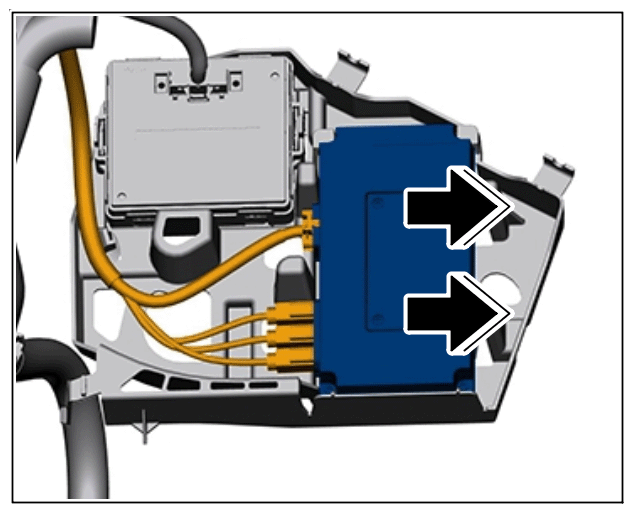

      G15566224Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Control unit

    2. 1.2  Release and pull off electric plug connection.
  2. Unclip the sub gateway and remove it.
    1. 2.1  Unclip subgateway on holder.

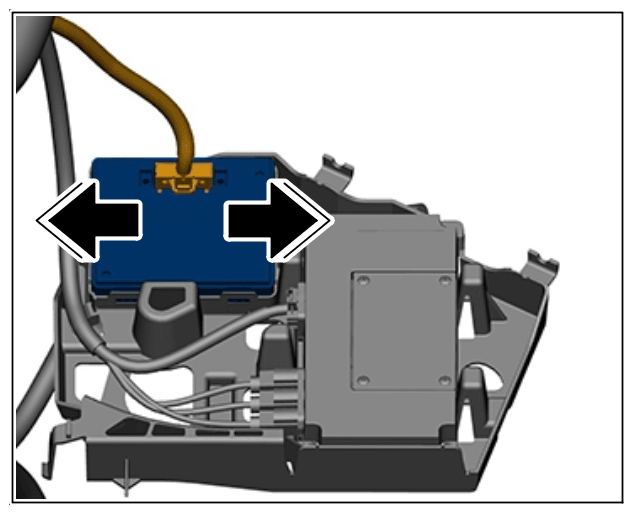

      G15566225Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Subgateway

    2. 2.2  Release and pull off electric plug connection.
