System Relay: Locations

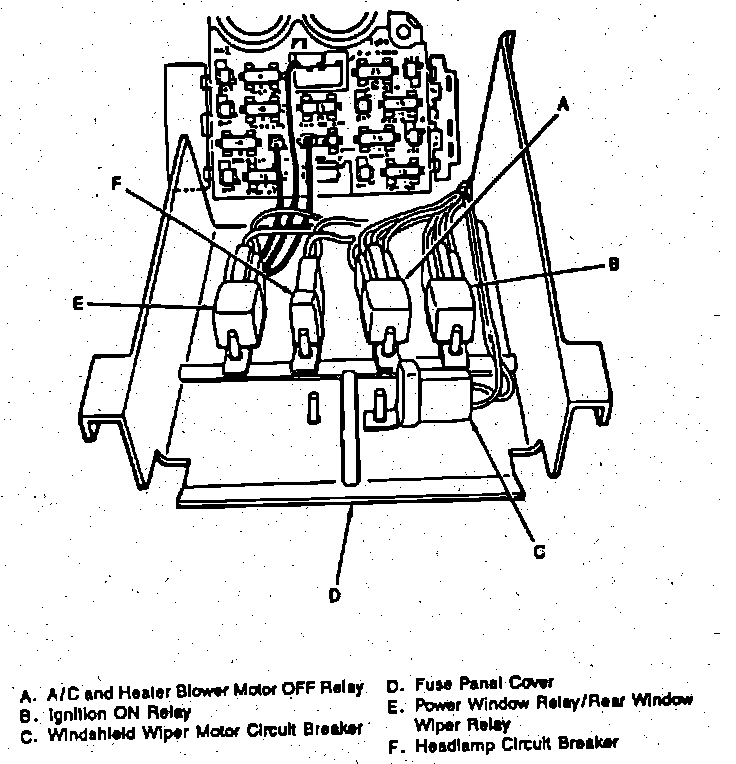

Circuit Breakers & Relays.:

Inside Fuse Panel Cover

Applicable to: Alliance & Encore
