Renault
>>
1987
>>
Fuego L4-2165cc 2.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>
Fuel Injection System Components. Fuego Turbo
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

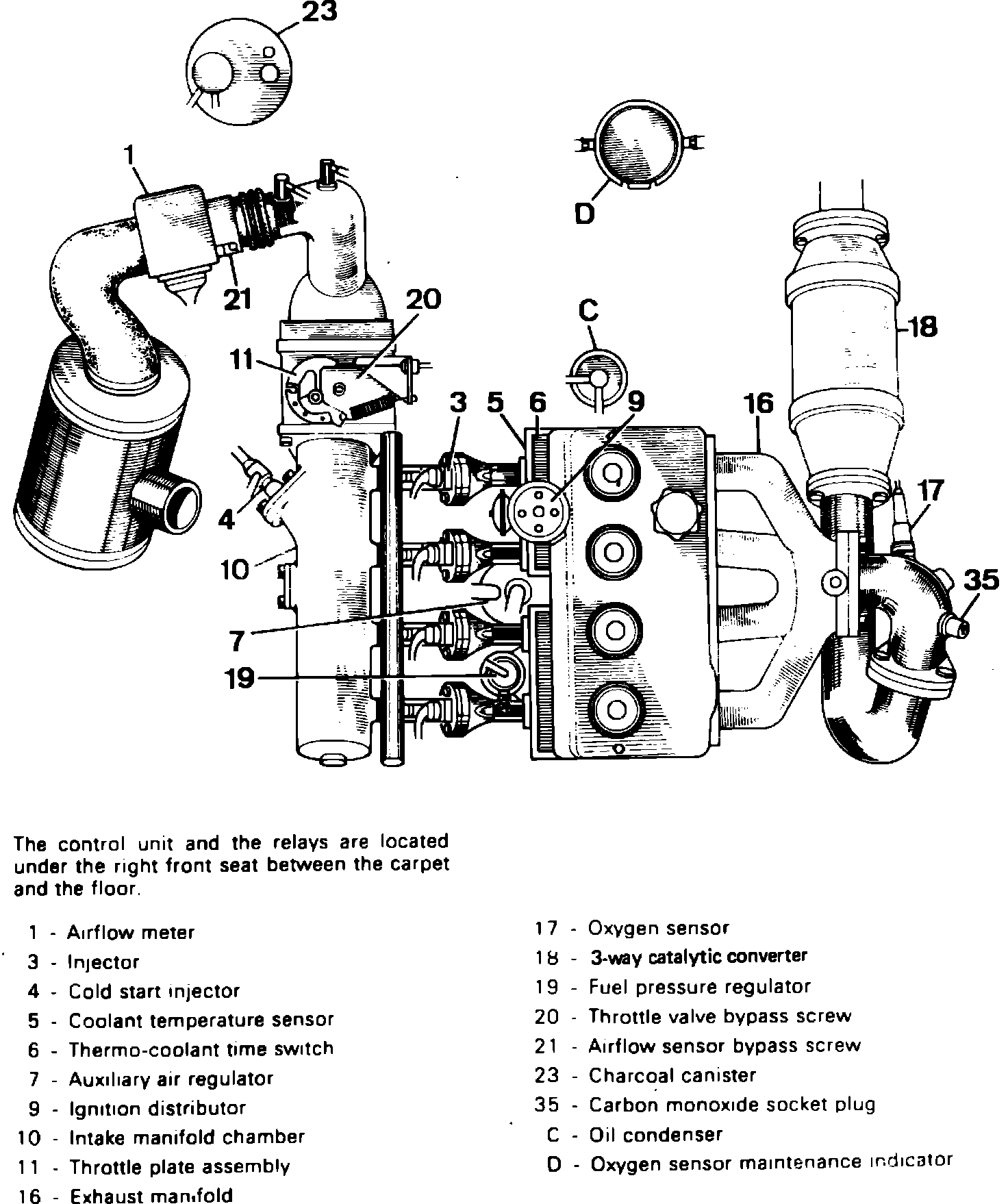

Fuel Injection System Components. Fuego Turbo
Fig. 1 Fuel injection system components.:
