Central Locking System - Service Kit
86saab02FILE IN S.I. Man VOL. I
SEC. A-8 PG. 96
Service Information
SUBJECT: SERVICE KIT FOR CENTRAL ISSUE: 07/86-860 LOCKING SYSTEM
APPLICATION: M82-83 900 MODELS EQUIPPED WITH CENTRAL LOCKING

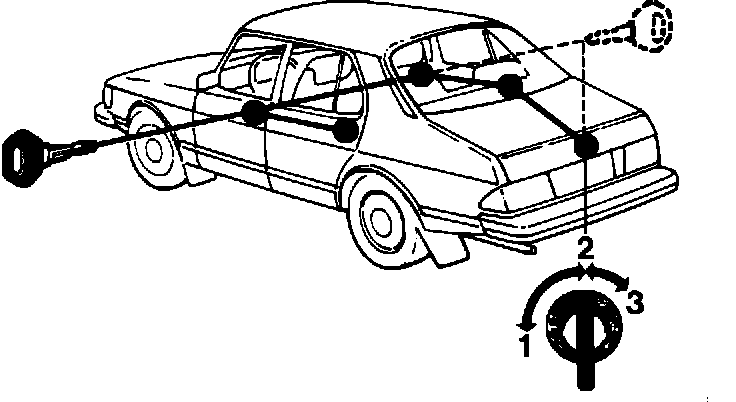

A service kit is now available to upgrade the central lock systems of 1982-83 900 models (3 door, 4 door). The service kit moves the electronic control unit from the door and provides the means to locate a new control unit (contained in kit) under the dash. The service kit could be installed if repairs are being made to the system.
Central Locking Service Kit P/N 85-47-259
Moving the control unit into the car interior eliminates the chance of moisture getting into the circuits.
The service kit contains all items (wiring, control unit, mounting hardware, driver's door switch necessary to make the conversion Complete installation instructions are included with the kit.
