Ignition, Basic Function

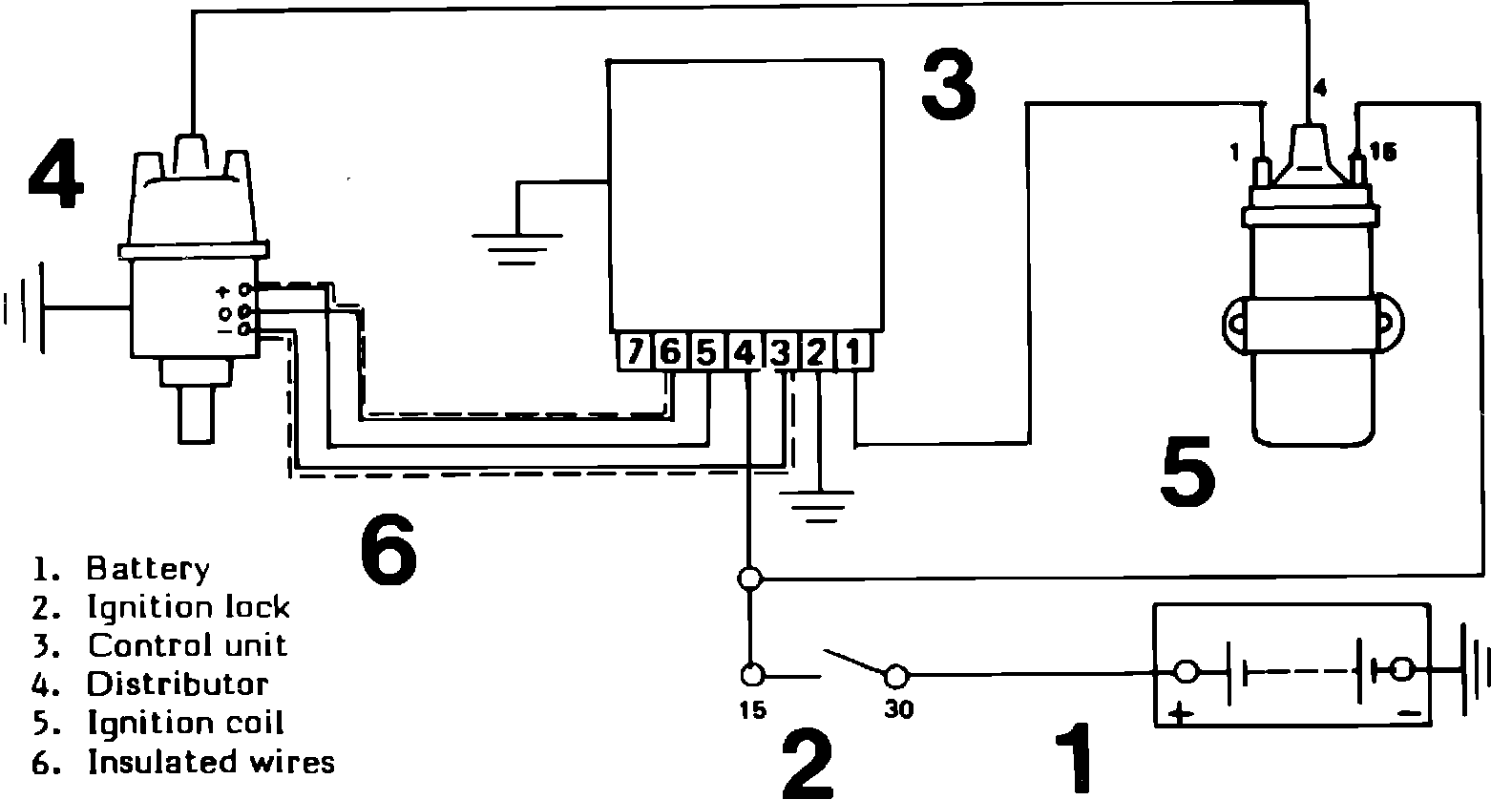

Fig. 3 Breakerless ignition system wiring circuit.:

The electronic ignition system, Fig. 3, uses a Hall effect switch to generate a pulse signal. The Hall switch is connected to a control unit that converts and amplifies the Hall signal. The control unit controls the coil.
