Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

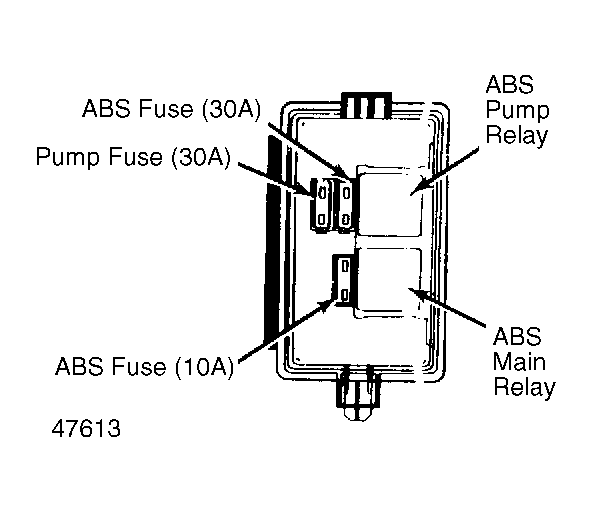

| ABS Brake System Fuses |
On center of firewall, behind bulkhead. See Figure
. |

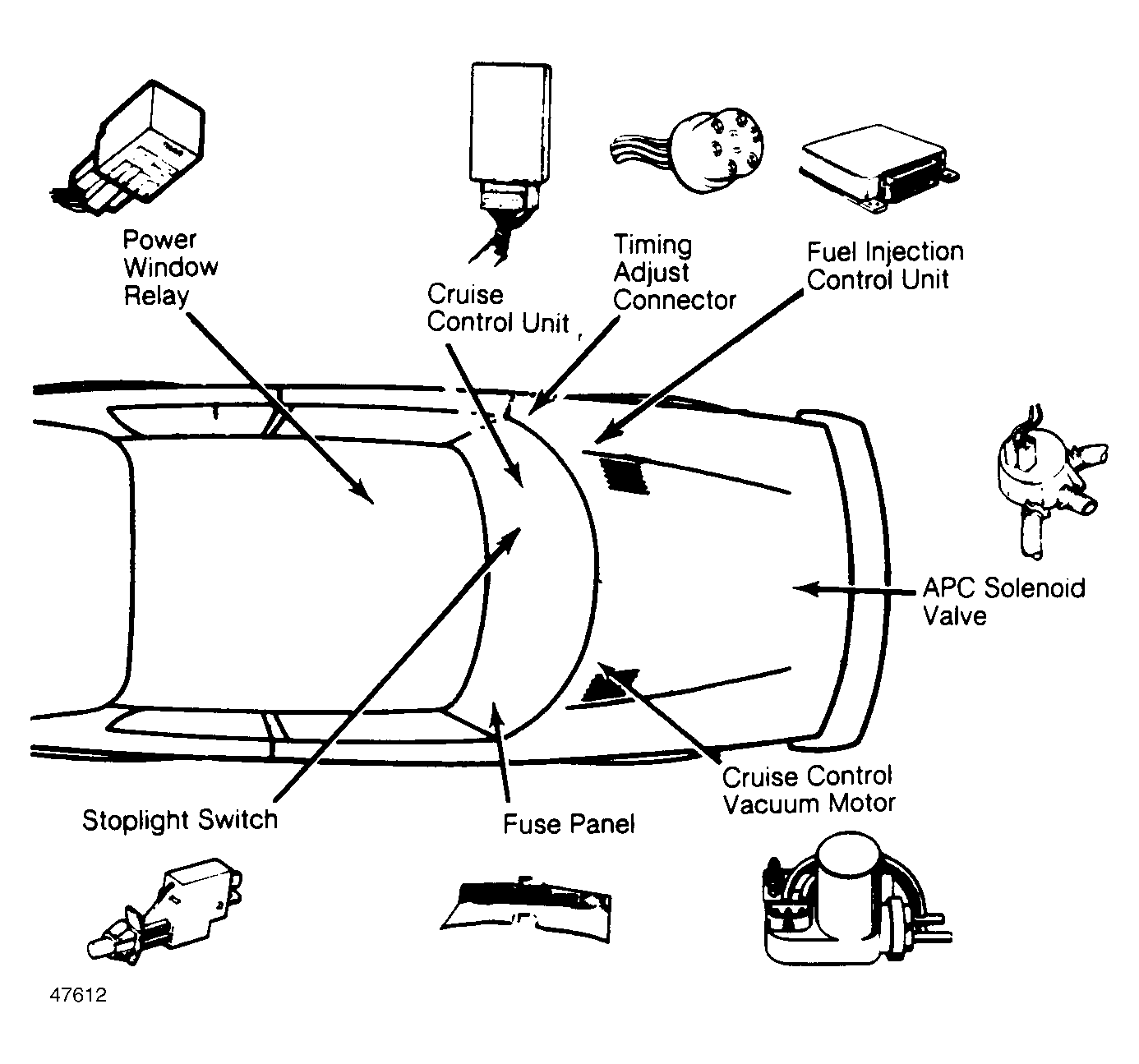

| Fuse Panel |
In glove box. See Figure
. |
| Headlight Wiper Overload Circuit Breaker |
Part of headlight wiper motor. |

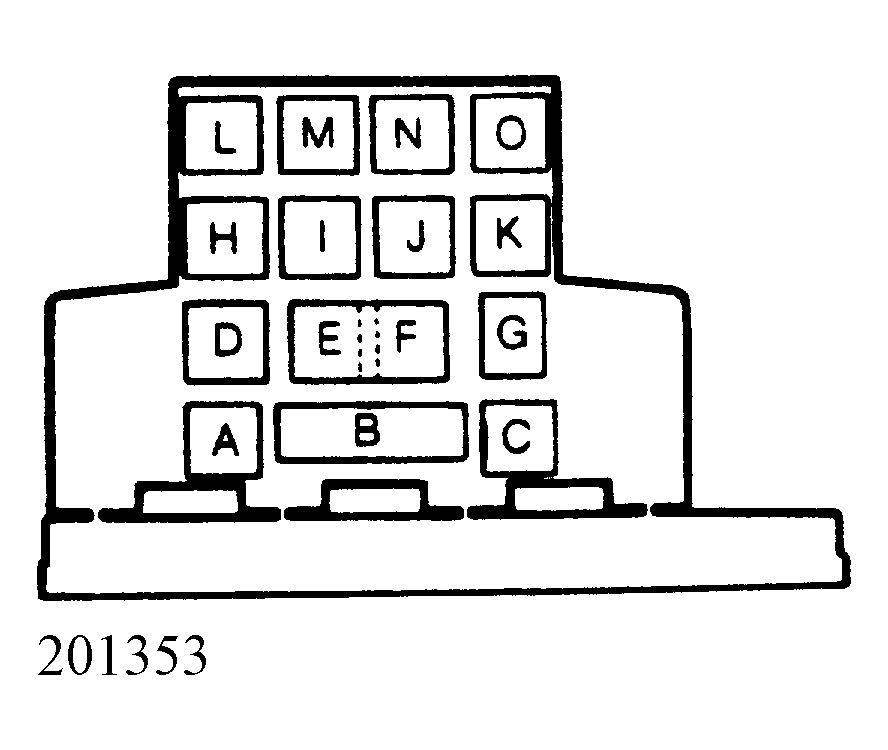

| Relay Panel |
Behind fuse panel, in glove box. See Figure
. |
