Fuel Evaporation System: Description

The fuel evaporation system is designed to prevent fuel vapor from reaching the atmosphere. System includes a plastic fuel tank, vacuum relief filler cap, roll-over valve, check valve, charcoal canister, and connecting lines and hoses.

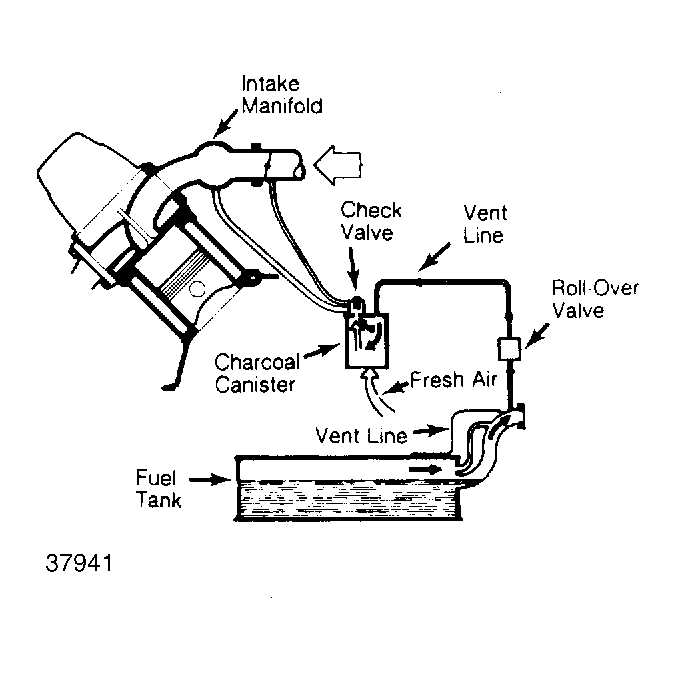

Fig 1: Fuel Evaporation System (900, 900S & 900 Turbo)
G37941Courtesy of SAAB-SCANIA OF AMERICA, INC.
