Control Units

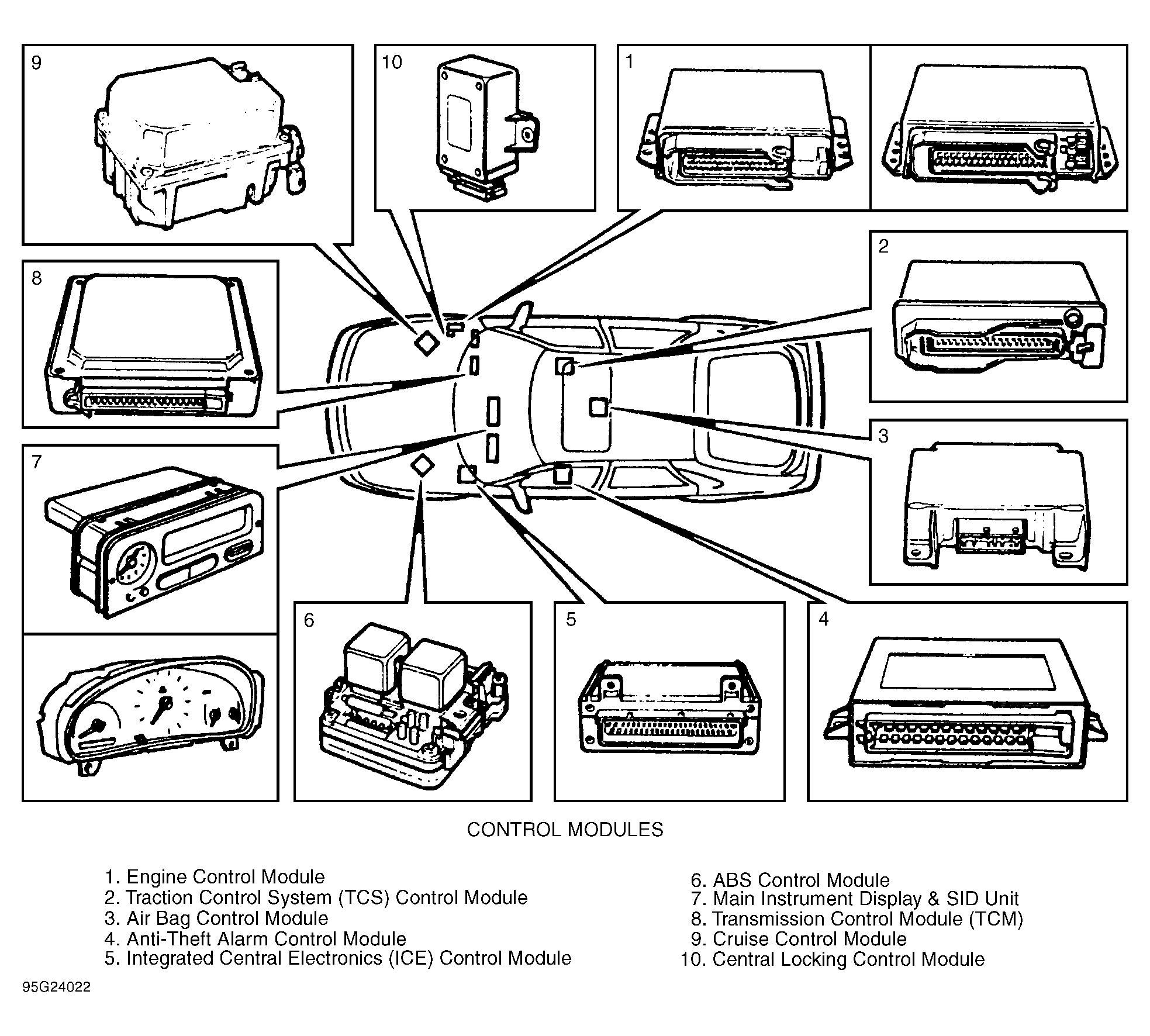

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Left side of engine compartment. See Figure. |
| Air Bag Control Module | Behind dash, under left speaker grille. See Figure. |
| Anti-Theft Alarm Control Module | Under left front seat. See Figure. |
| Central Locking Control Module | Behind right side of dash. See Figure. |
| Convertible Top Control Module | Above left rear wheel housing. |
| Cruise Control Module | Under left side of dash, behind knee bolster. See Figure. |
| Engine Control Module | Right side below the A-pillar. See Figure. |
| Ignition Discharge Module (Trionic) | On valve cover. |
| Integrated Central Electronics (ICE) Control Module | Mounted on top of relay holder, under left side of dash, near steering column. See Figure. |
| Traction Control System (TCS) Control Module | Under passenger seat. See Figure. |
| Trans. Control Module (TCM) | Behind right side dash, behind glove box. See Figure. |
