Data Link Connector

DLC connector is located under the left side of instrument panel. See Fig 1 .

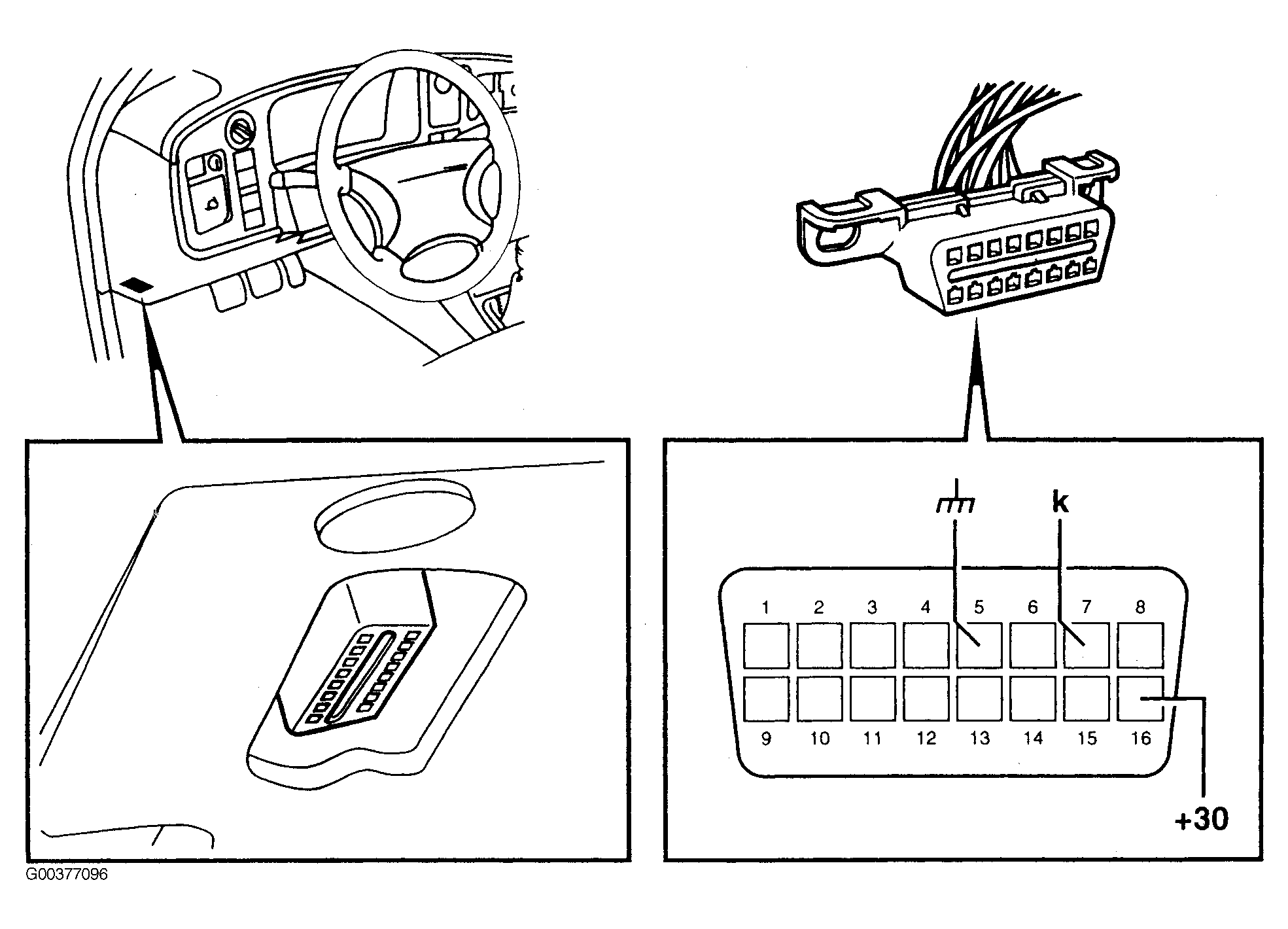

Fig 1: Locating Data Link Connector
G00377096Courtesy of SAAB-SCANIA OF AMERICA, INC.
