Removal - Front (V6)

  1. Remove the engine cover.
  2. Remove the ignition discharge module. See Fig 1 .
  3. Unplug the ignition discharge module connector.

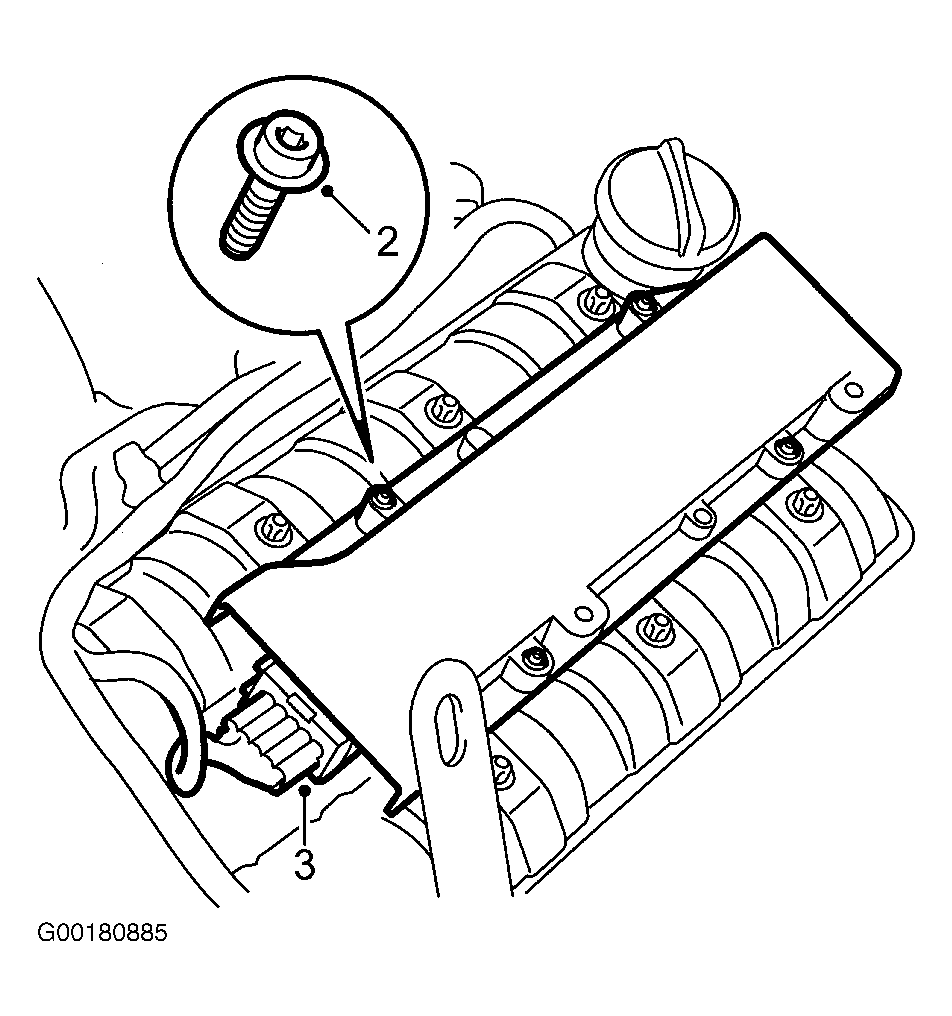

Fig 1: Removing Front Ignition Discharge Module (V6)
G00180885Courtesy of SAAB-SCANIA OF AMERICA, INC.
