DTC P0303: Cylinder 3 Misfire Detected: Notes

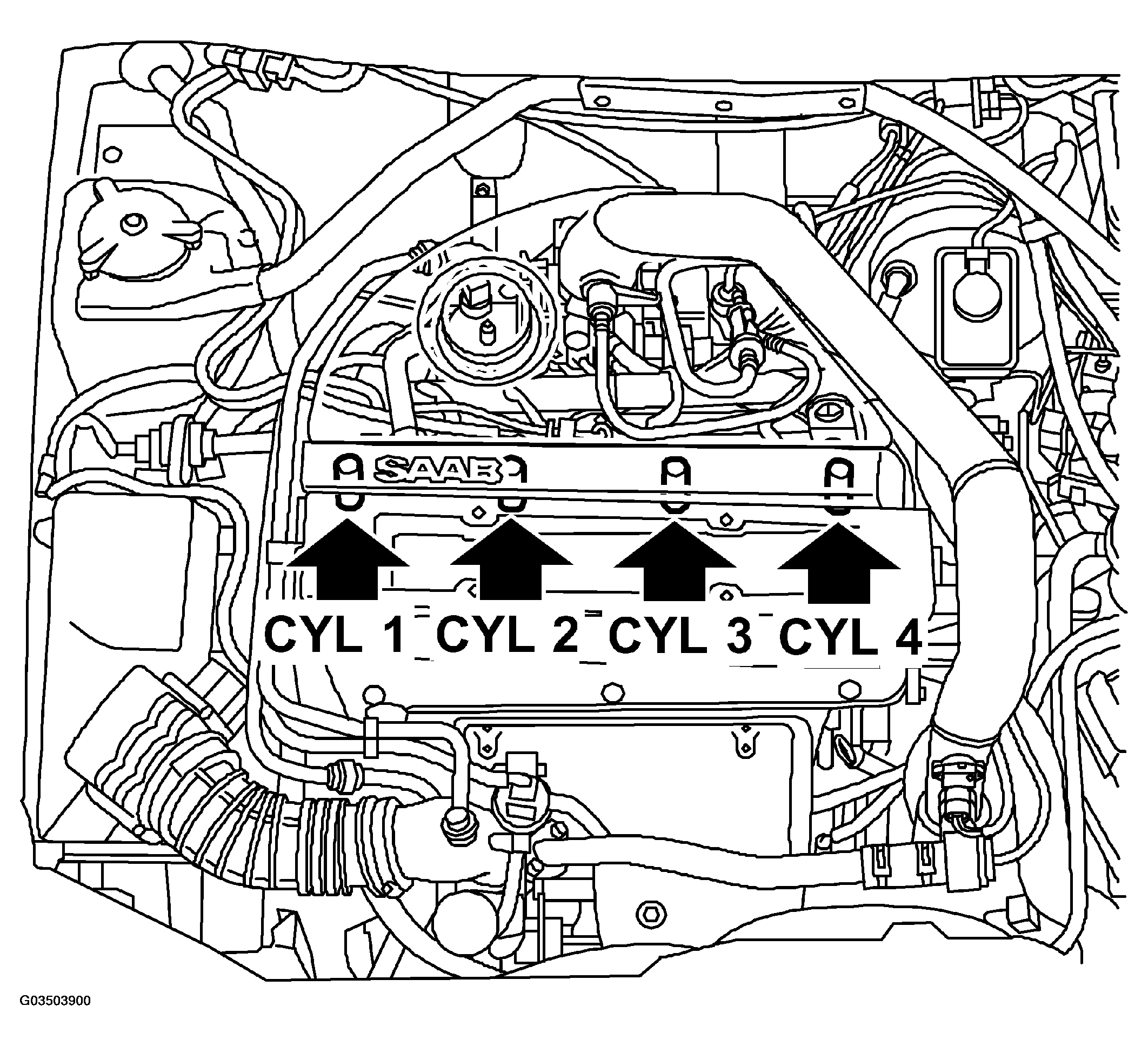

Fig 1: Identifying Cylinders
G03503900Courtesy of SAAB-SCANIA OF AMERICA, INC.

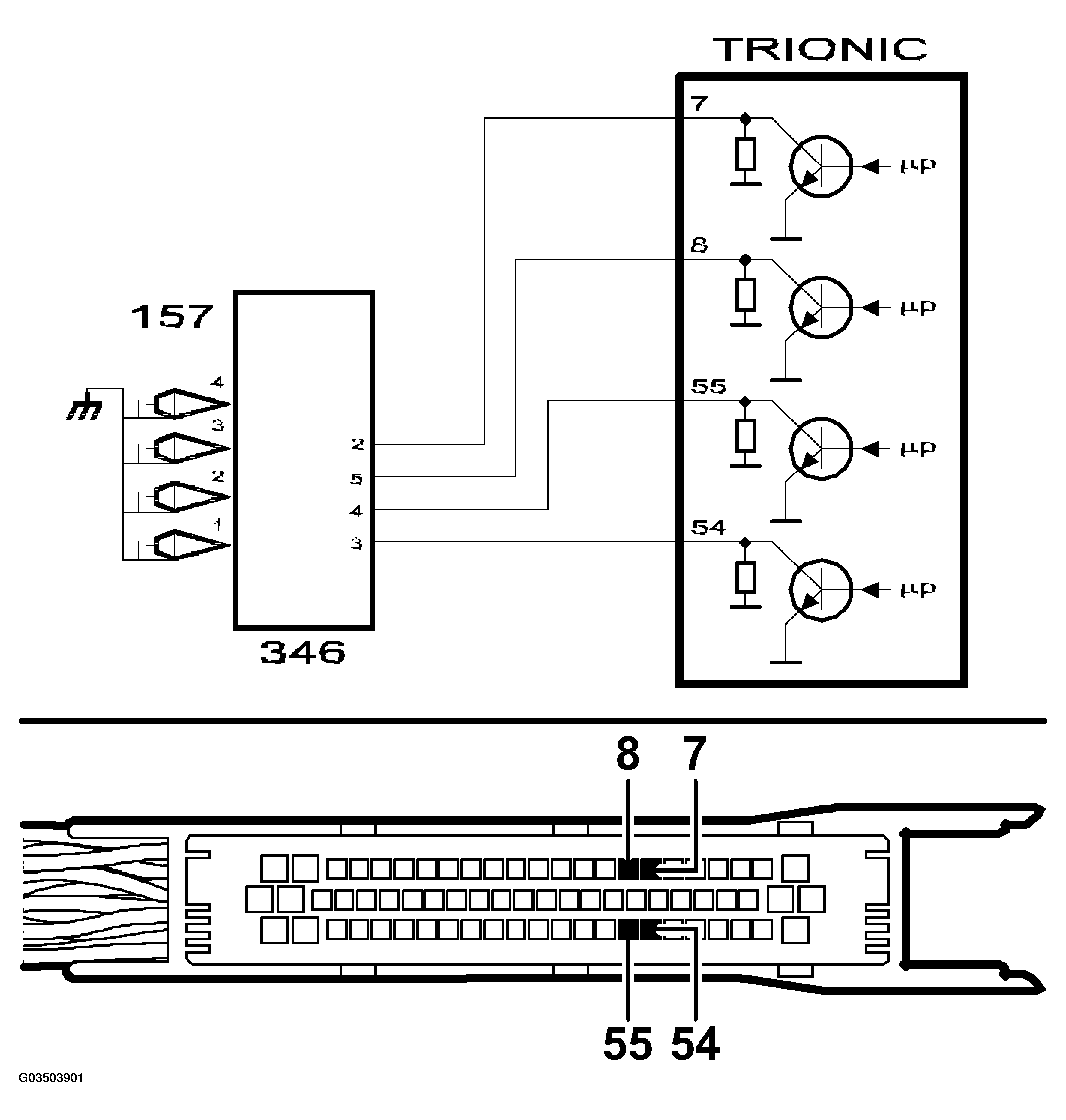

Fig 2: Circuit Diagram - Cylinder 3 Misfire Detected
G03503901Courtesy of SAAB-SCANIA OF AMERICA, INC.
