DTC P0304: Cylinder 4 Misfire Detected: Notes

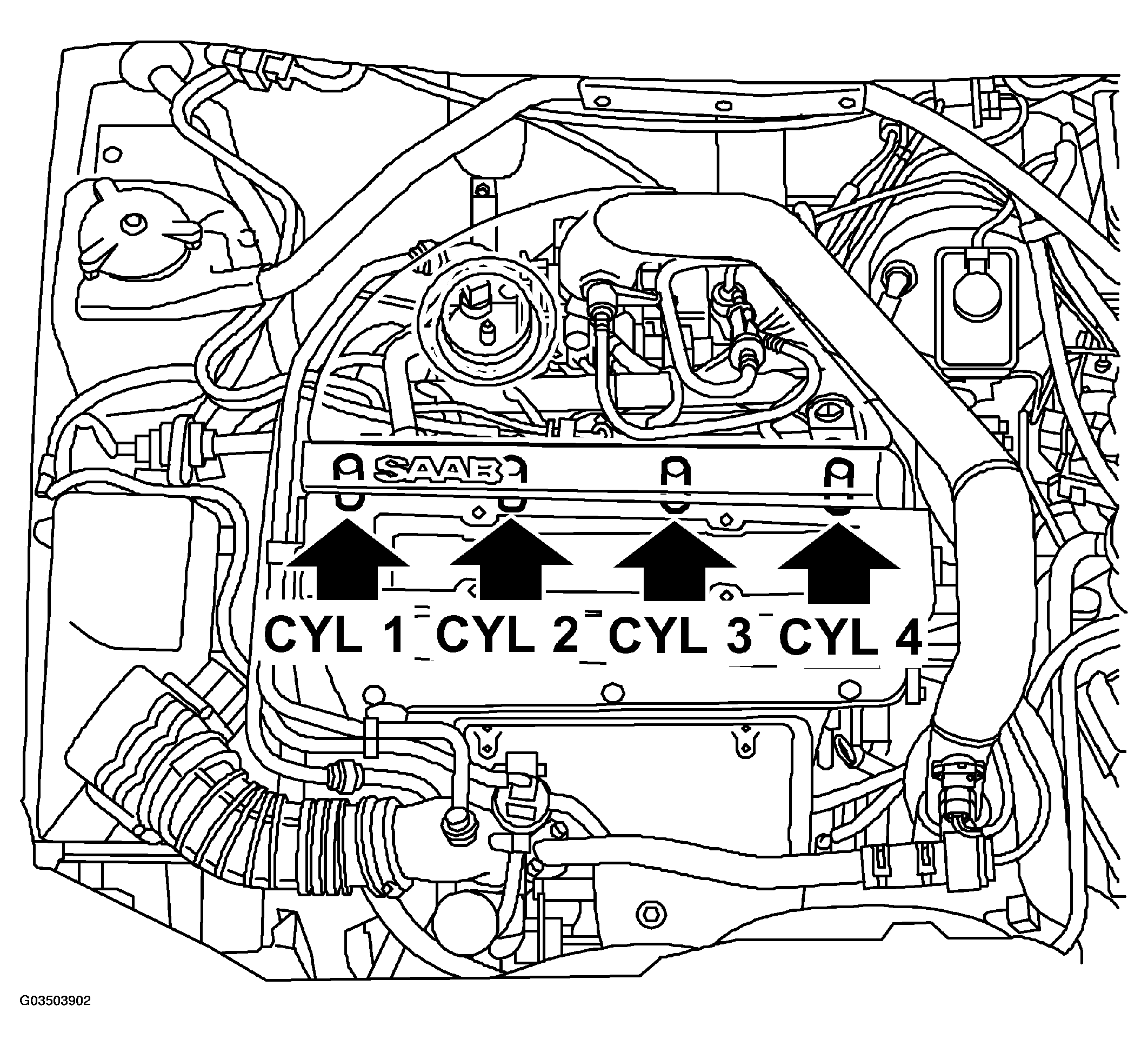

Fig 1: Identifying Cylinders
G03503902Courtesy of SAAB-SCANIA OF AMERICA, INC.

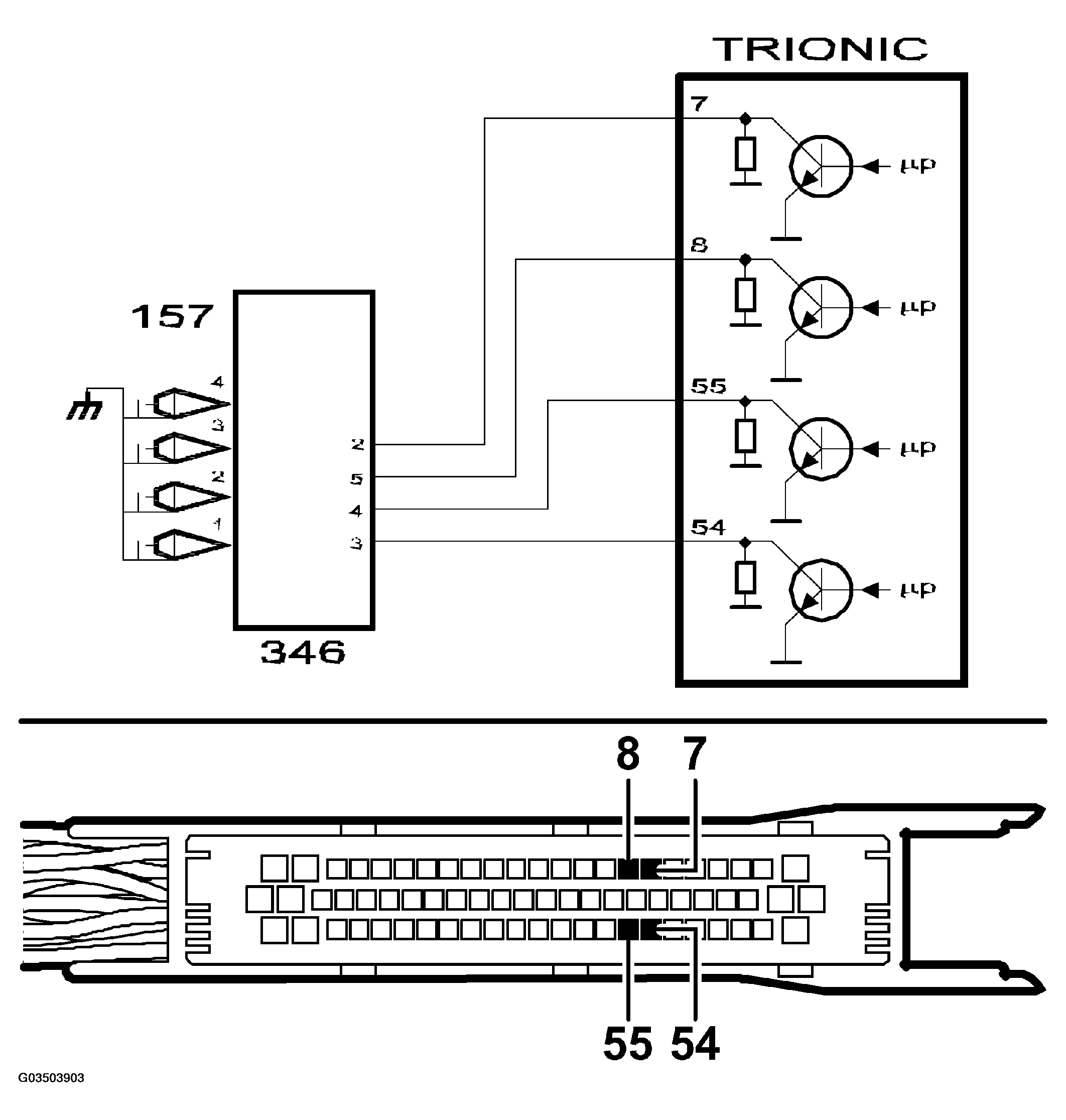

Fig 2: Circuit Diagram - Cylinder 4 Misfire Detected
G03503903Courtesy of SAAB-SCANIA OF AMERICA, INC.
