Component Location

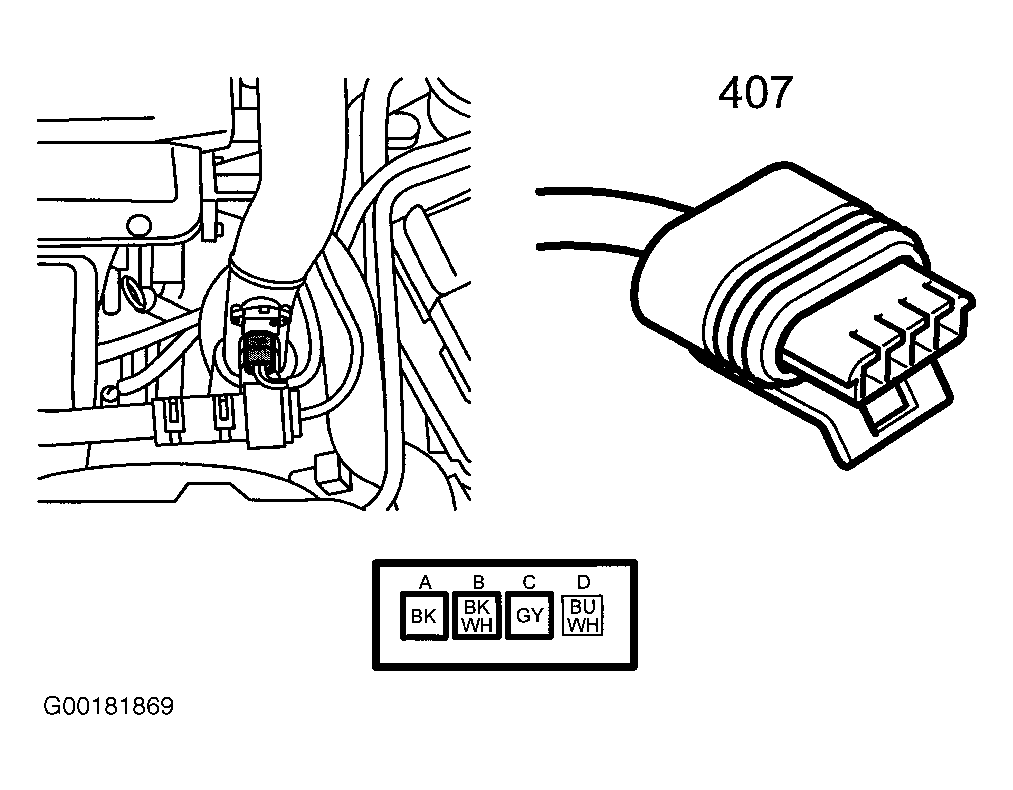

Fig 1: Temperature Sensor, Intake Air (9-3 - T7)

G00181869

Courtesy of SAAB-SCANIA OF AMERICA, INC.

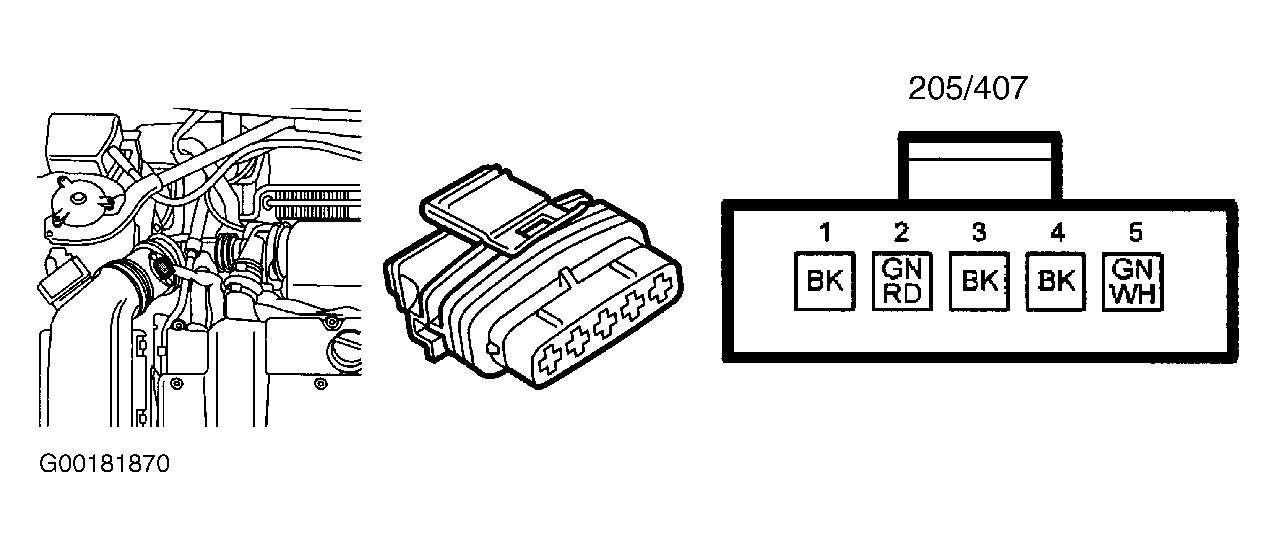

Fig 2: Temperature Sensor, Intake Air (9-3 - EDC15)

G00181870

Courtesy of SAAB-SCANIA OF AMERICA, INC.

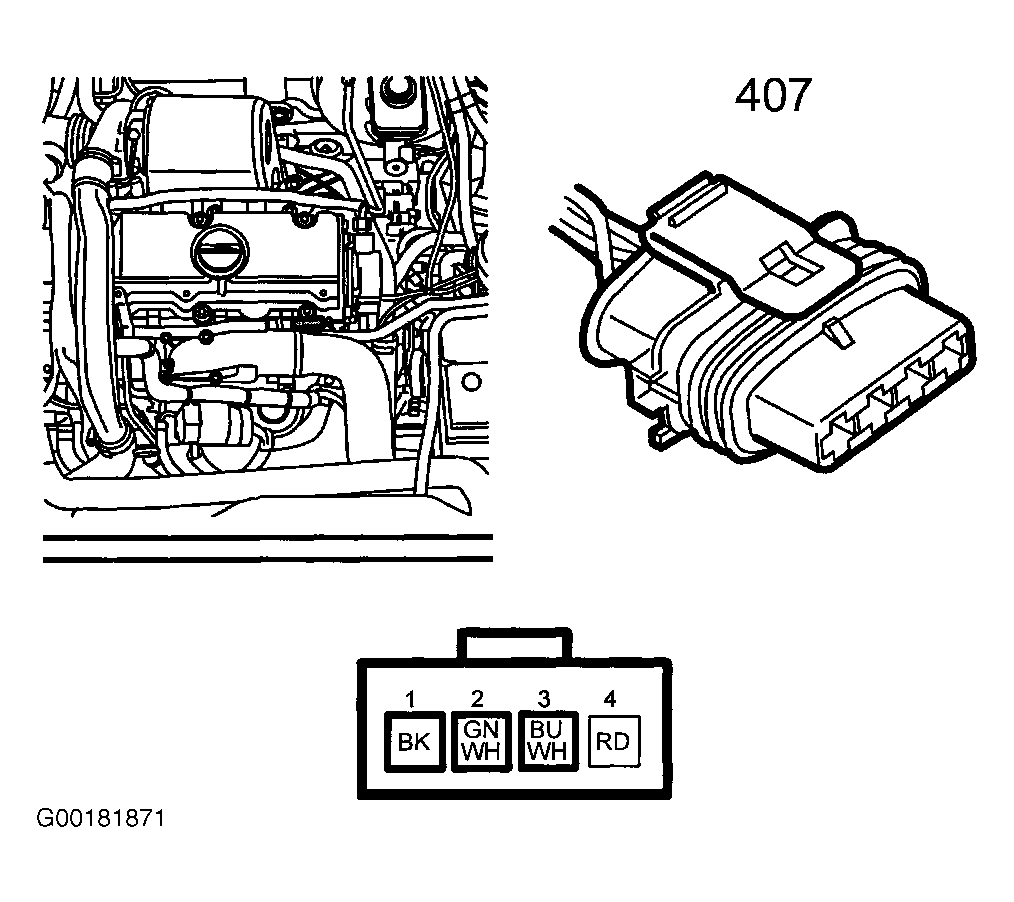

Fig 3: Temperature Sensor, Intake Air (9-3 - PSG16)

G00181871

Courtesy of SAAB-SCANIA OF AMERICA, INC.

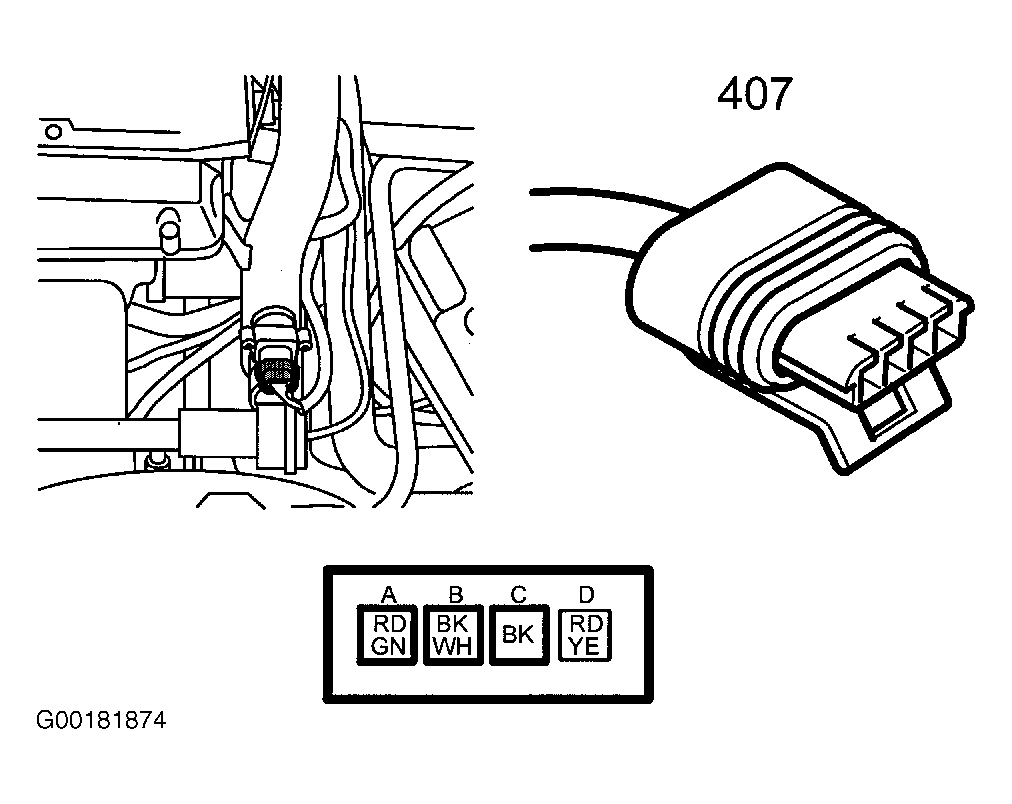

Fig 4: Temperature Sensor, Intake Air (9-5 - 4-Cyl)

G00181874

Courtesy of SAAB-SCANIA OF AMERICA, INC.

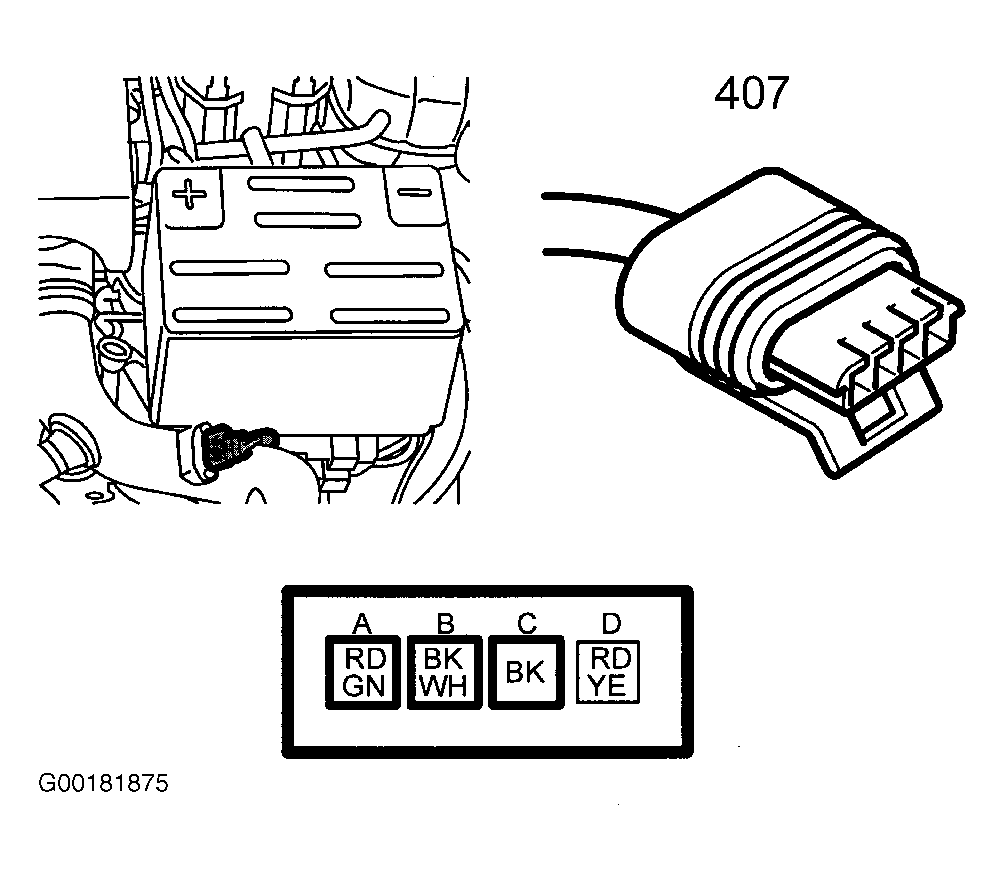

Fig 5: Temperature Sensor, Intake Air (9-5 - V6)

G00181875

Courtesy of SAAB-SCANIA OF AMERICA, INC.

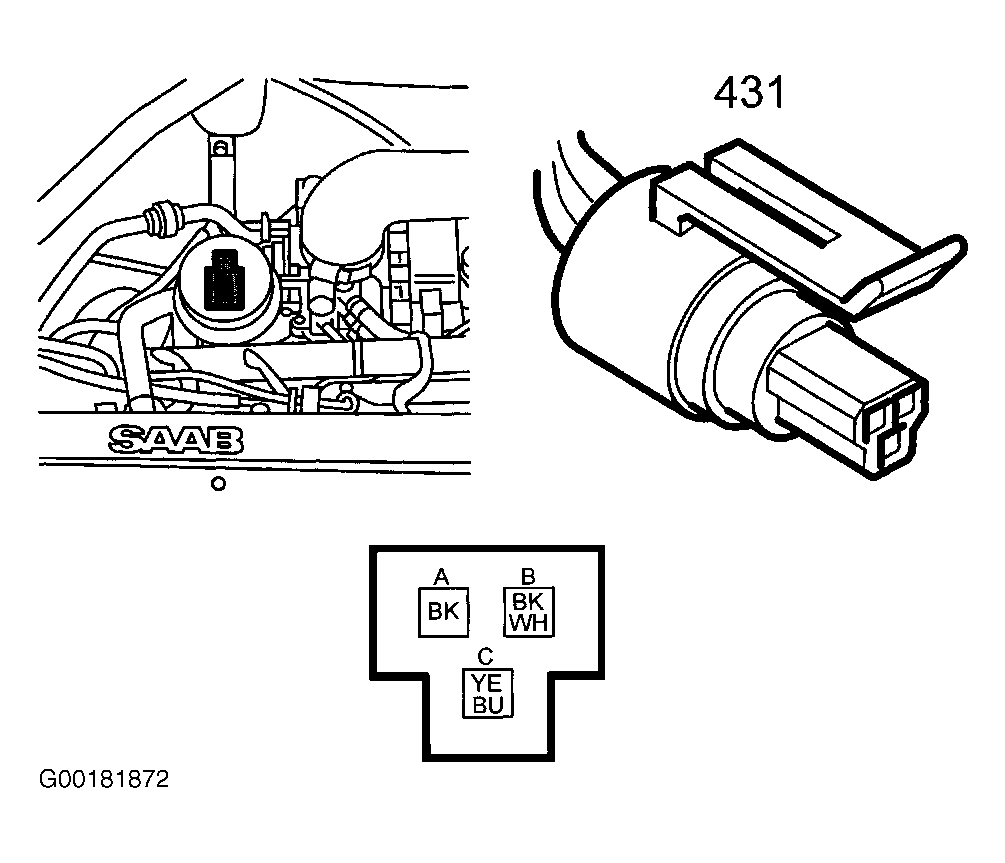

Fig 6: Pressure Sensor, Intake Manifold (9-3 - T7)

G00181872

Courtesy of SAAB-SCANIA OF AMERICA, INC.

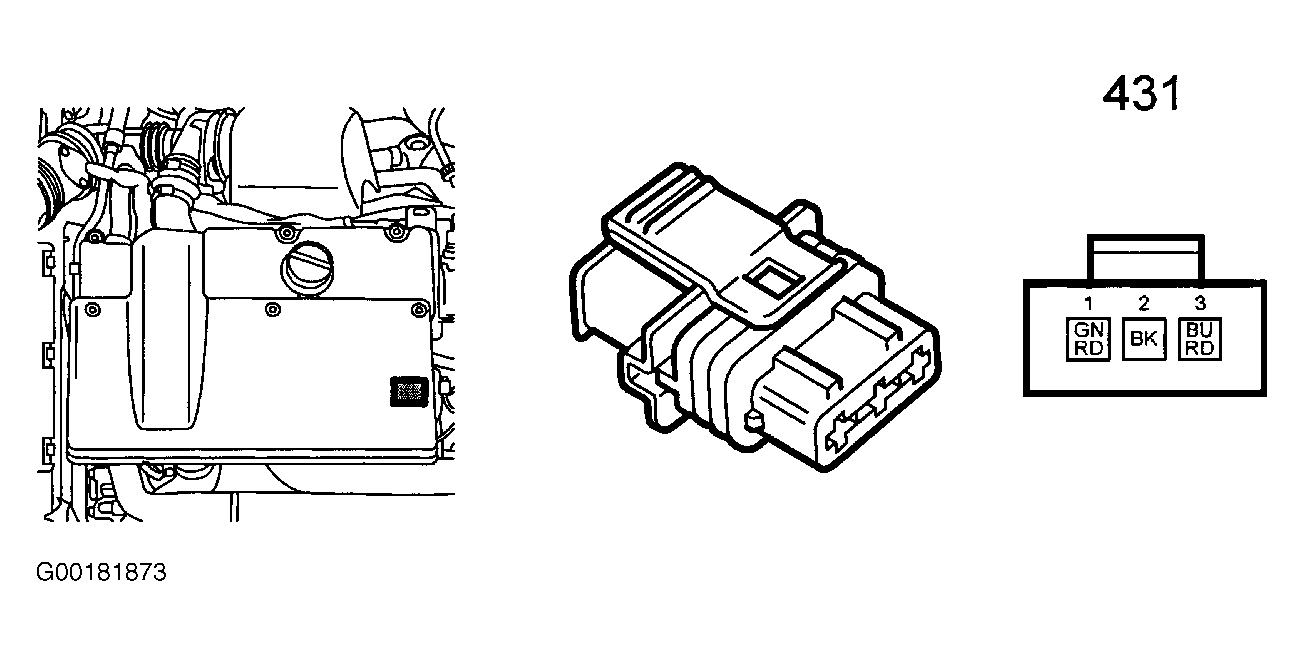

Fig 7: Pressure Sensor, Intake Manifold (9-3 - PSG16)

G00181873

Courtesy of SAAB-SCANIA OF AMERICA, INC.

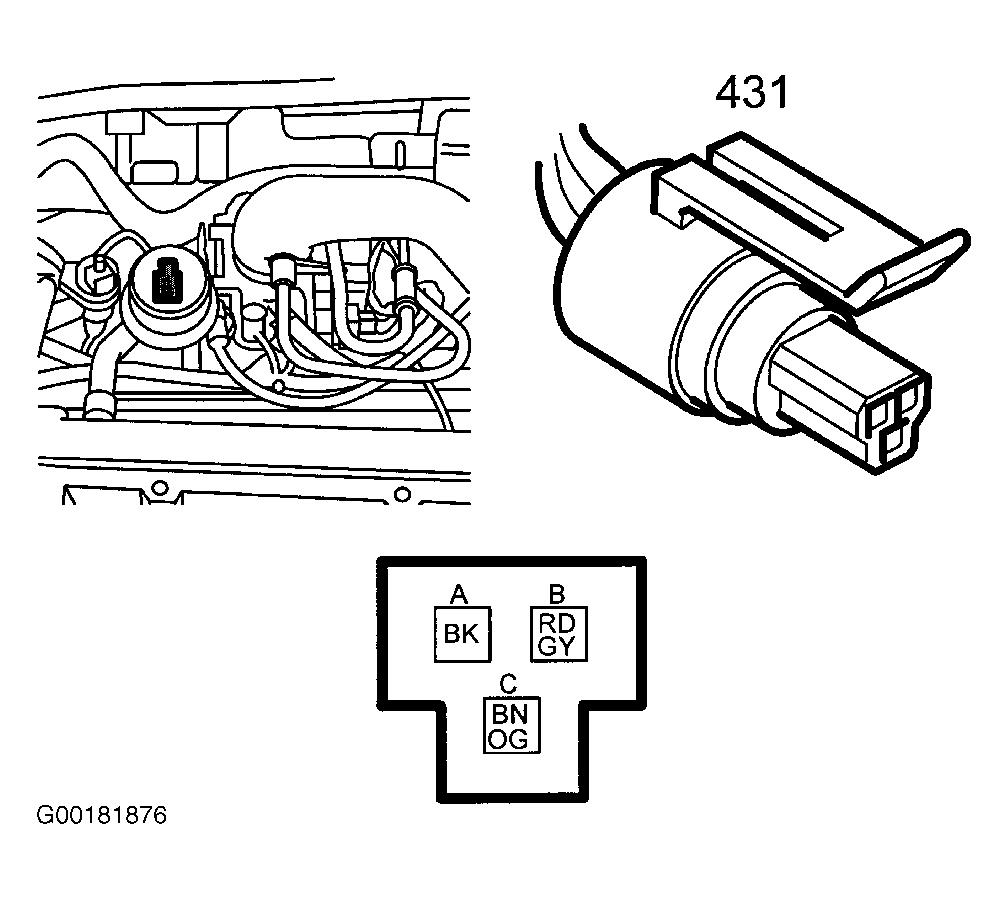

Fig 8: Pressure Sensor, Intake Manifold (9-5 - 4-Cyl)

G00181876

Courtesy of SAAB-SCANIA OF AMERICA, INC.

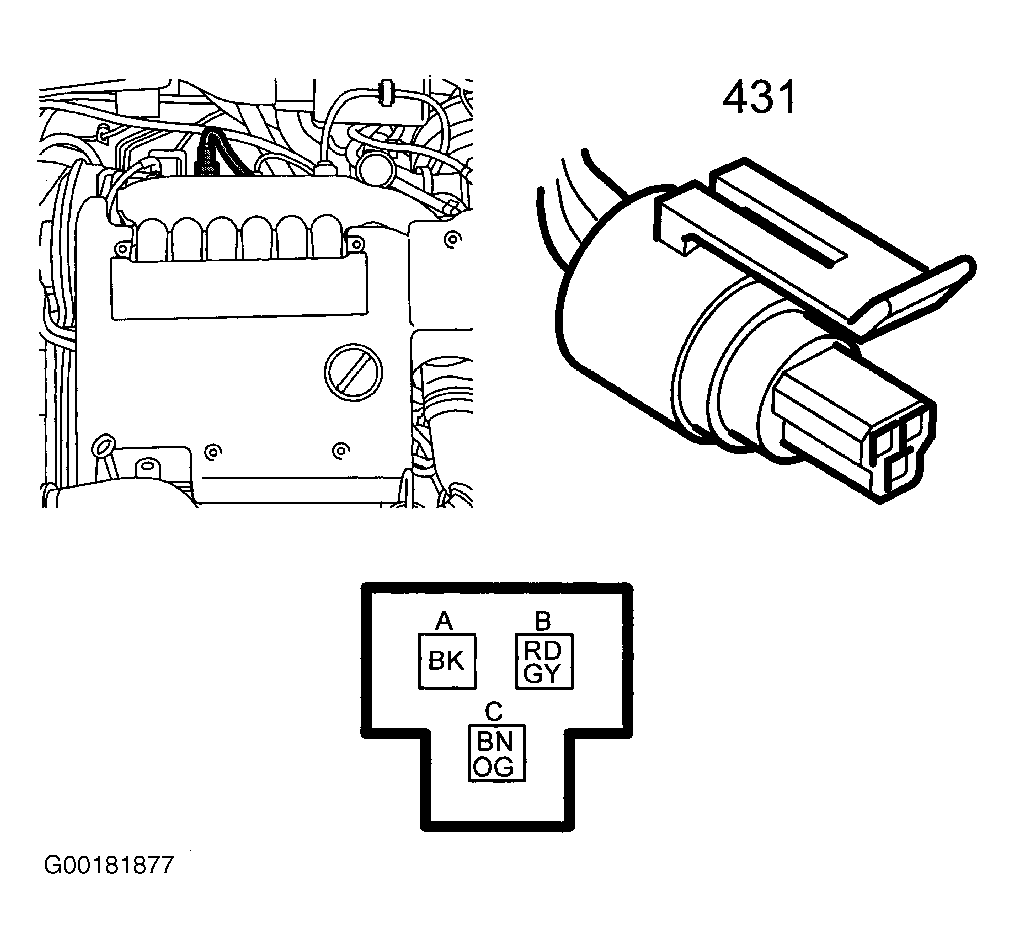

Fig 9: Pressure Sensor, Intake Manifold (9-5 - V6)

G00181877

Courtesy of SAAB-SCANIA OF AMERICA, INC.

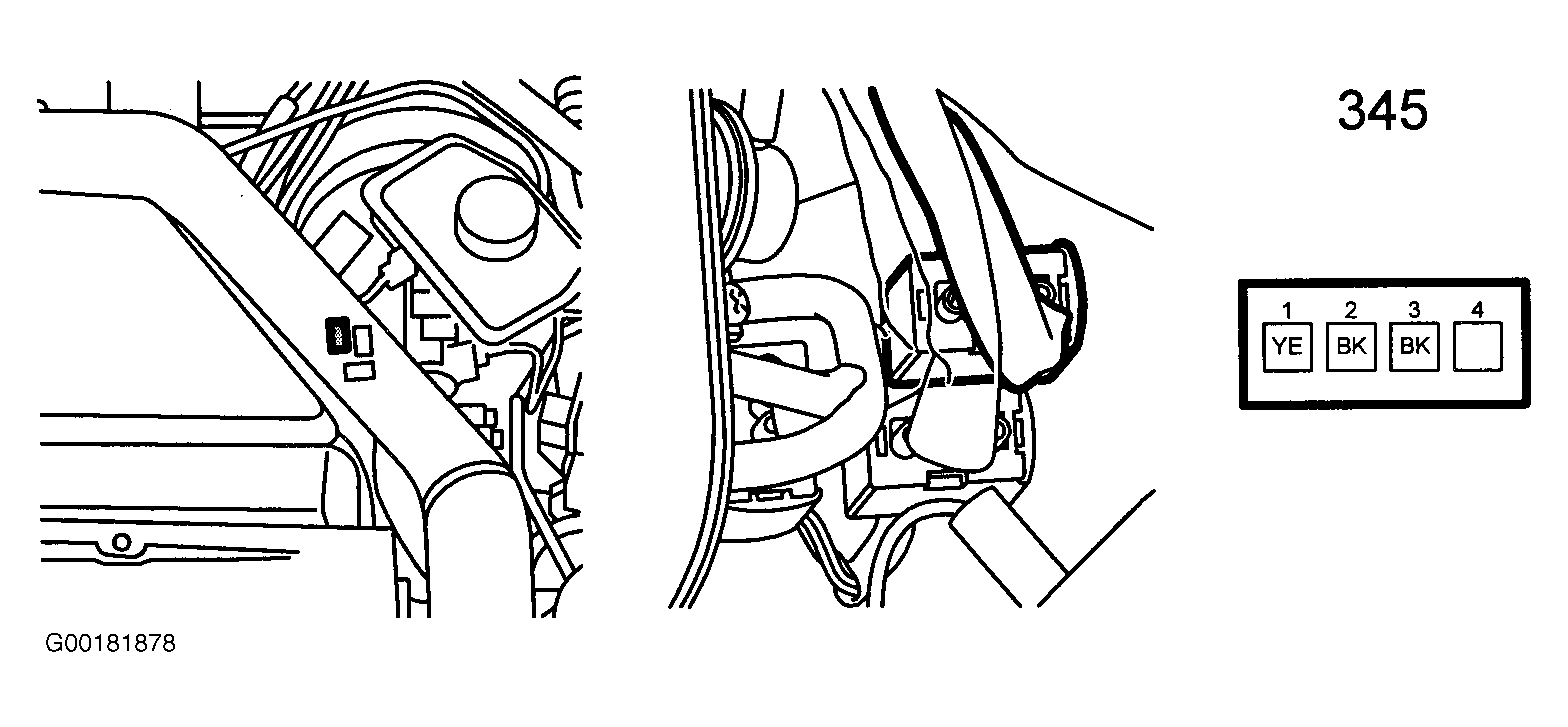

Fig 10: Position Sensor, Crankshaft (9-3 - T7)

G00181878

Courtesy of SAAB-SCANIA OF AMERICA, INC.

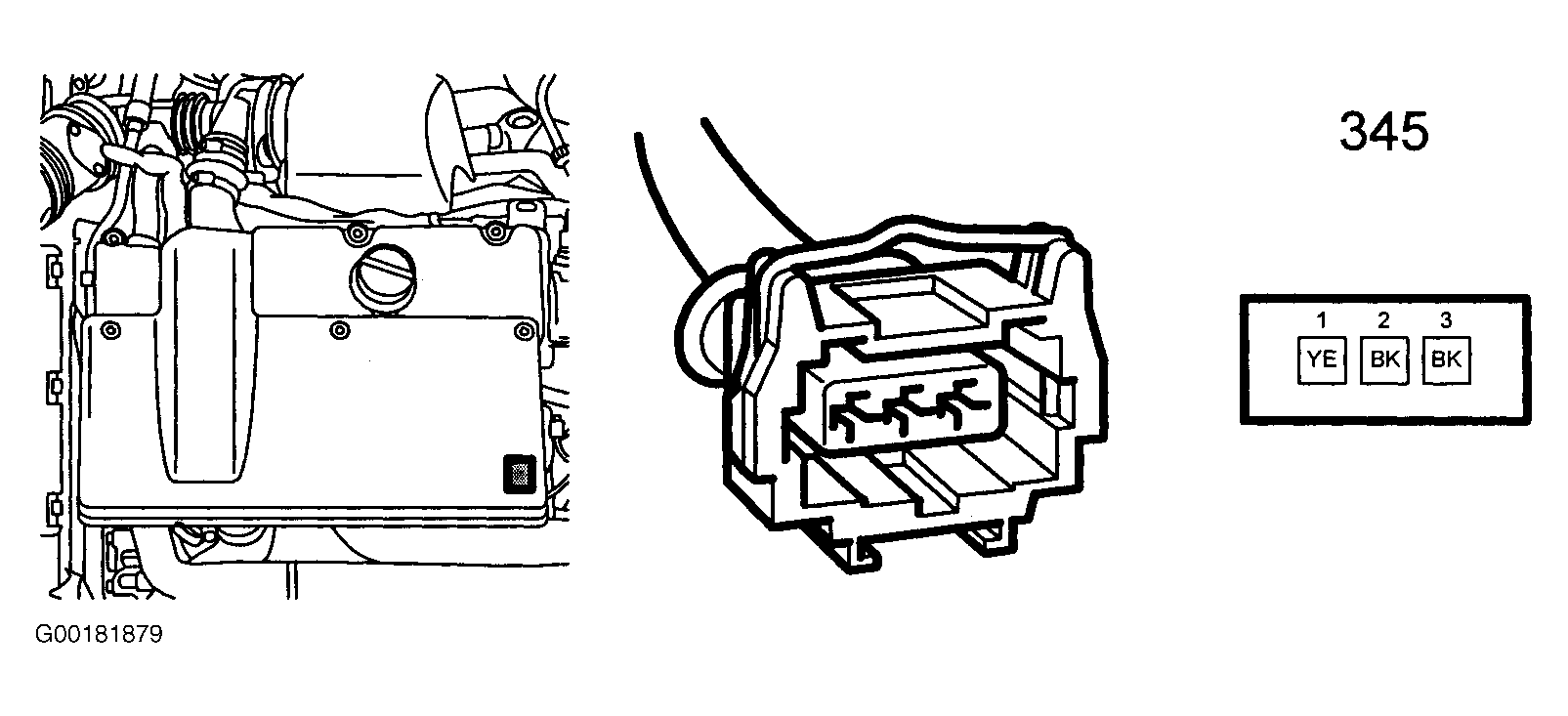

Fig 11: Position Sensor, Crankshaft (9-3 - EDC15)

G00181879

Courtesy of SAAB-SCANIA OF AMERICA, INC.

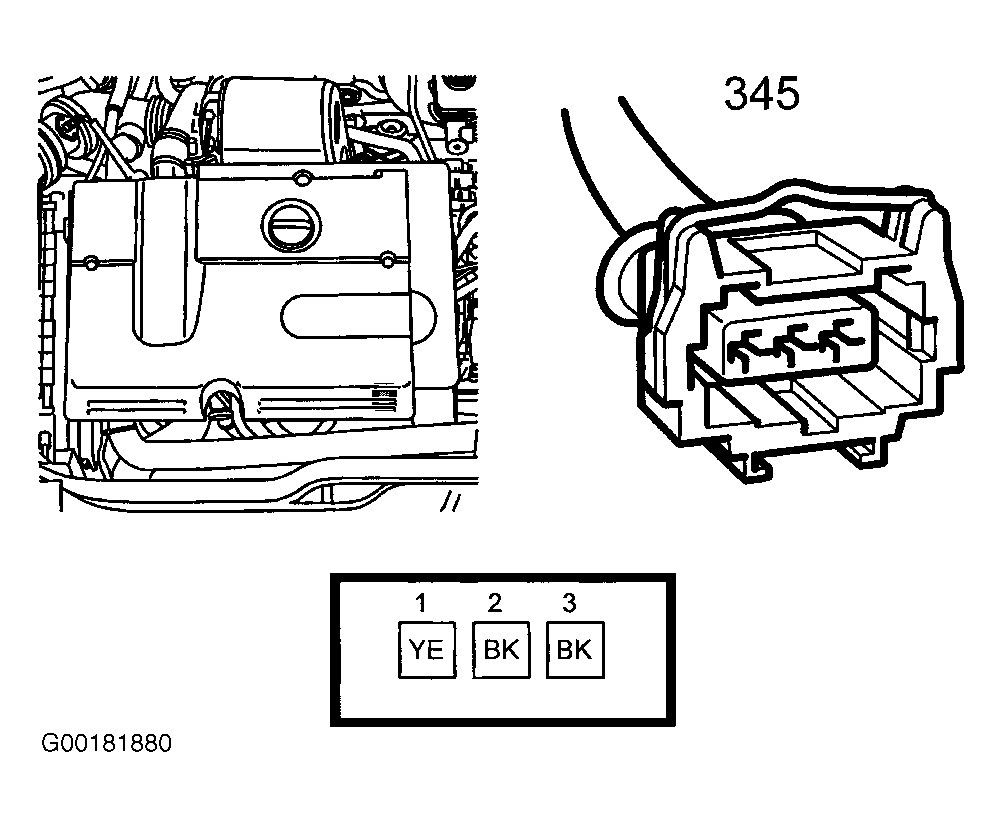

Fig 12: Position Sensor, Crankshaft (9-3 - PSG16)

G00181880

Courtesy of SAAB-SCANIA OF AMERICA, INC.

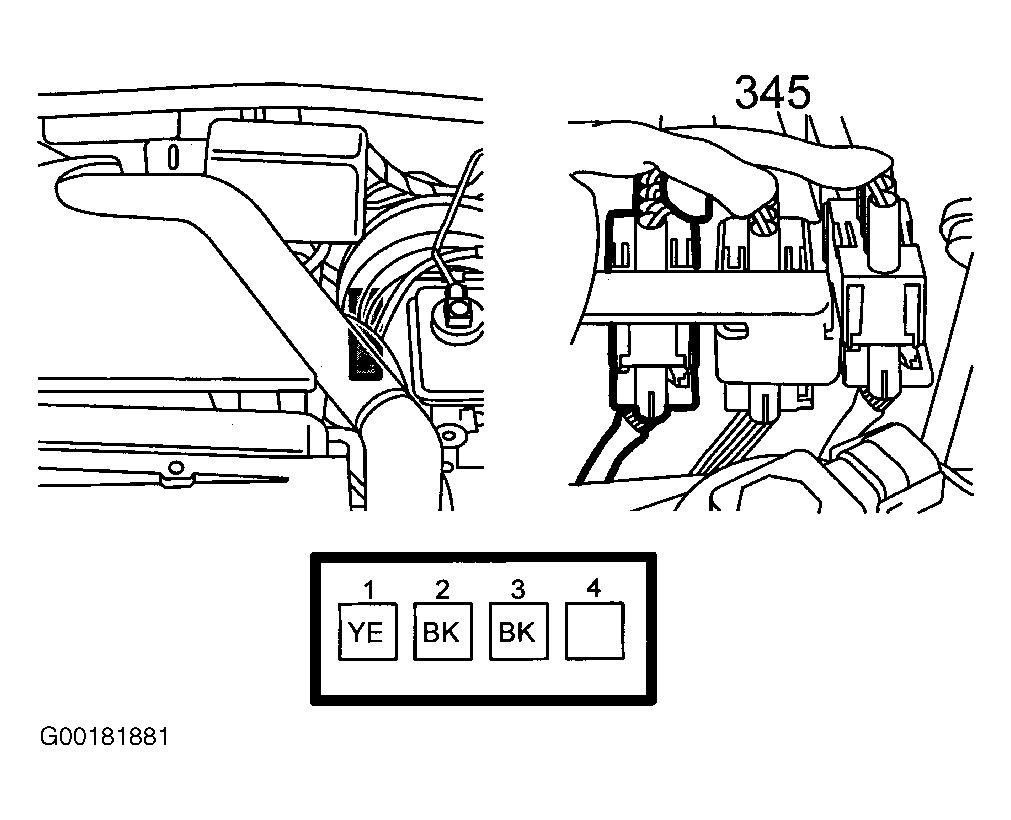

Fig 13: Position Sensor, Crankshaft (9-5 - 4-Cyl)

G00181881

Courtesy of SAAB-SCANIA OF AMERICA, INC.

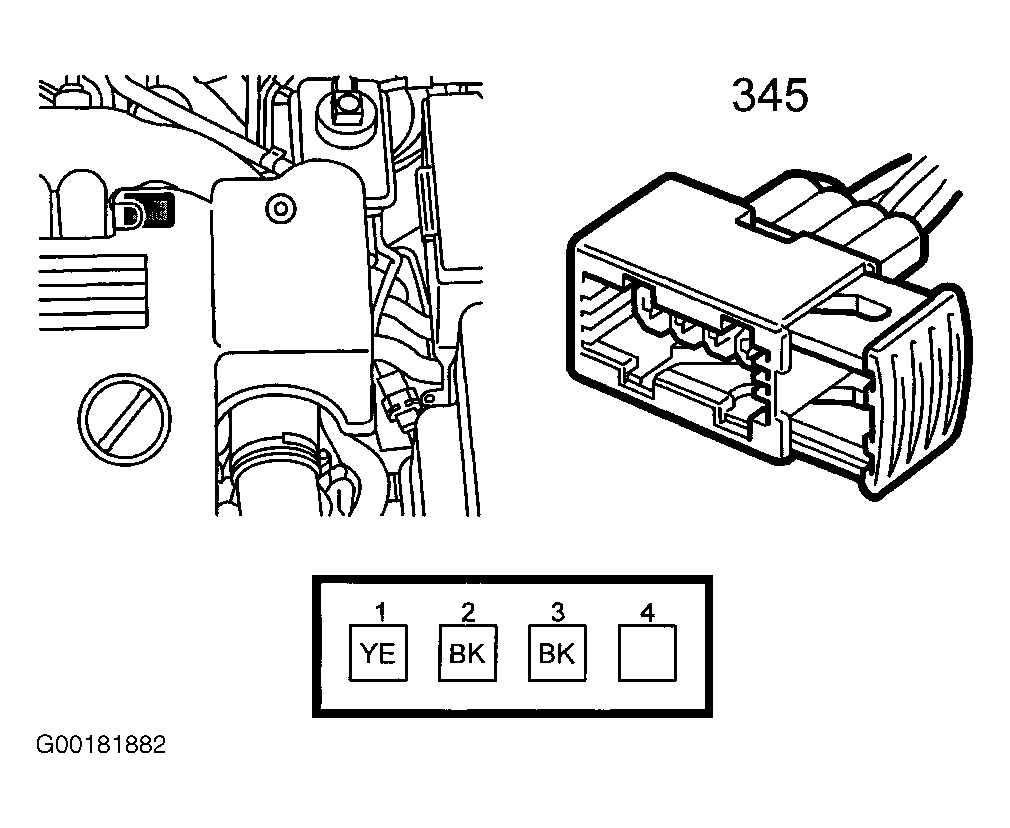

Fig 14: Position Sensor, Crankshaft (9-5 - V6)

G00181882

Courtesy of SAAB-SCANIA OF AMERICA, INC.

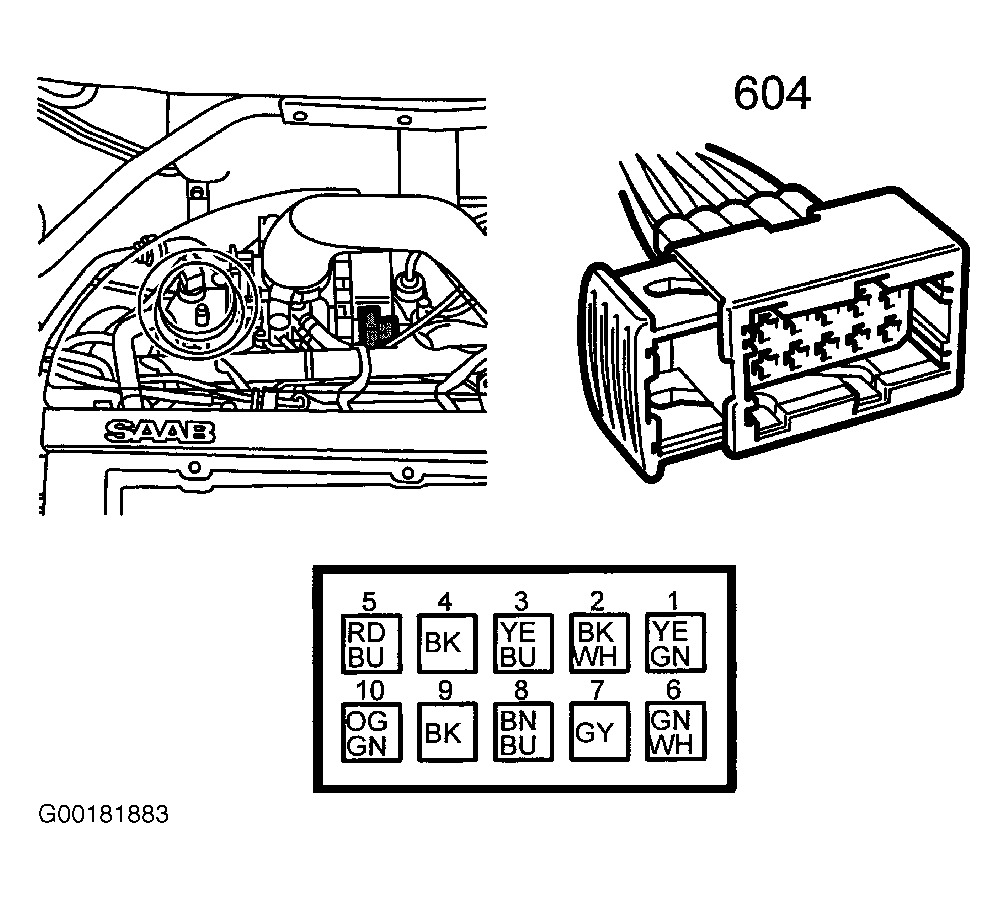

Fig 15: Actuator, Throttle Body (9-3)

G00181883

Courtesy of SAAB-SCANIA OF AMERICA, INC.

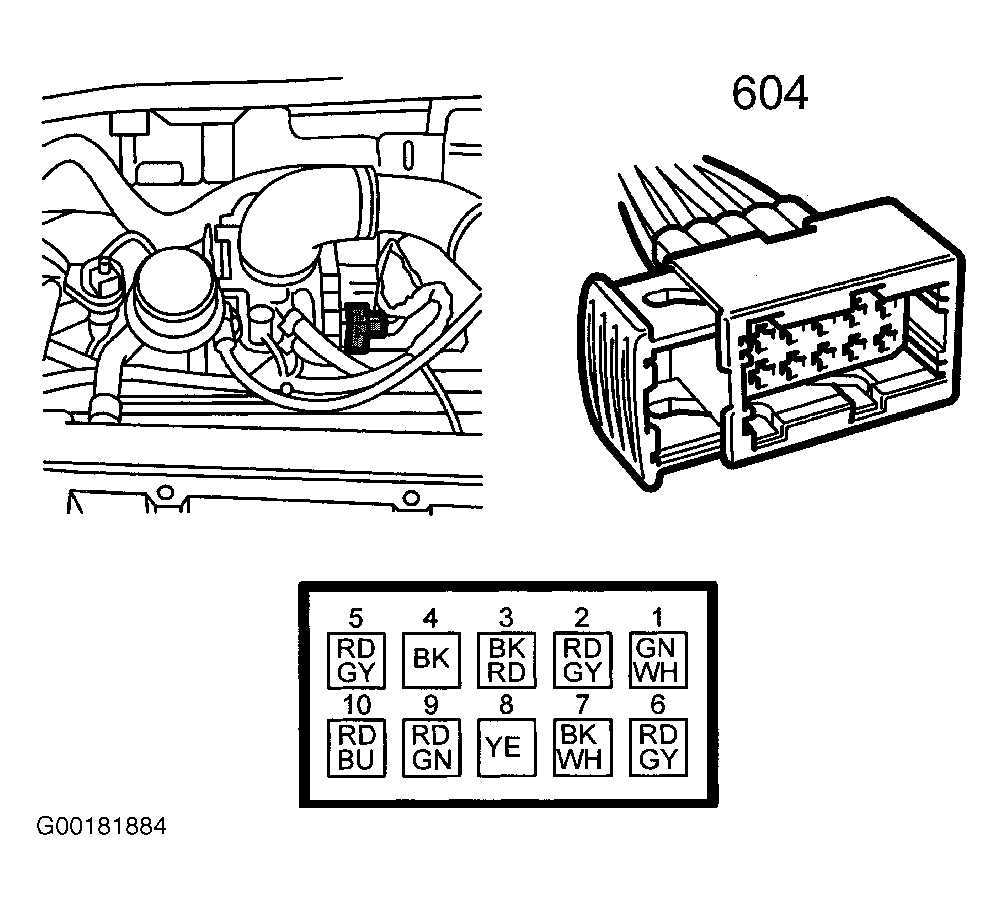

Fig 16: Actuator, Throttle Body (9-5 - 4-Cyl)

G00181884

Courtesy of SAAB-SCANIA OF AMERICA, INC.

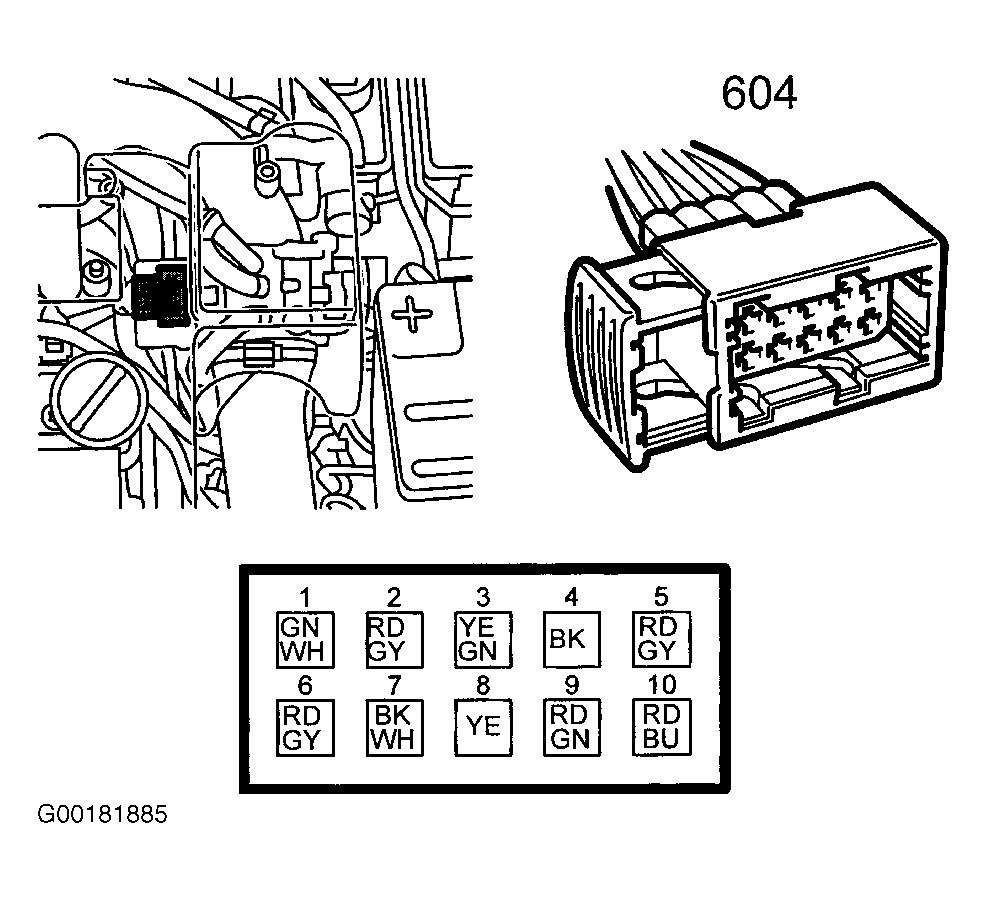

Fig 17: Actuator, Throttle Body (9-5 - V6)

G00181885

Courtesy of SAAB-SCANIA OF AMERICA, INC.

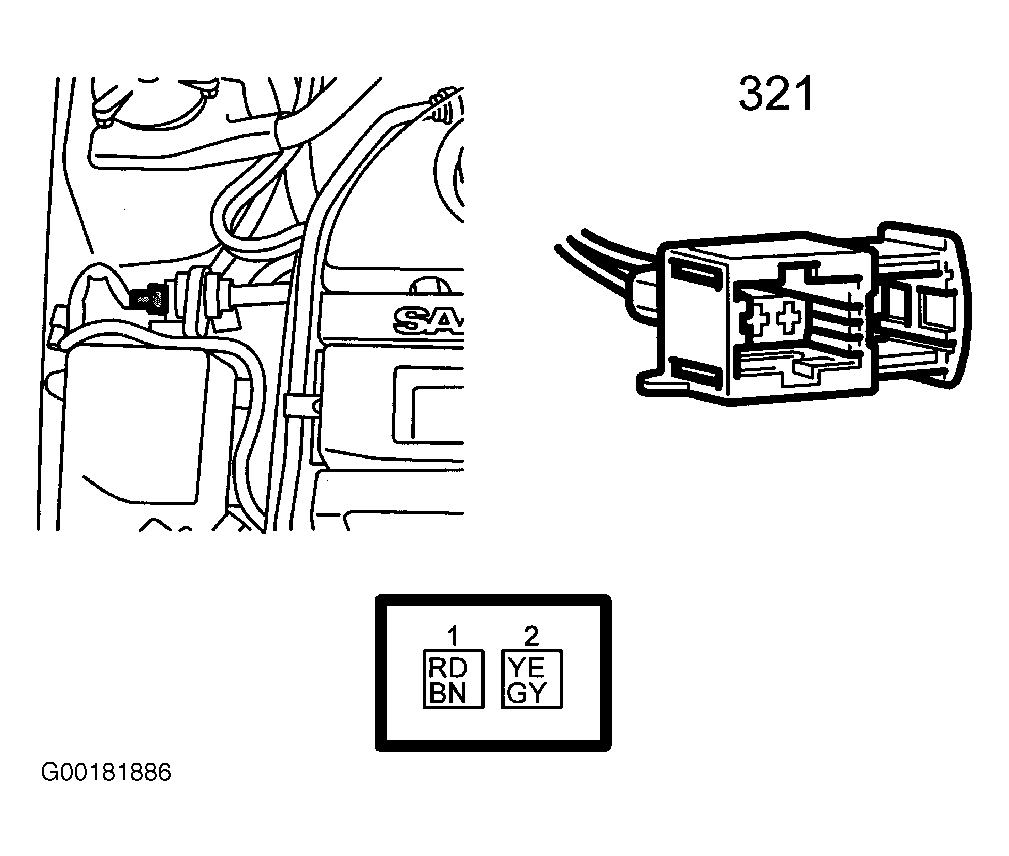

Fig 18: Purge Valve, EVAP Canister (9-3)

G00181886

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 19: Purge Valve, EVAP Canister (9-5 - 4-Cyl)

G00181887

Courtesy of SAAB-SCANIA OF AMERICA, INC.

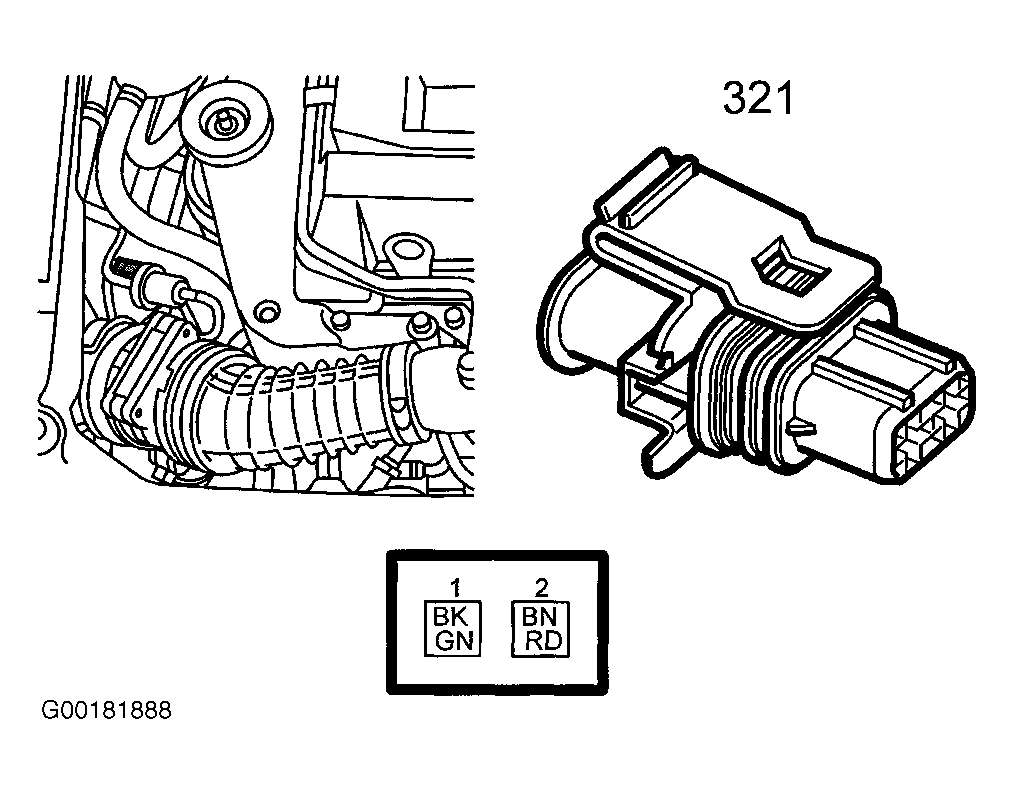

Fig 20: Purge Valve, EVAP Canister (9-5 - V6)

G00181888

Courtesy of SAAB-SCANIA OF AMERICA, INC.

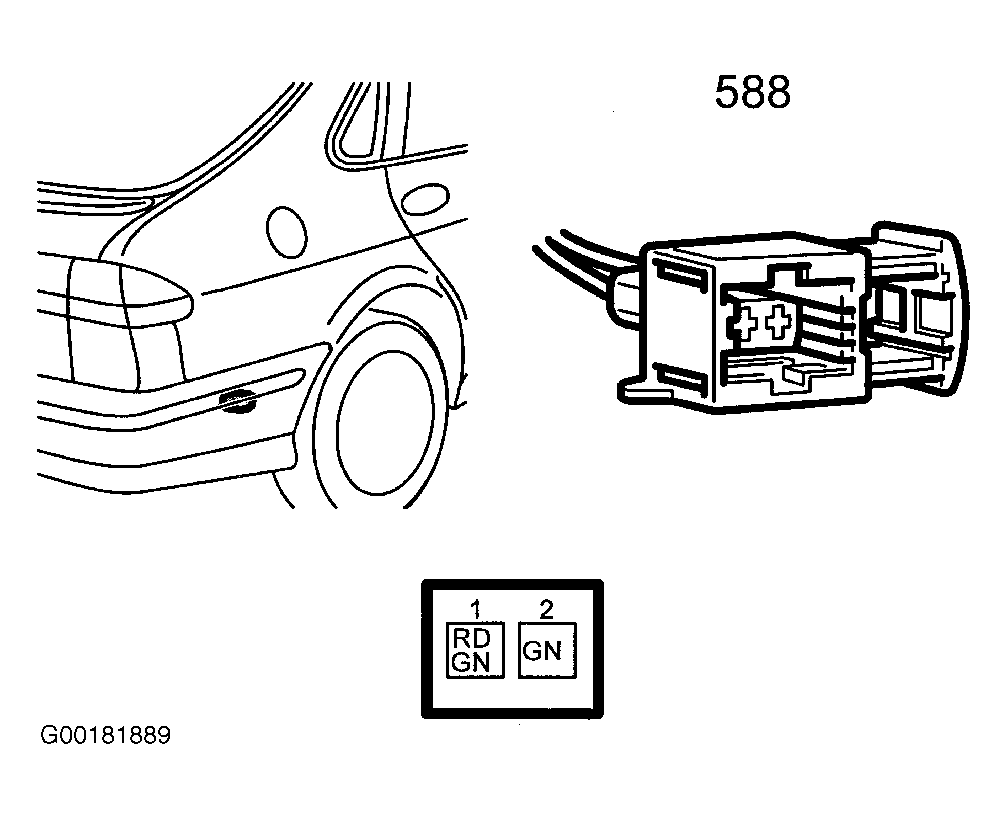

Fig 21: Solenoid Valve, EVAP Shut-Off (9-3)

G00181889

Courtesy of SAAB-SCANIA OF AMERICA, INC.

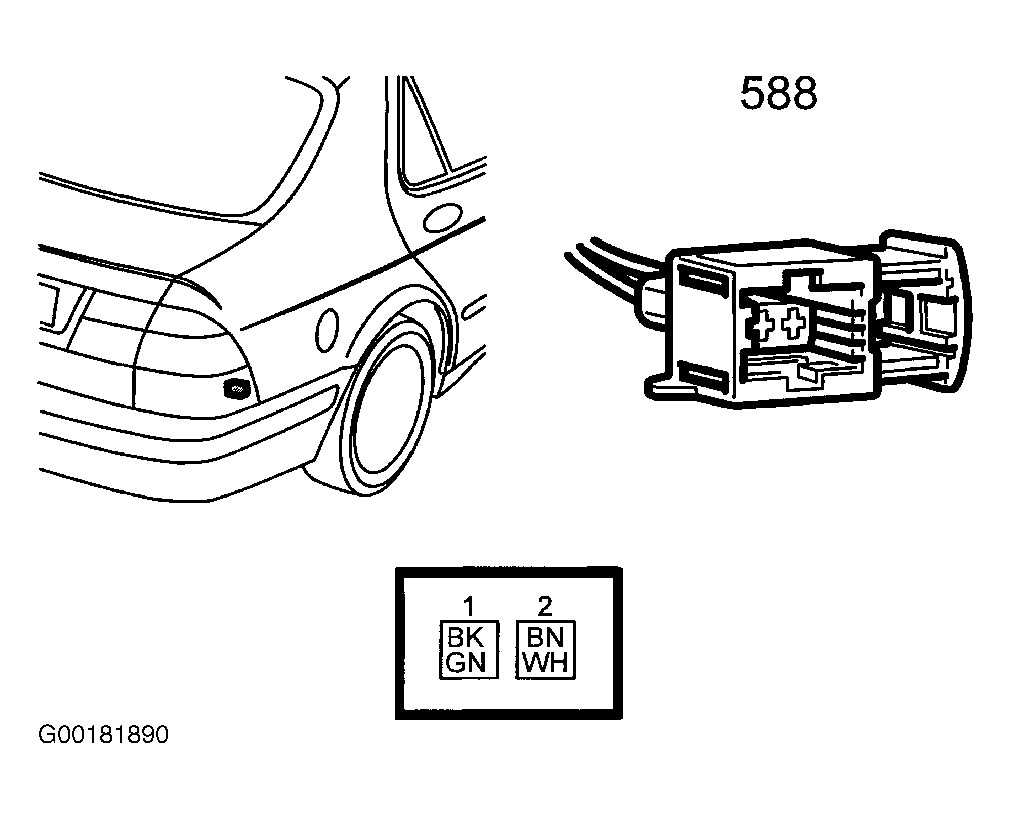

Fig 22: Solenoid Valve, EVAP Shut-Off (9-5)

G00181890

Courtesy of SAAB-SCANIA OF AMERICA, INC.

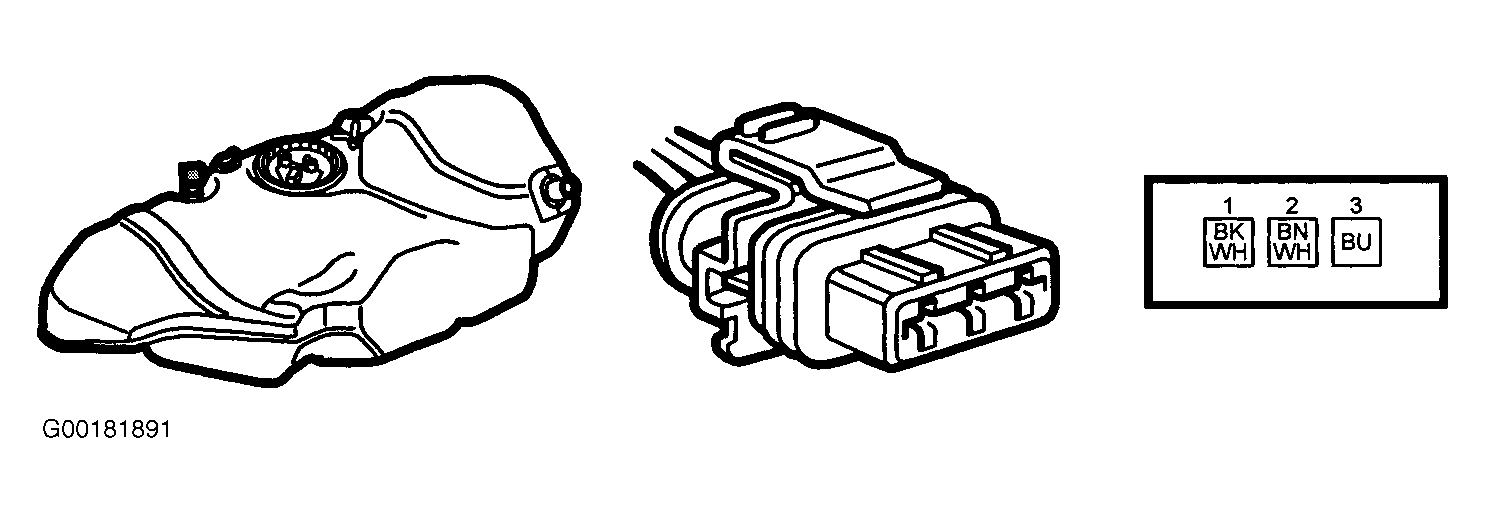

Fig 23: Pressure Sensor, EVAP (9-3)

G00181891

Courtesy of SAAB-SCANIA OF AMERICA, INC.

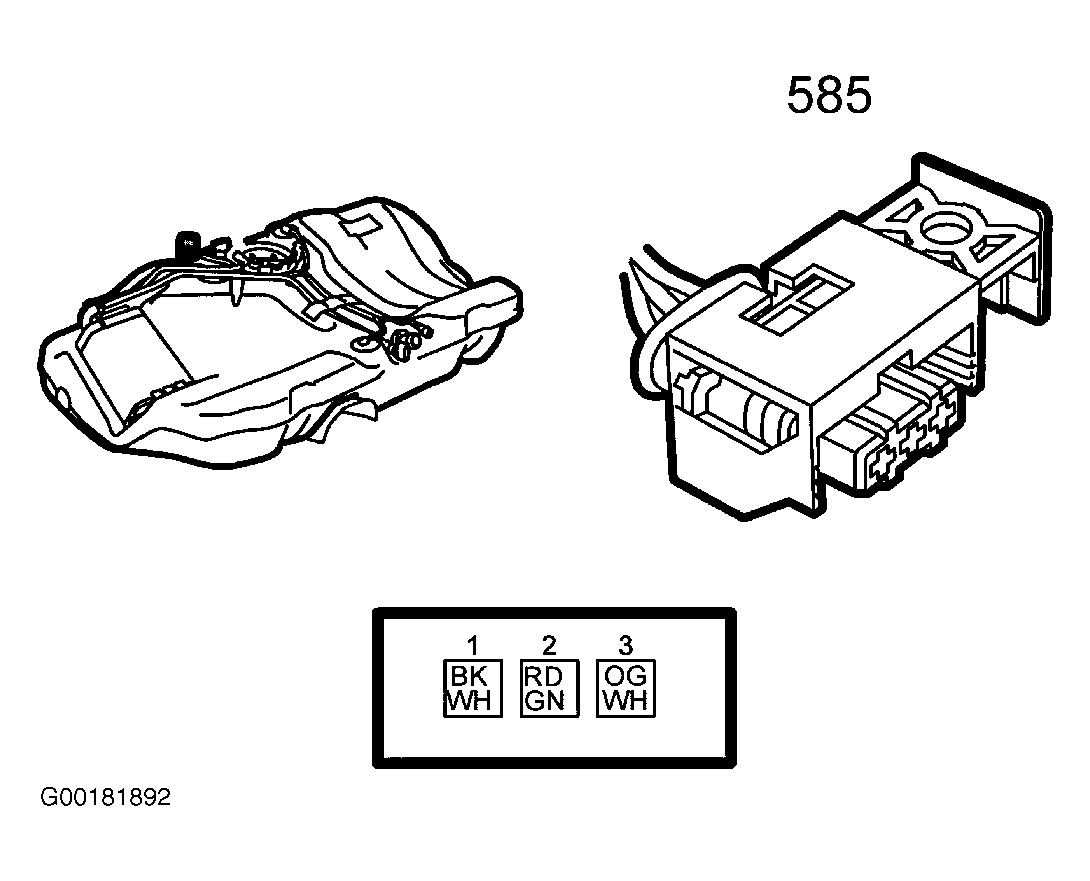

Fig 24: Pressure Sensor, EVAP (9-5)

G00181892

Courtesy of SAAB-SCANIA OF AMERICA, INC.

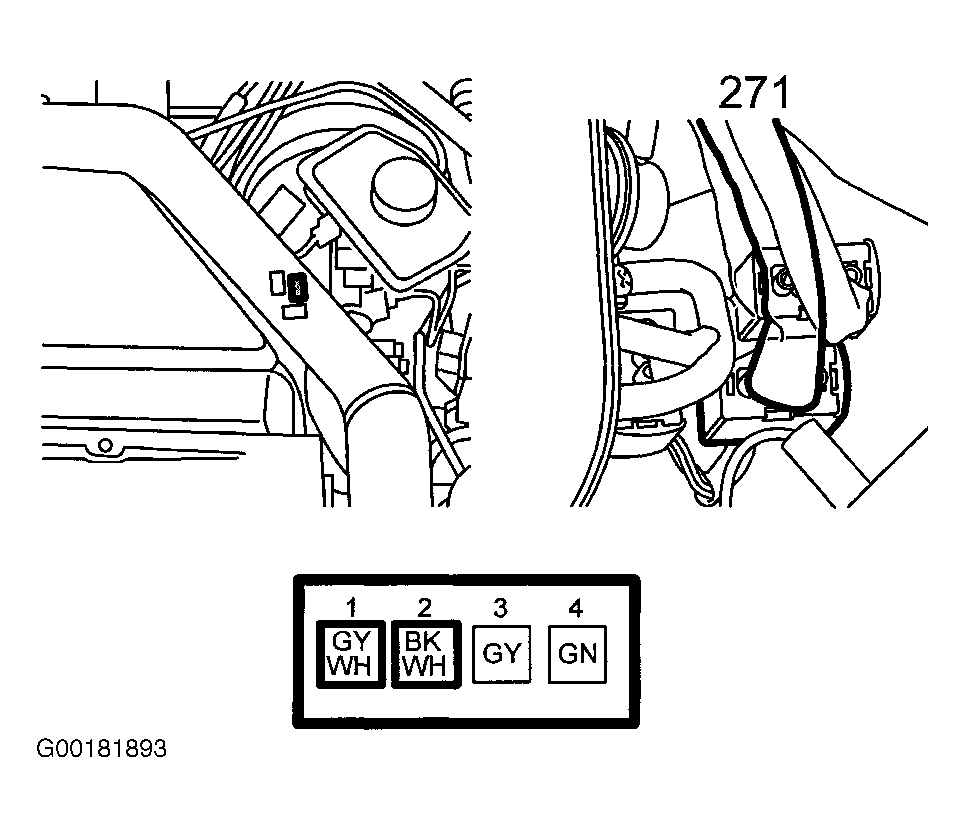

Fig 25: Heater Element, Front Oxygen Sensor (9-3)

G00181893

Courtesy of SAAB-SCANIA OF AMERICA, INC.

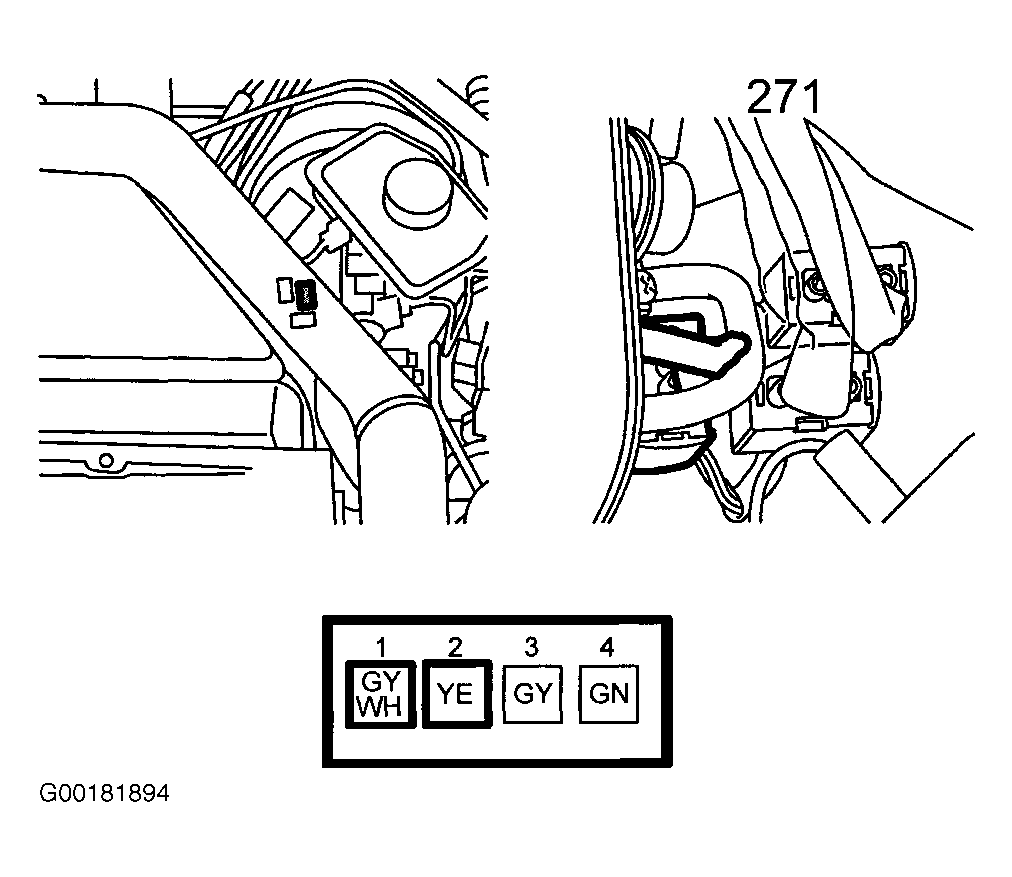

Fig 26: Heater Element, Rear Oxygen Sensor (9-3)

G00181894

Courtesy of SAAB-SCANIA OF AMERICA, INC.

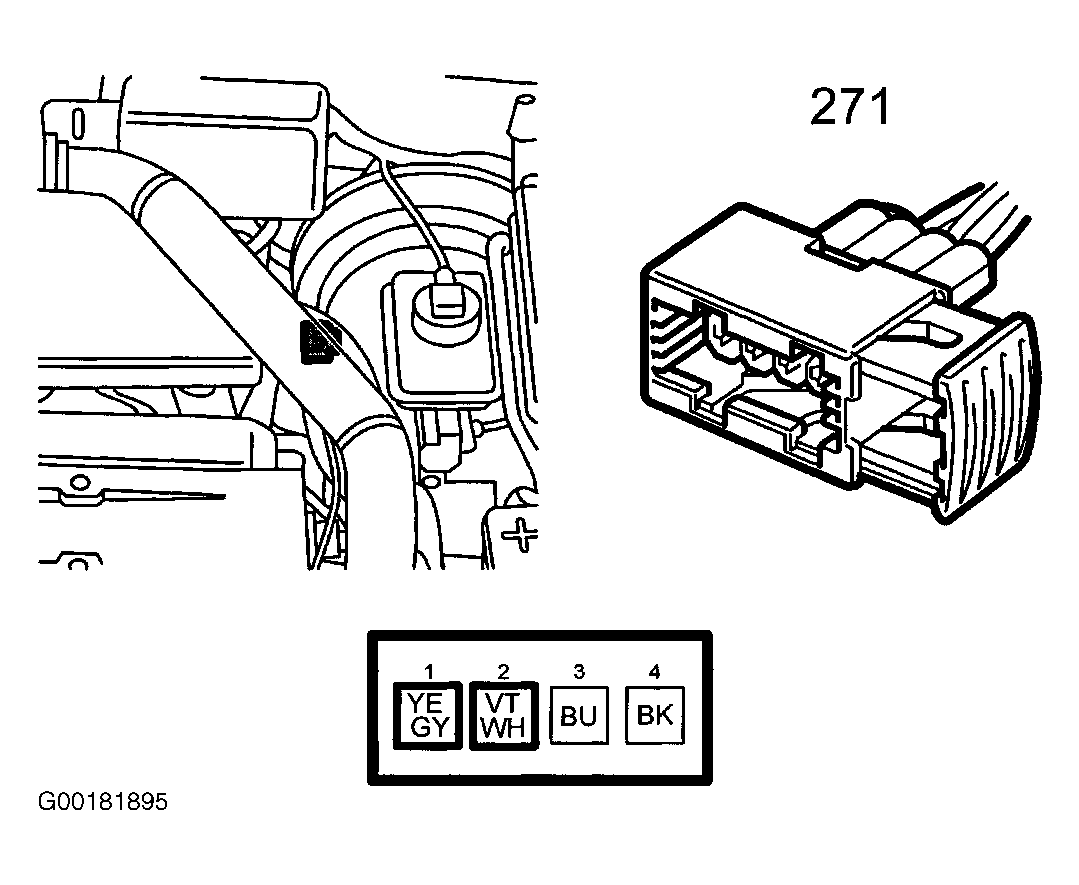

Fig 27: Heater Element, Oxygen Sensor (9-5 - 4-Cyl)

G00181895

Courtesy of SAAB-SCANIA OF AMERICA, INC.

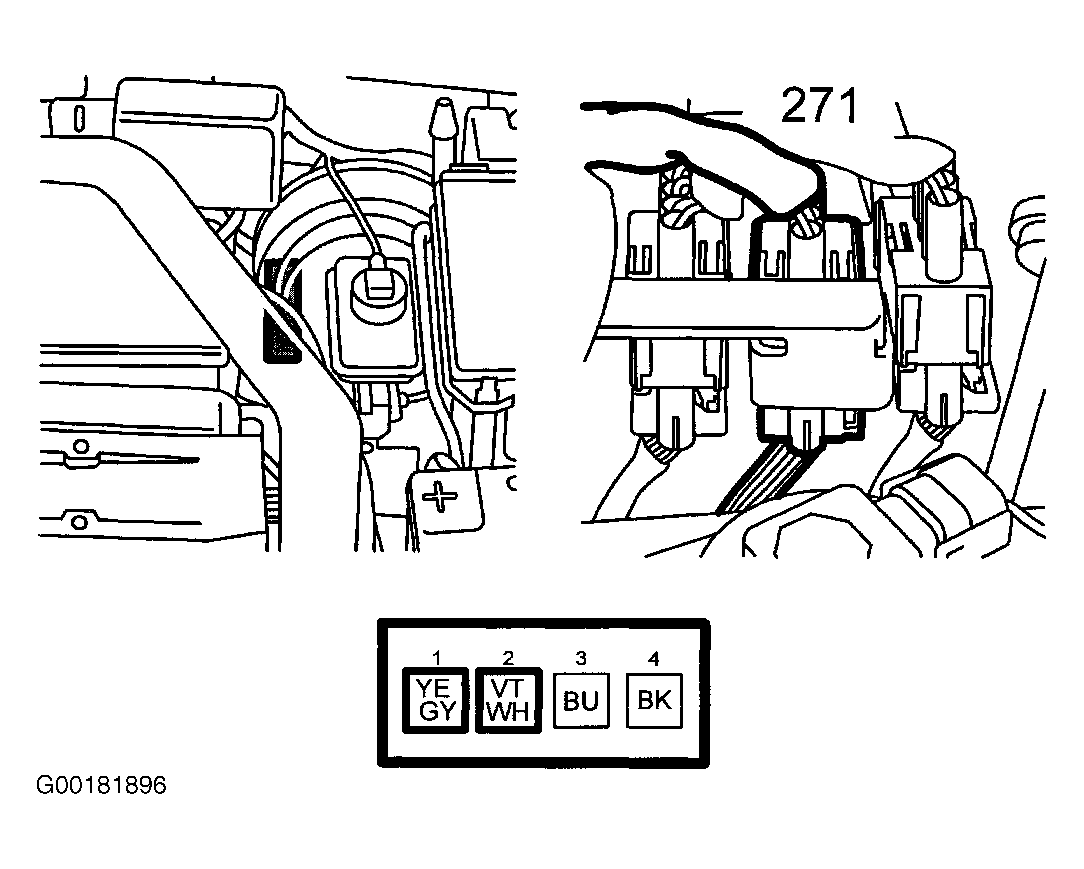

Fig 28: Heater Element, Front OBDII Oxygen Sensor (9-5 - 4-Cyl)

G00181896

Courtesy of SAAB-SCANIA OF AMERICA, INC.

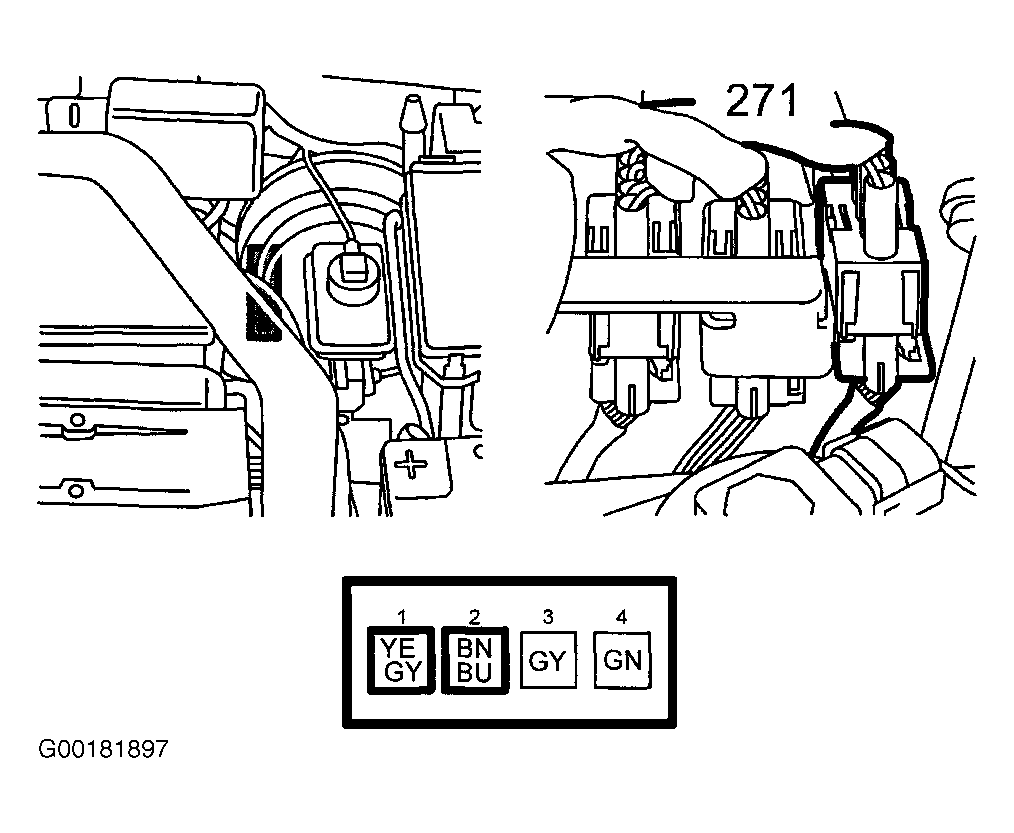

Fig 29: Heater Element, Rear OBDII Oxygen Sensor (9-5 - 4-Cyl)

G00181897

Courtesy of SAAB-SCANIA OF AMERICA, INC.

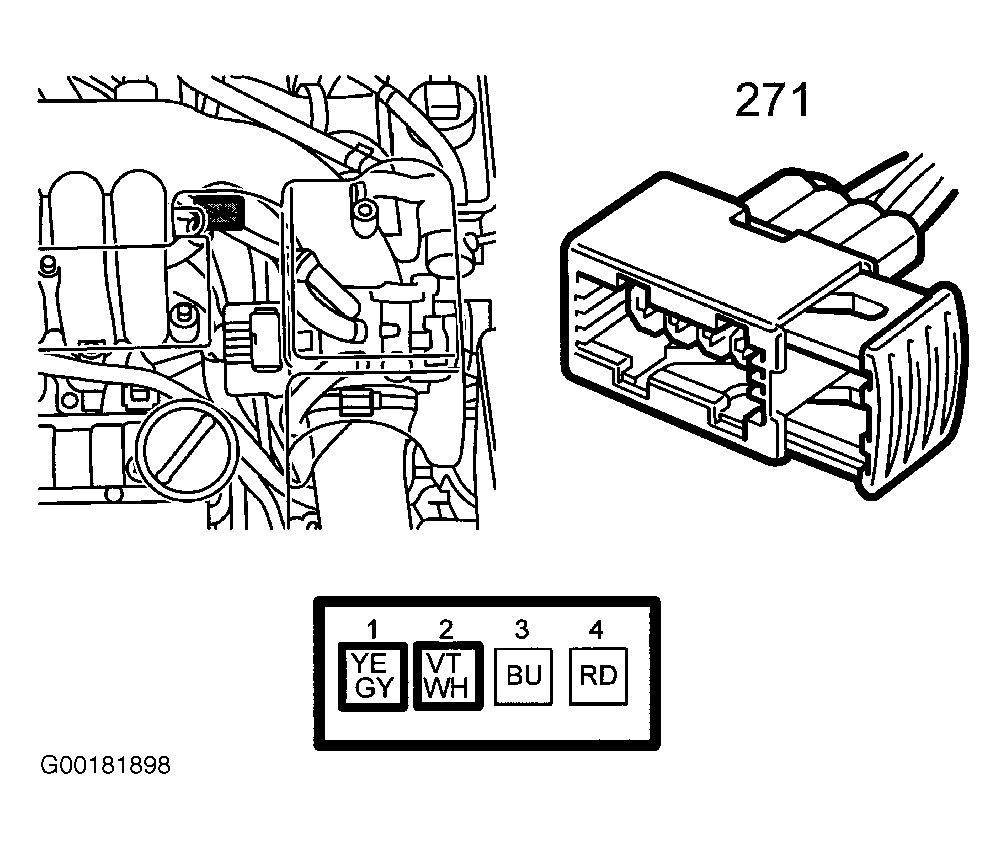

Fig 30: Heater Element, Oxygen Sensor (9-5 - V6)

G00181898

Courtesy of SAAB-SCANIA OF AMERICA, INC.

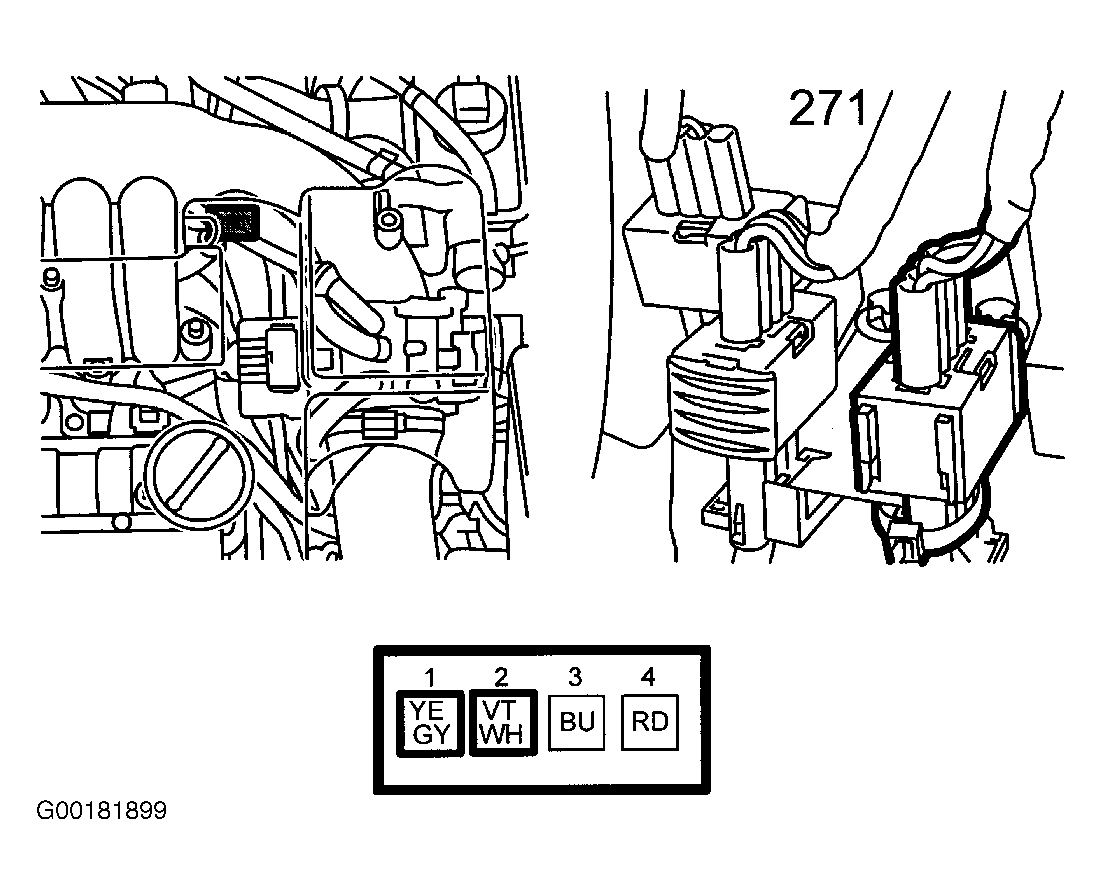

Fig 31: Heater Element, Front OBDII Oxygen Sensor (9-5 - V6)

G00181899

Courtesy of SAAB-SCANIA OF AMERICA, INC.

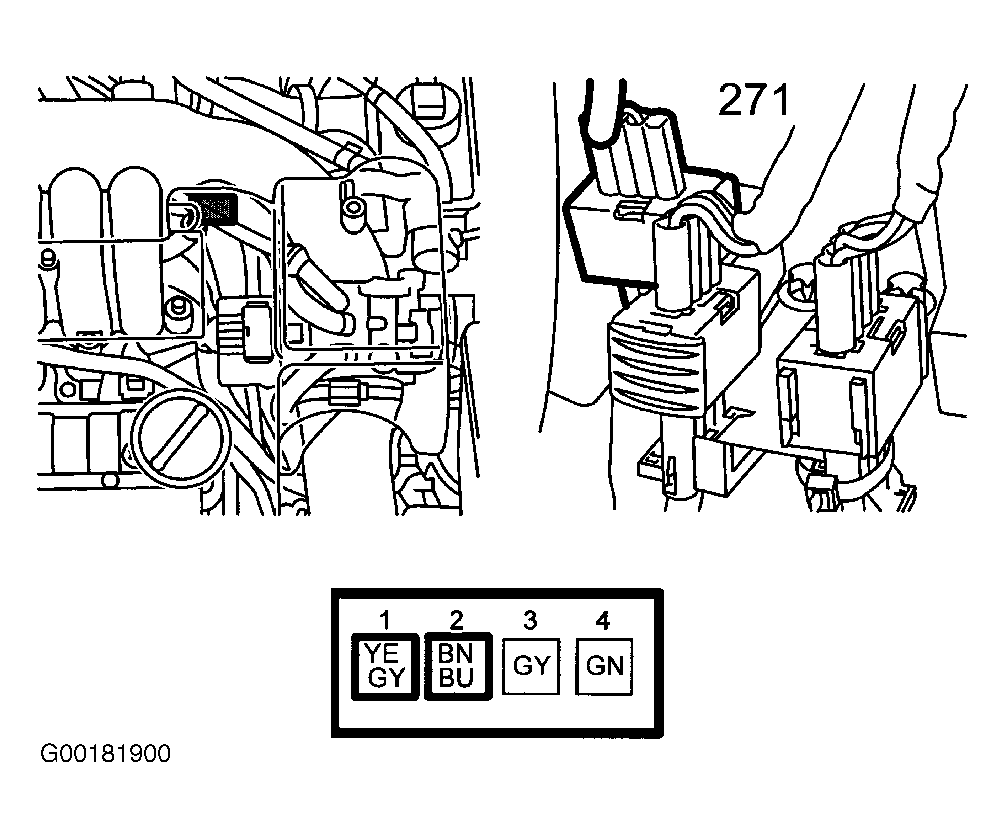

Fig 32: Heater Element, Rear OBDII Oxygen Sensor (9-5 - V6)

G00181900

Courtesy of SAAB-SCANIA OF AMERICA, INC.

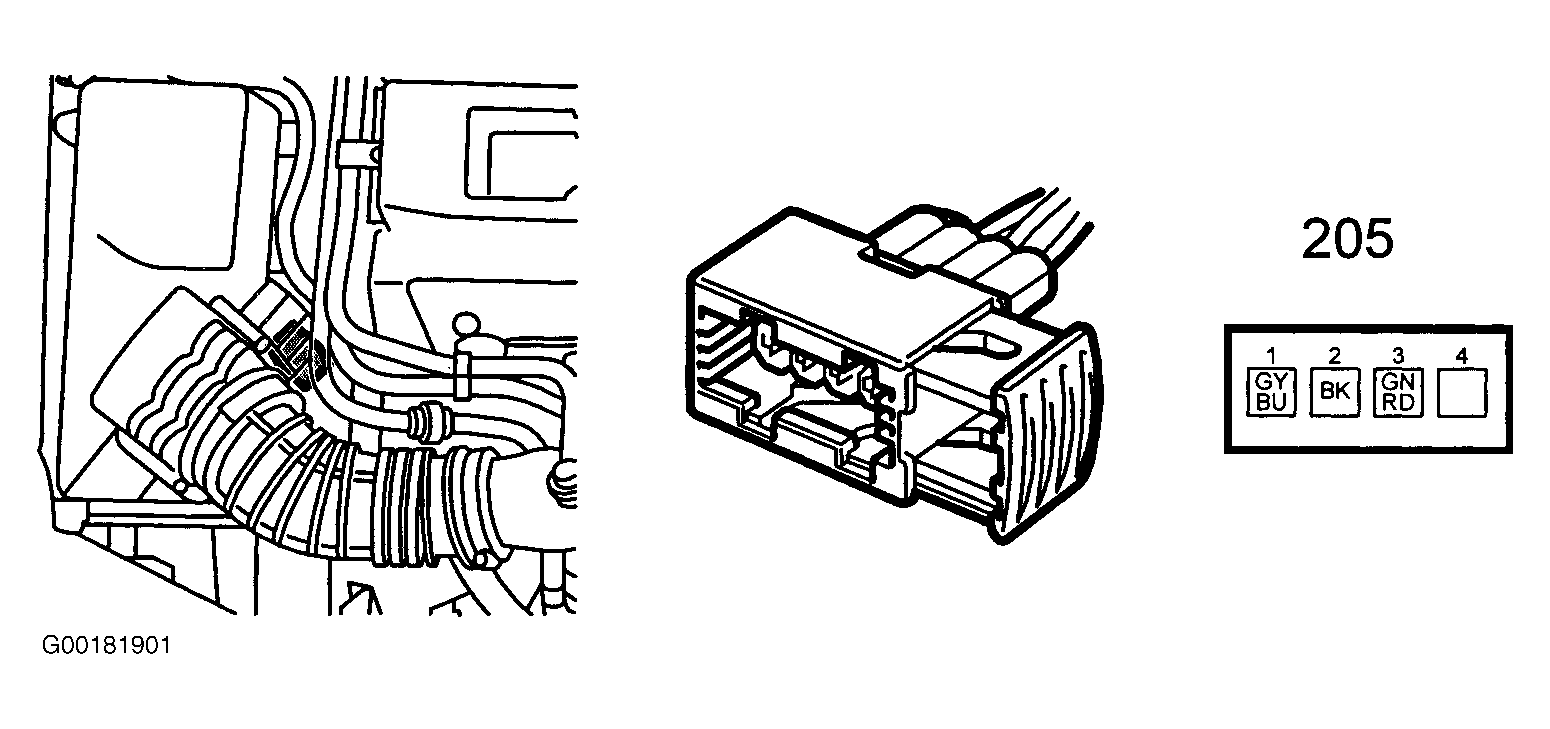

Fig 33: Mass Air Flow Sensor, T7 (9-3)

G00181901

Courtesy of SAAB-SCANIA OF AMERICA, INC.

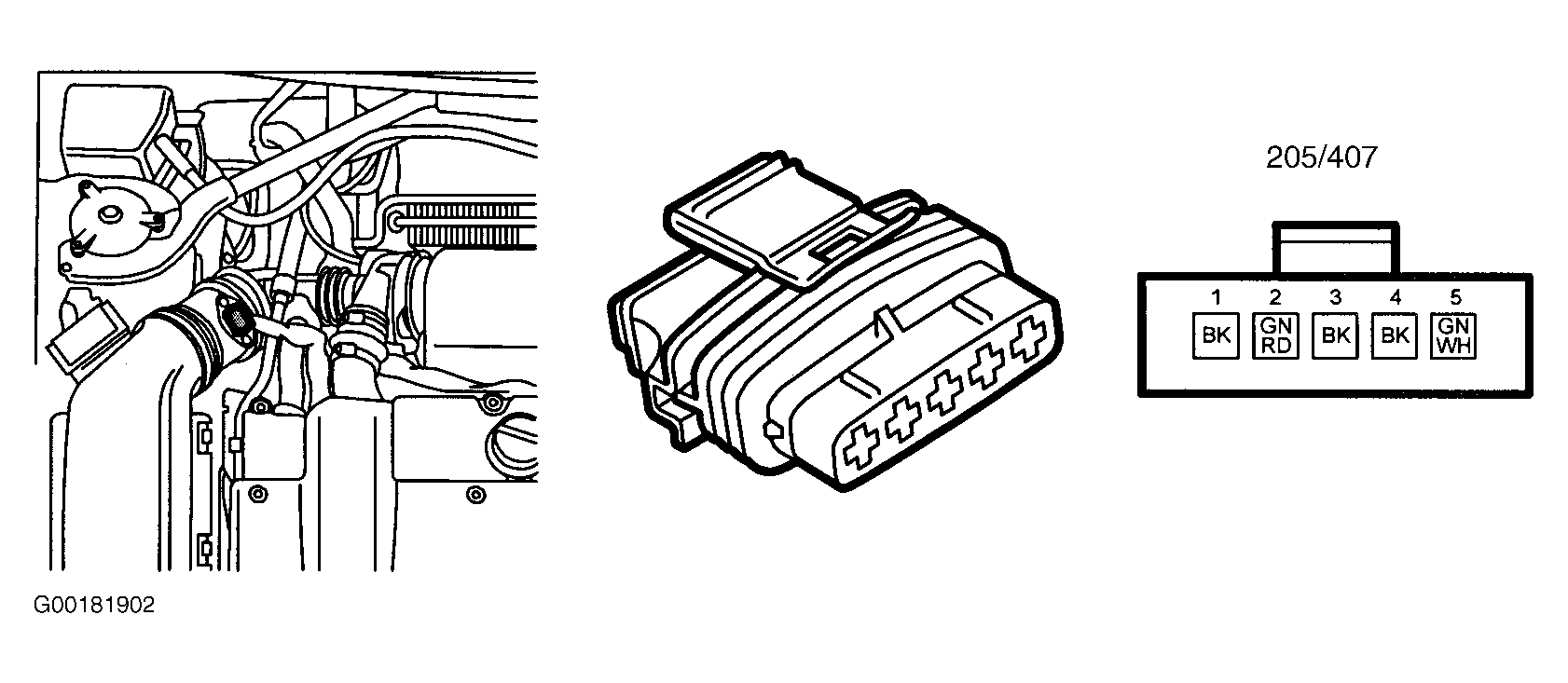

Fig 34: Mass Air Flow Sensor, EDC15 (9-3)

G00181902

Courtesy of SAAB-SCANIA OF AMERICA, INC.

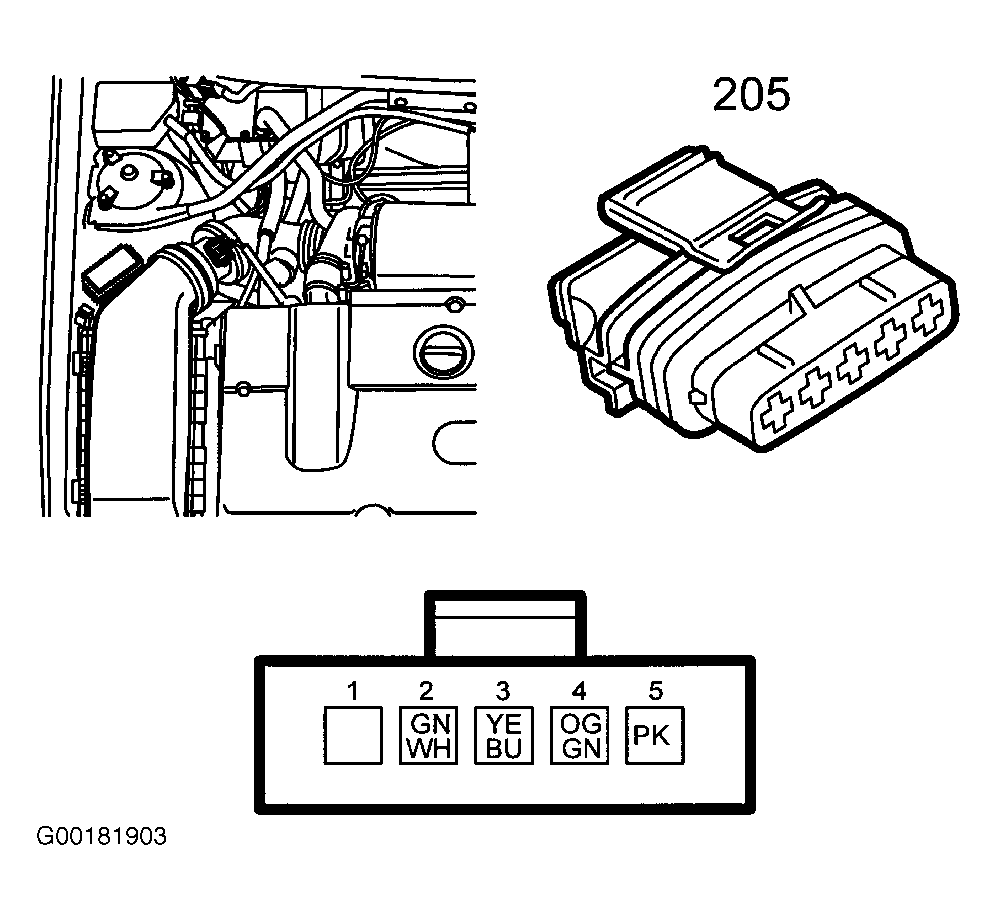

Fig 35: Mass Air Flow Sensor, PSG16 (9-3)

G00181903

Courtesy of SAAB-SCANIA OF AMERICA, INC.

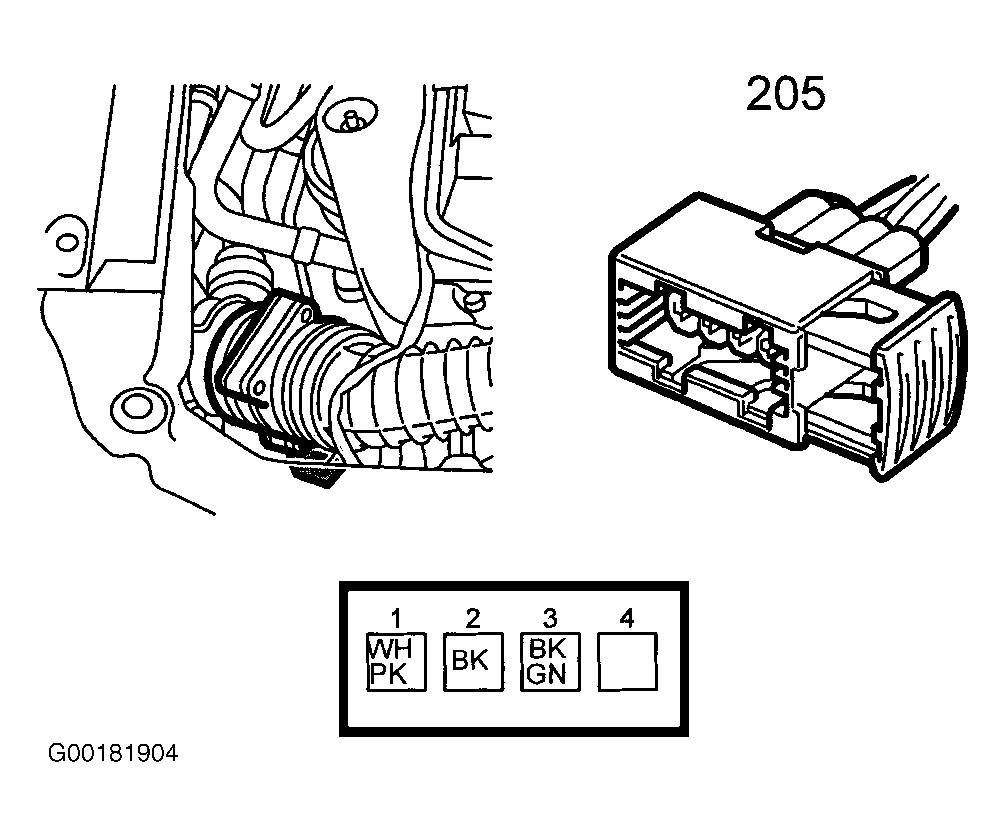

Fig 36: Mass Air Flow Sensor (9-5 - 4-Cyl)

G00181904

Courtesy of SAAB-SCANIA OF AMERICA, INC.

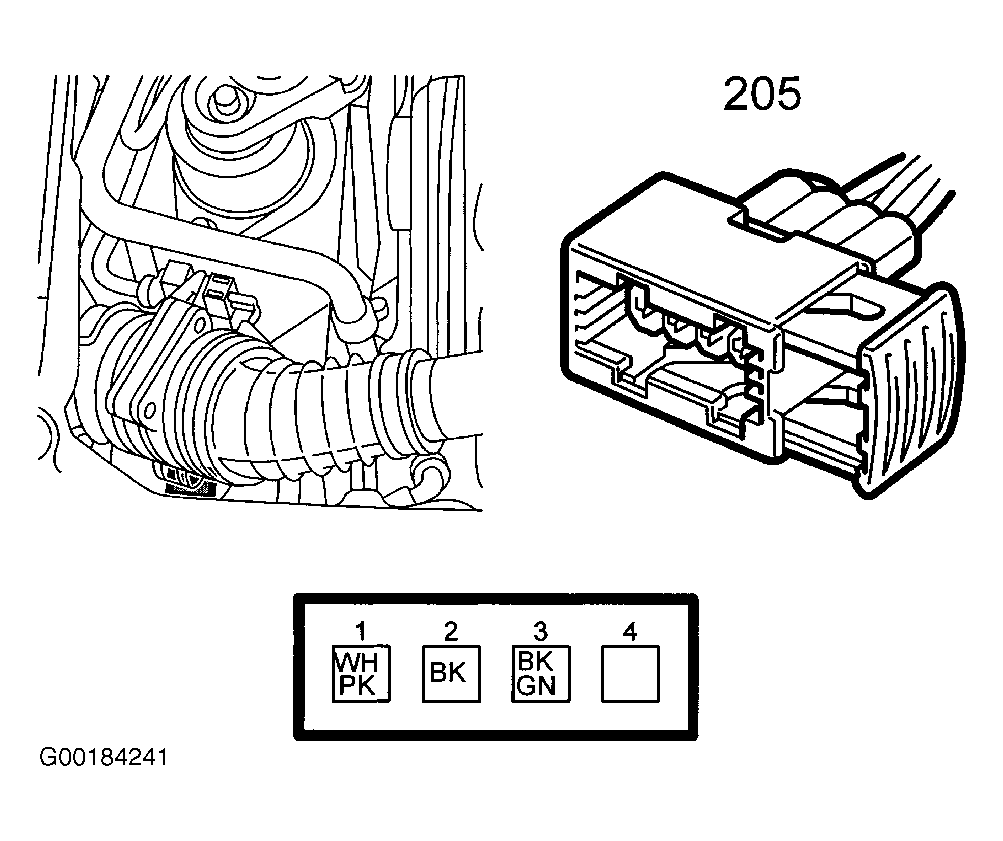

Fig 37: Mass Air Flow Sensor (9-5 - V6)

G00184241

Courtesy of SAAB-SCANIA OF AMERICA, INC.

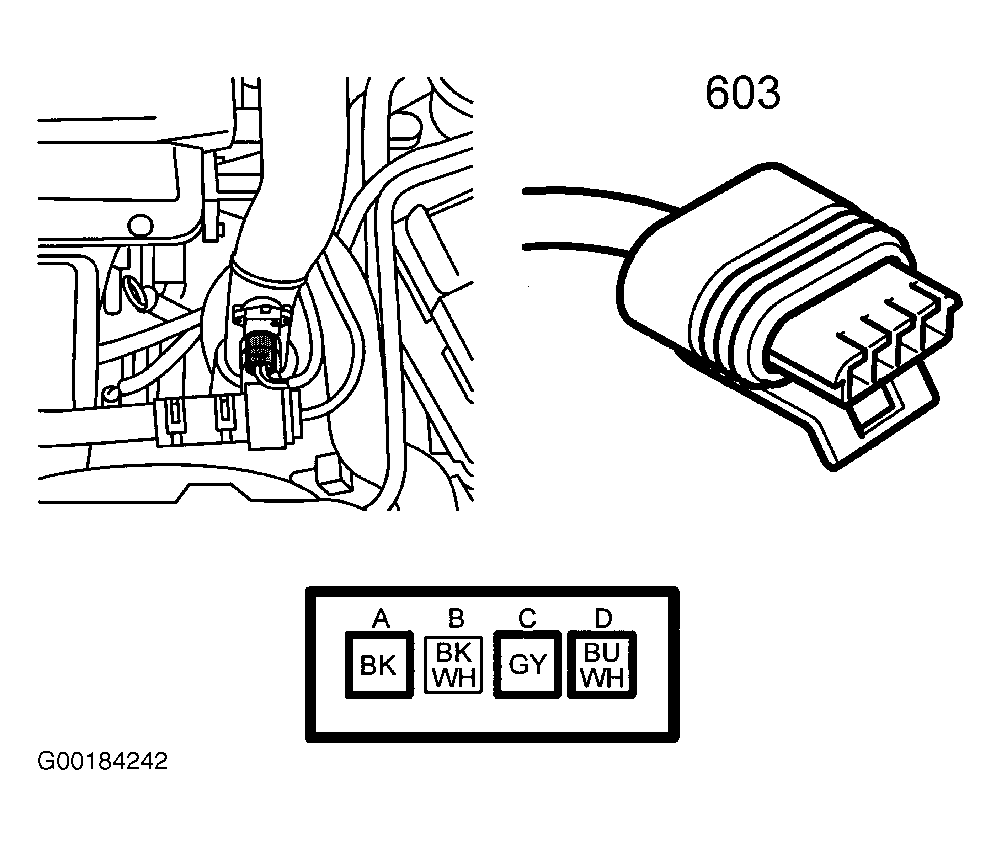

Fig 38: Pressure Sensor, Charge Air (9-3 - T7)

G00184242

Courtesy of SAAB-SCANIA OF AMERICA, INC.

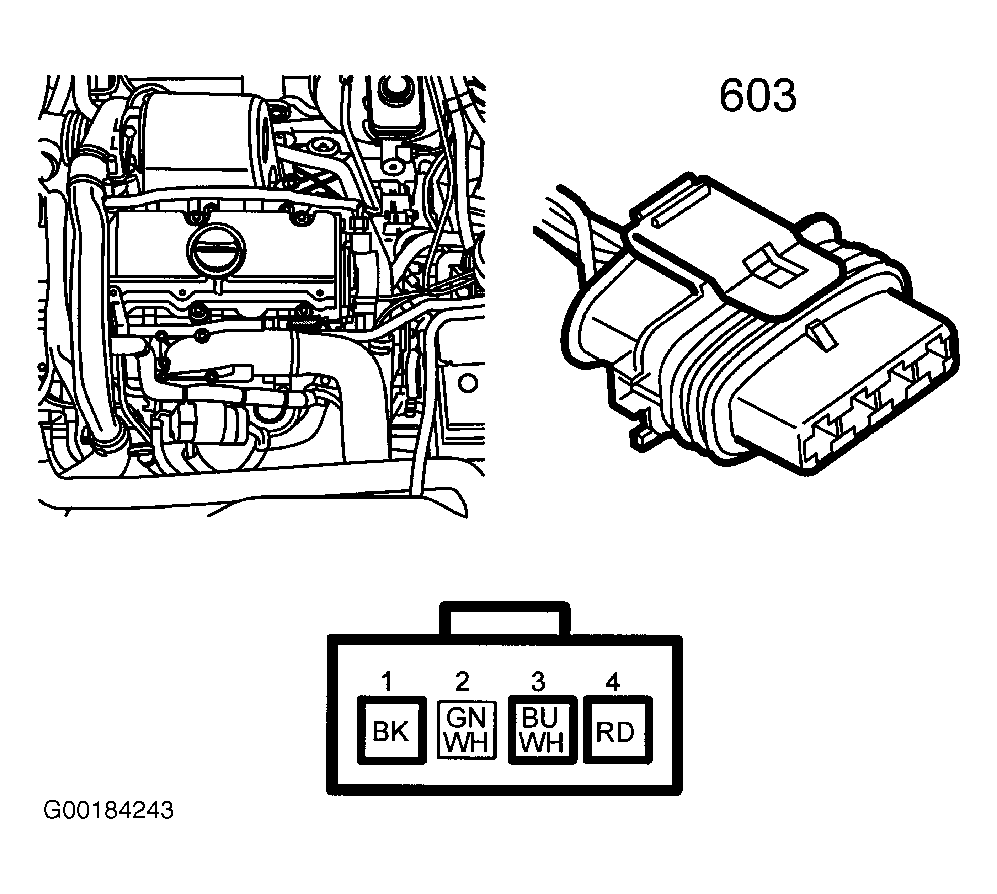

Fig 39: Pressure Sensor, Charge Air (9-3 - PSG16)

G00184243

Courtesy of SAAB-SCANIA OF AMERICA, INC.

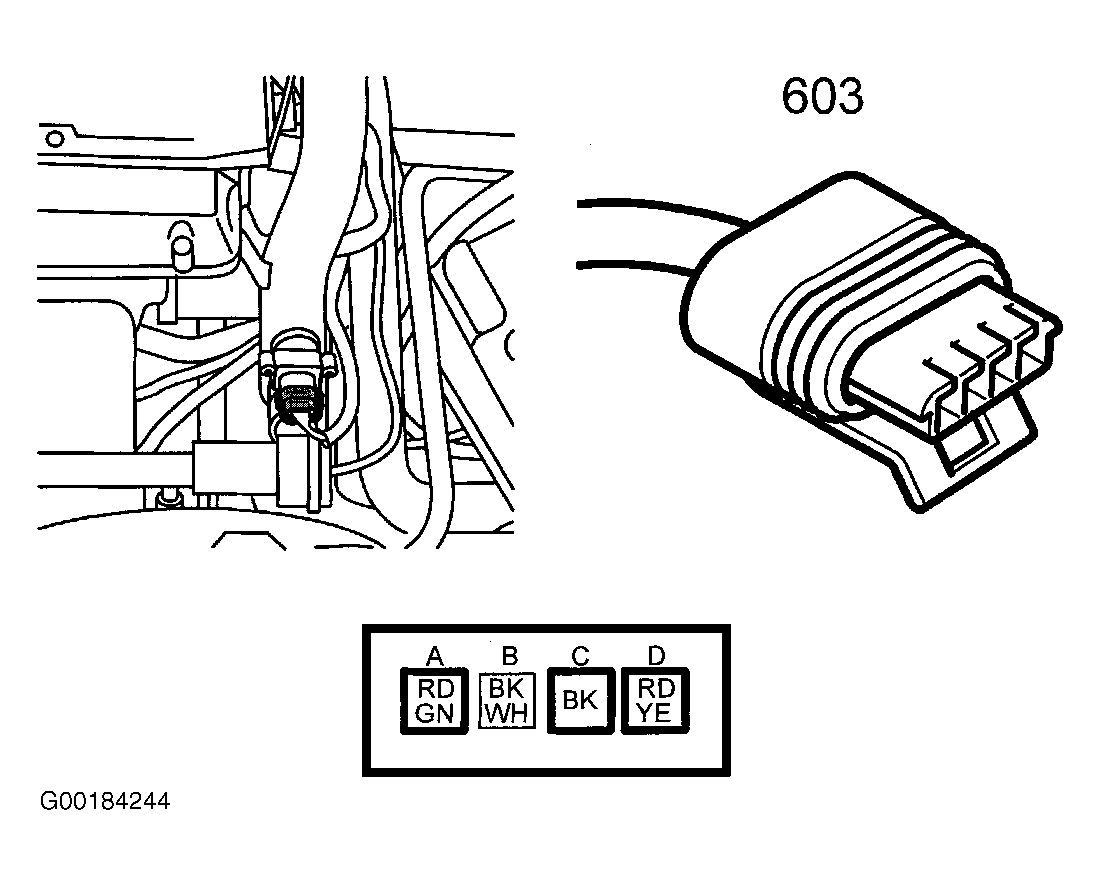

Fig 40: Pressure Sensor, Charge Air (9-5 - 4-Cyl)

G00184244

Courtesy of SAAB-SCANIA OF AMERICA, INC.

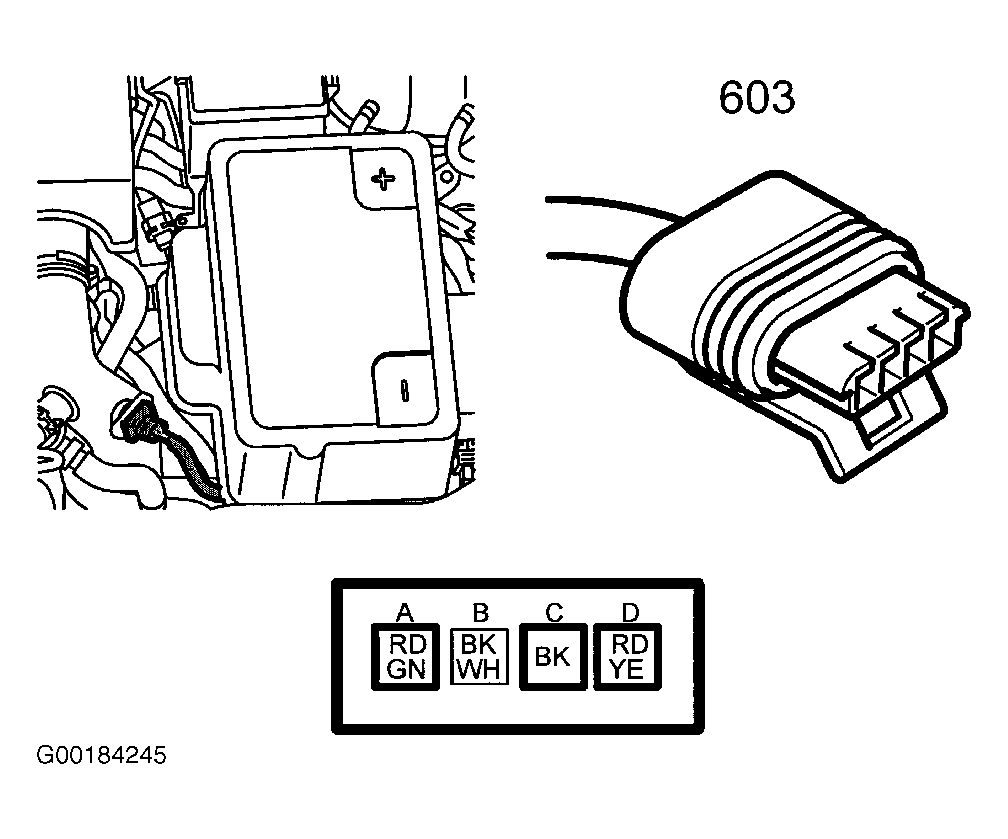

Fig 41: Pressure Sensor, Charge Air (9-5 - V6)

G00184245

Courtesy of SAAB-SCANIA OF AMERICA, INC.
