DTC P1676: Injector Circuit. Open/Short to Ground or B+.: Notes

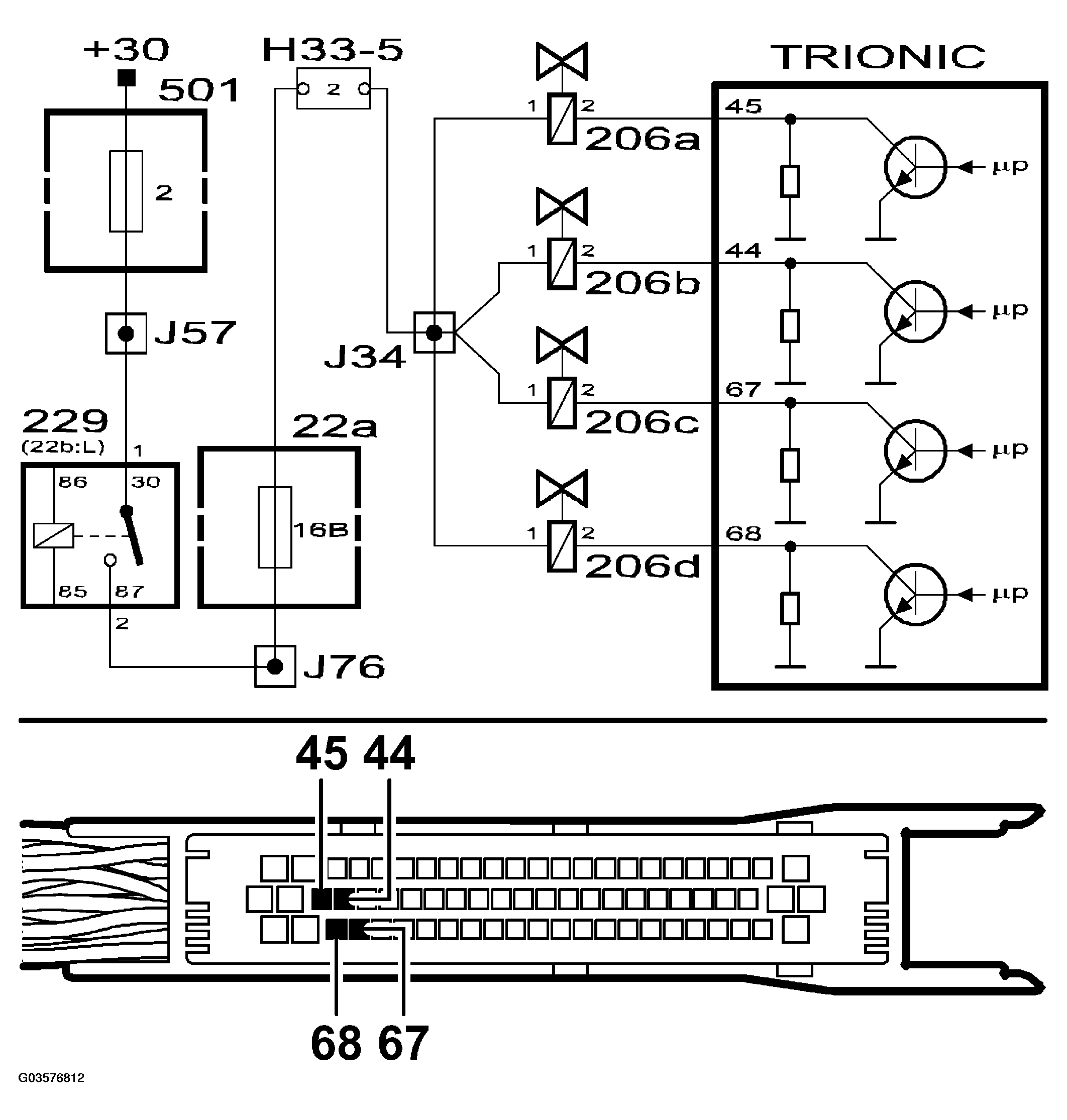

Fig 1: Injector Circuit Diagram - Open/Short To Ground Or B+
G03576812Courtesy of SAAB-SCANIA OF AMERICA, INC.
