Control Module Inputs

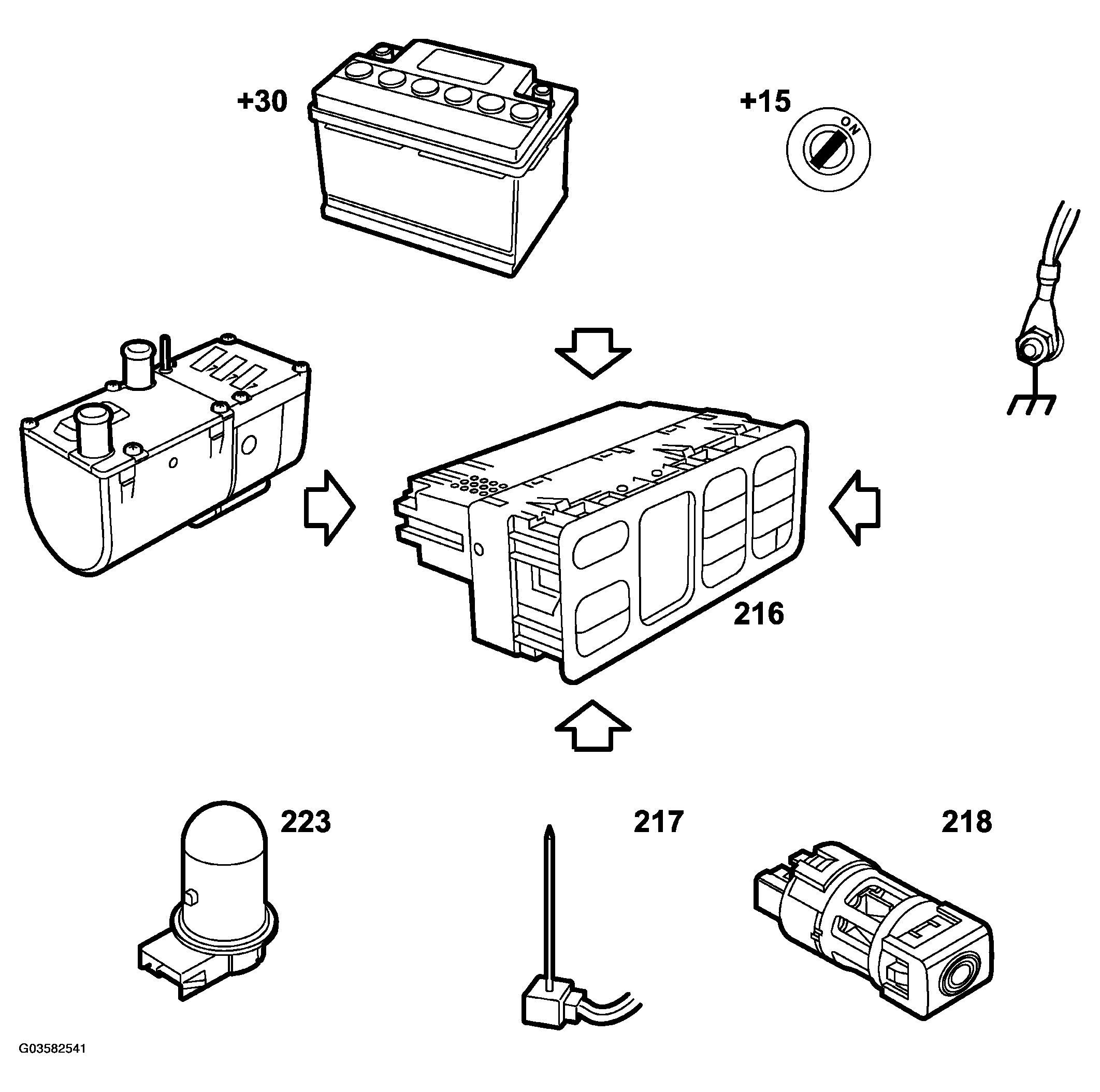

Fig 1: Identifying Control Module Inputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Power supply +30
Power supply +15
Ground
Cabin temperature sensor
Mixed-air temperature sensor
Solar sensor
Parking heater
Courtesy of SAAB-SCANIA OF AMERICA, INC.
