To fit

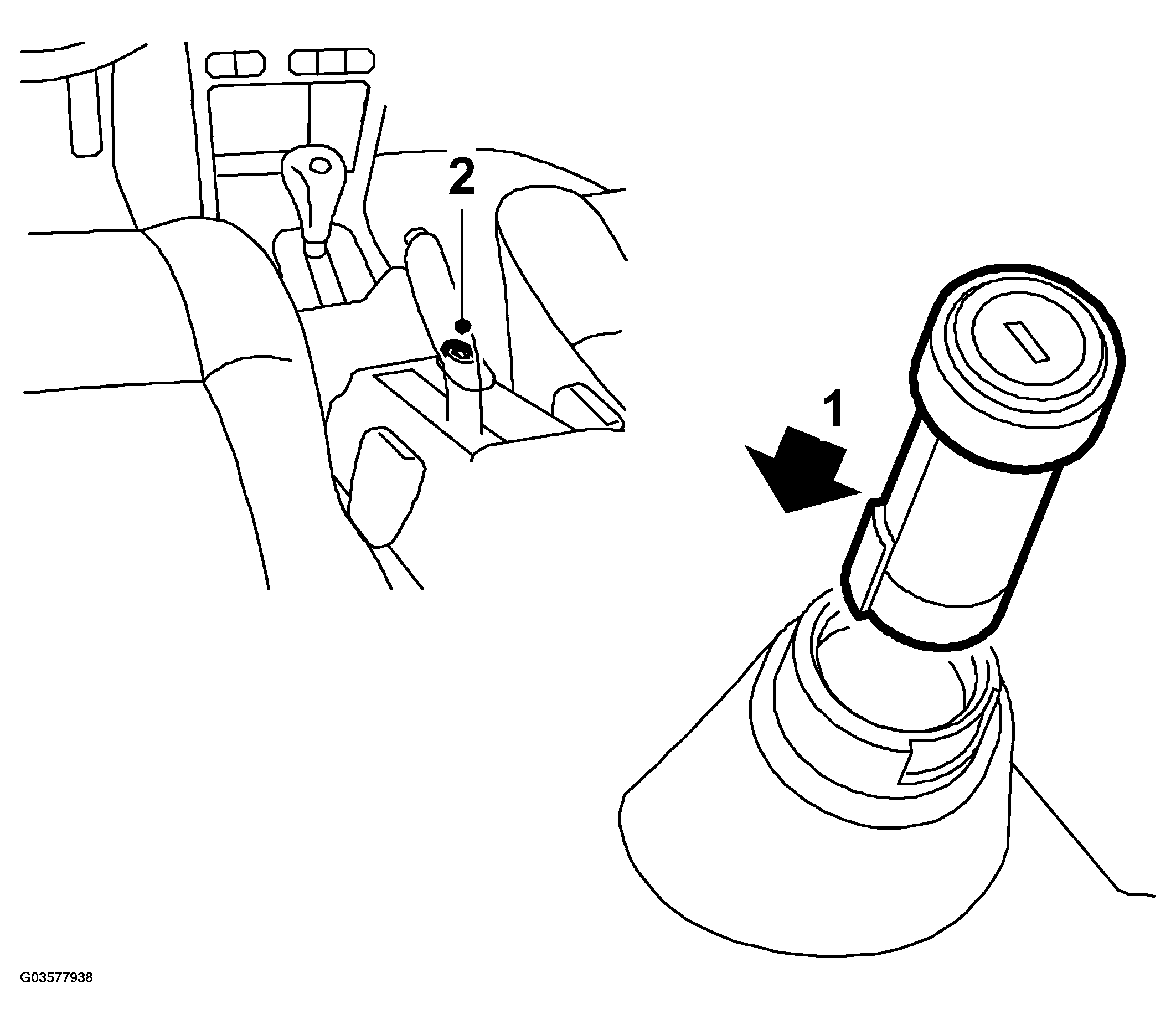

Fig 1: Illustration For Steps 1-2
G03577938Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the lock cylinder in place and press it well home. Make sure it is firmly located.
  2. Fit the transponder.
