To fit

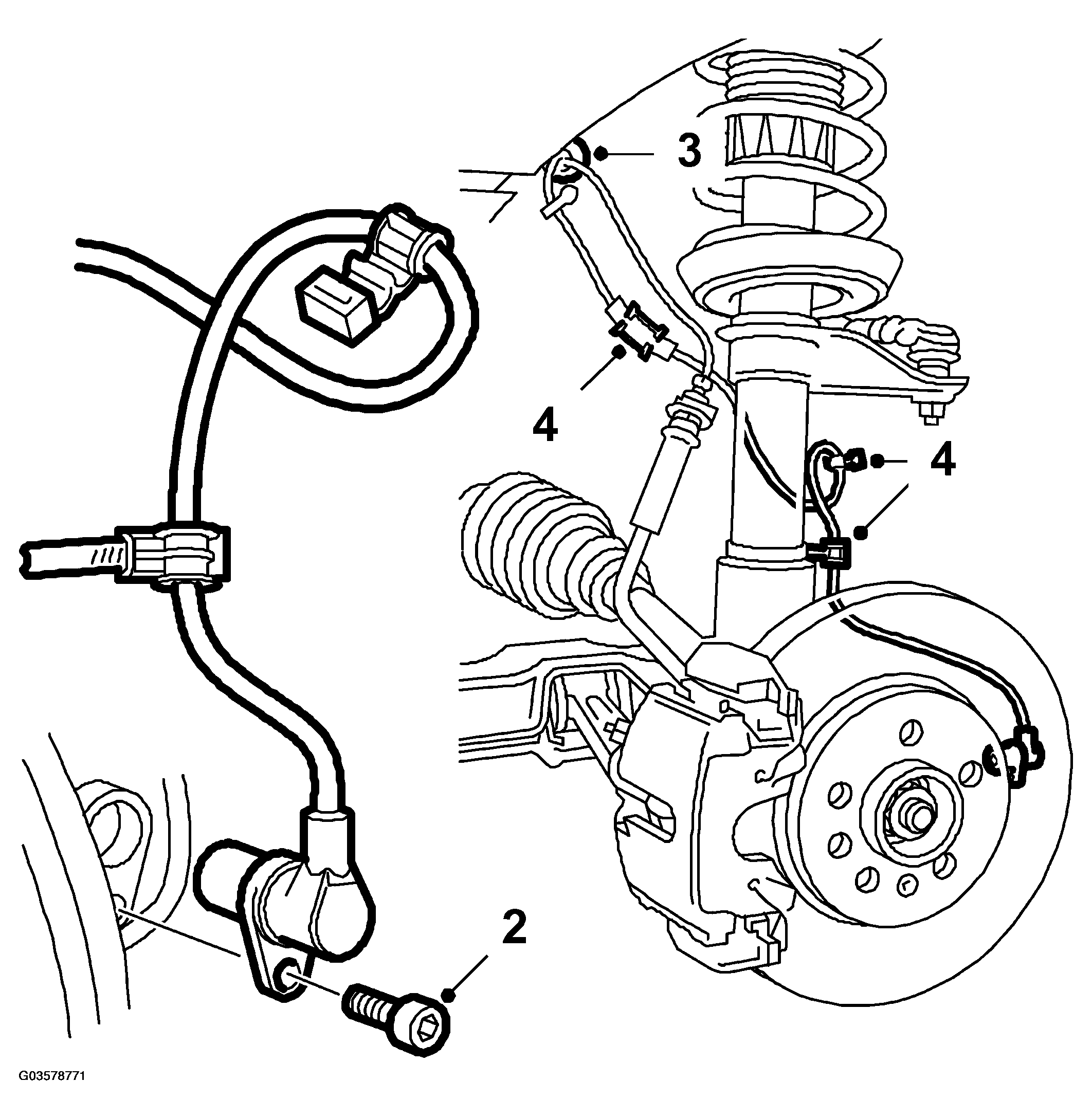

Fig 1: Illustration For Steps 2-4
G03578771Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Insert the lead and press the connector home.
  2. Fit the wheel sensor in its holder and tighten the retaining bolt.
  3. Smear the rubber grommet with a soap solution and fit it in lace.
  4. Press the lead into the retaining clips.
  5. Fit the wheel. Lower the car.

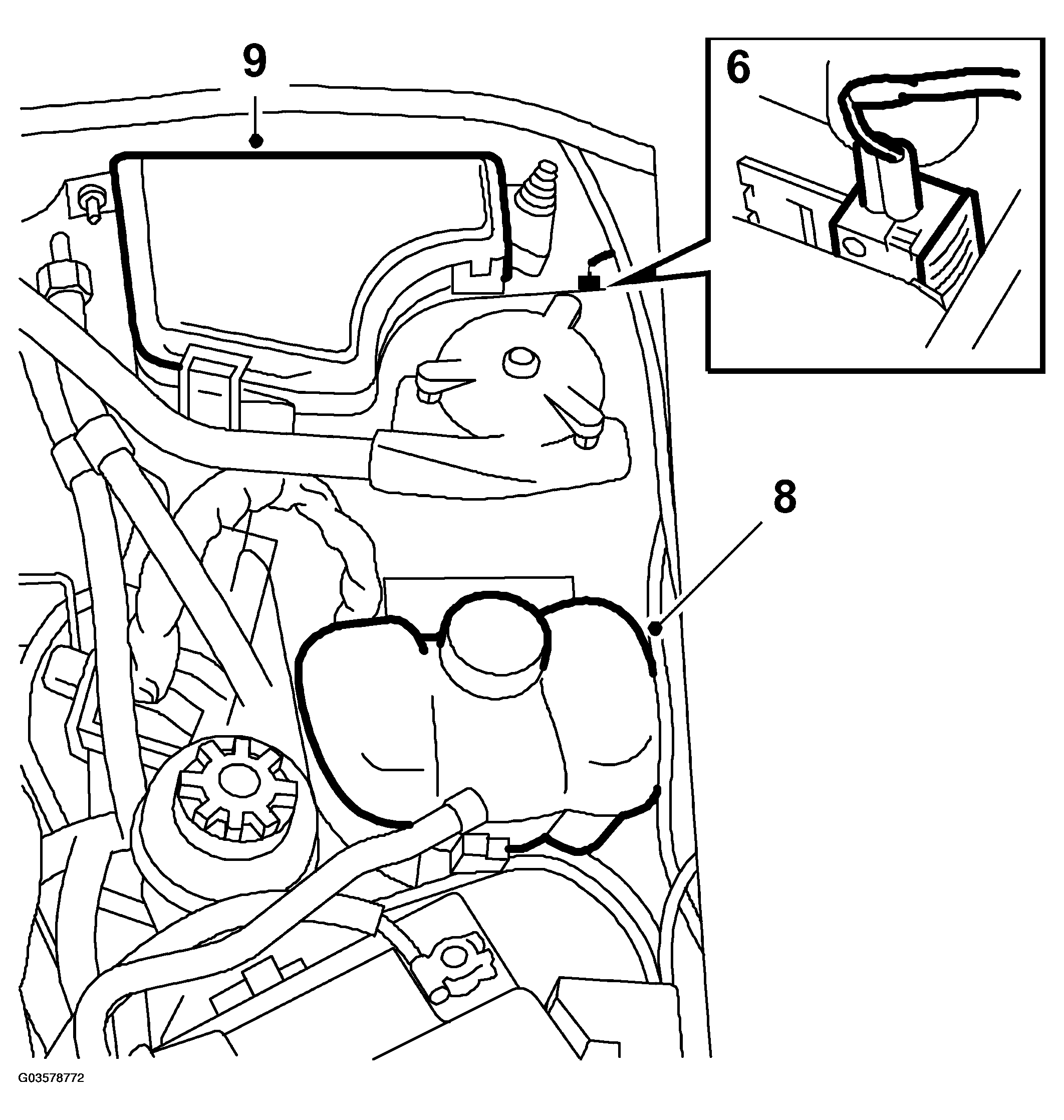

    Fig 2: Illustration For Steps 6 & 8-9
    G03578772Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Tightening torque: 110 Nm (81 lbf ft)

  6. Plug in the connector.
  7. Fit a new cable tie to the suspension strut tower.
  8. Plug in the level sensor's connector and refit the expansion tank.
  9. Fit the main fuse box in place.
