DTC P1670: Relay of limp-home function (open circuit/short circuit to ground): Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

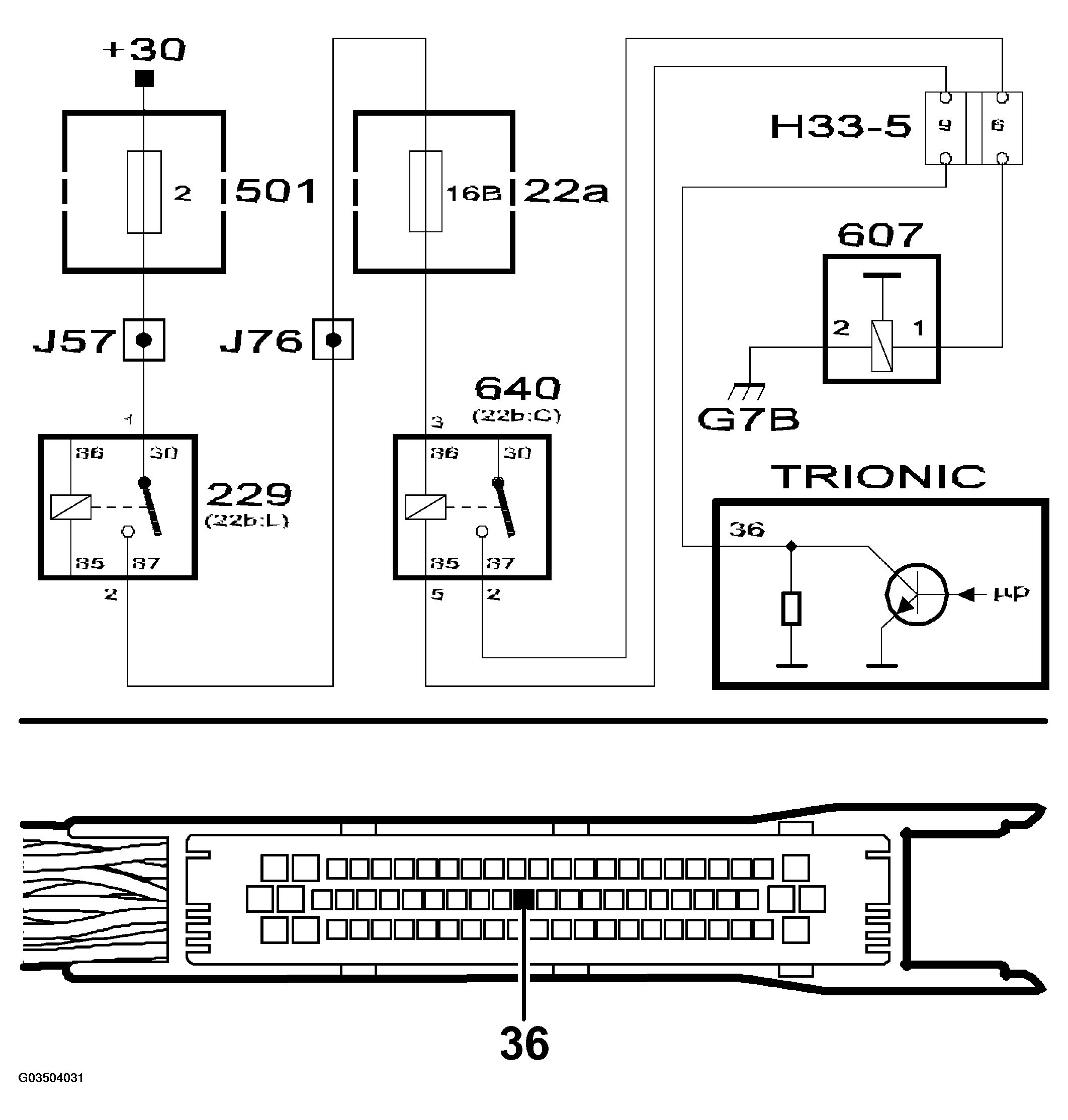

Fig 1: Identifying Circuit Diagram (Relay Of Limp-Home Function, Open Circuit/Short Circuit To Ground)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: The relay/electrical circuit that activates the throttle's limp -home function is faulty.
