DTC C2470: Brake Lights Switch. Open Circuit: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

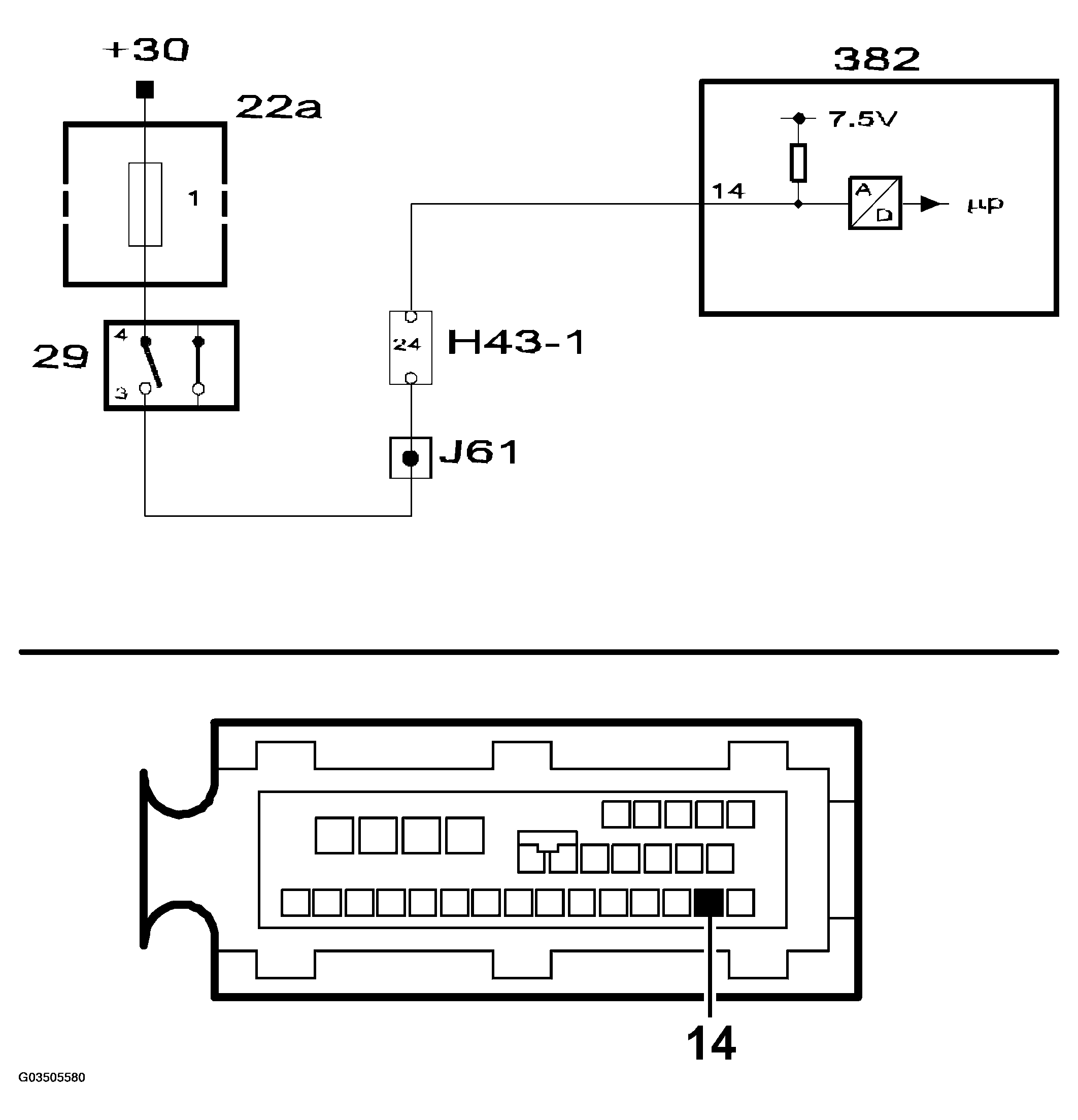

Fig 1: Brake Lights Switch - Circuit Diagram (Open Circuit)
G03505580Courtesy of SAAB-SCANIA OF AMERICA, INC.
