System overview, bus-connected components, cars with engine management system PSG 16

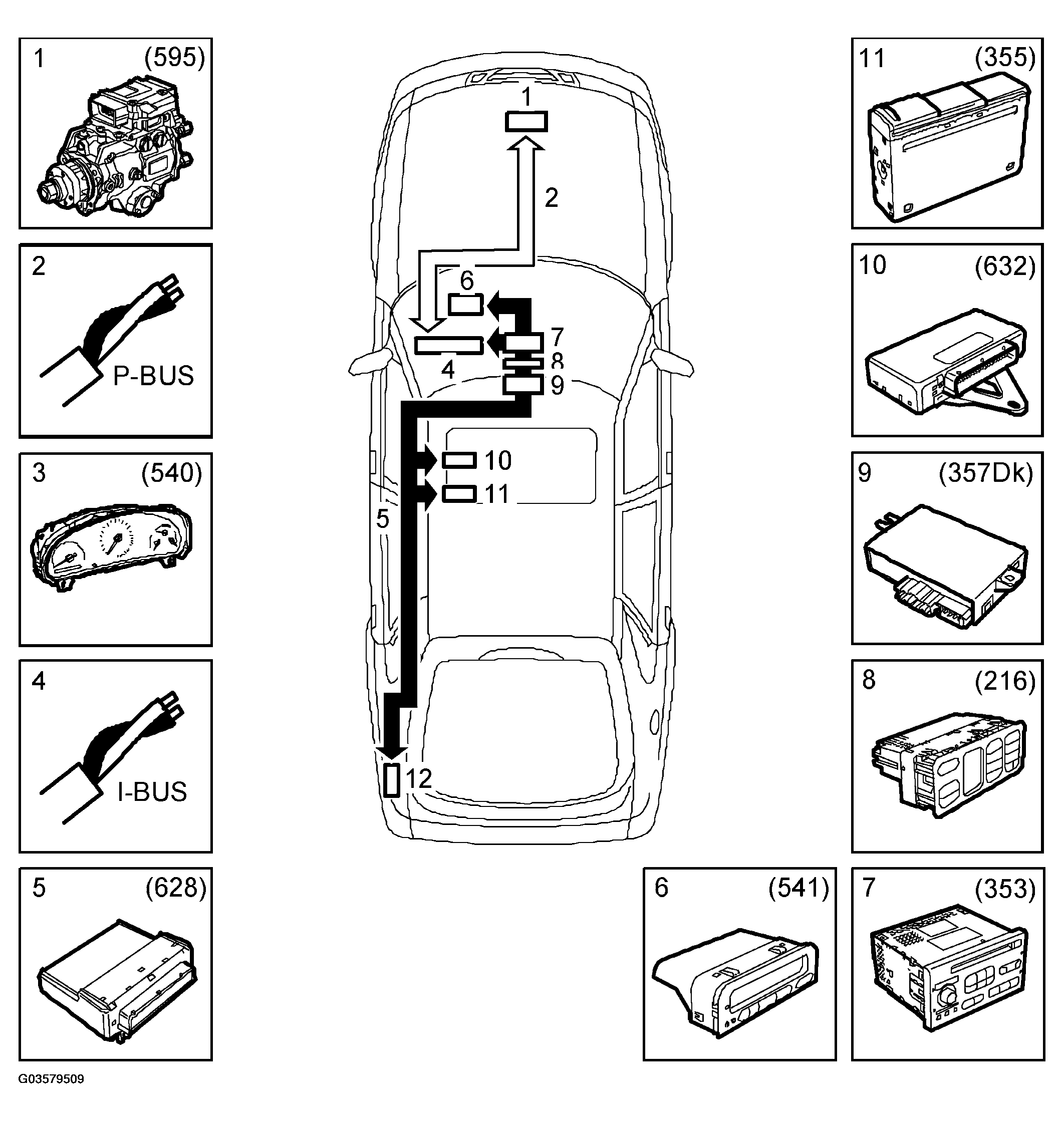

Fig 1: Identifying Bus Components, Cars With PSG 16 Engine Management System

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Fuel pump with control module PSG 16 (595)
2. P-bus (Powertrain bus)
3. MIU (Main Instrument Unit) (540)
4. I-bus (Instrument bus)
5. DICE (Dashboard Integrated Central Electronics) (628)
6. SID (Saab Information Display) (541)
7. Audio system, main unit (353)
8. ACC, (Automatic Climate Control) (216)
9. PSM, (Power Seat Memory), (357Dk)
10. TWICE, (Theft Warning & Integrated Central Electronics) (632)
11. CDC (CD changer) (355)
