Ionization Detection Module (740): Connection: Notes
| Pin No. | Signal type | Description |
|---|---|---|

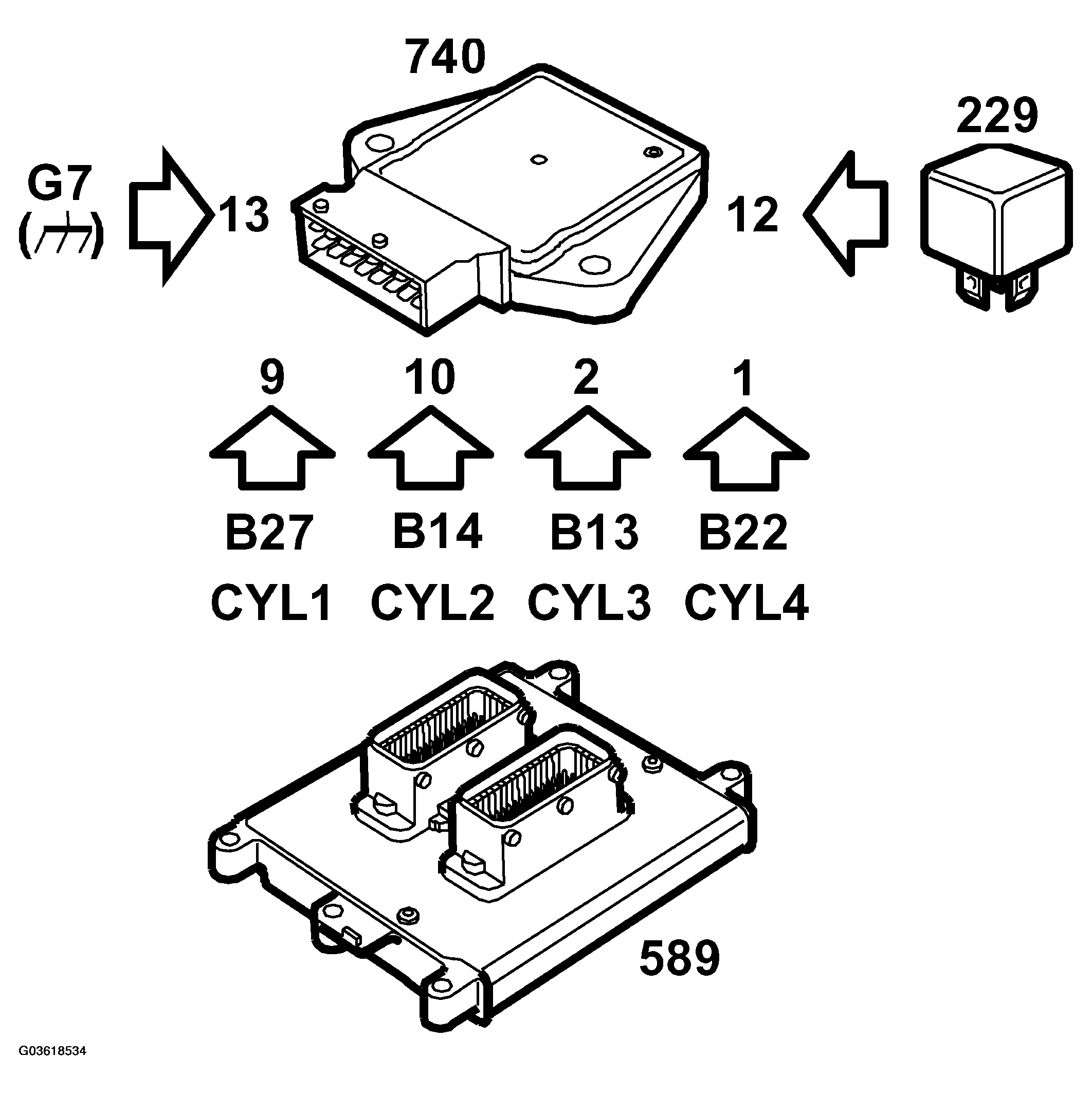

| 1 | Ignition trigger cylinder 4, in | Synchronization of ionization current measurement for cylinder 4 |
| 2 | Ignition trigger cylinder 3, in | Synchronization of ionization current measurement for cylinder 3 |

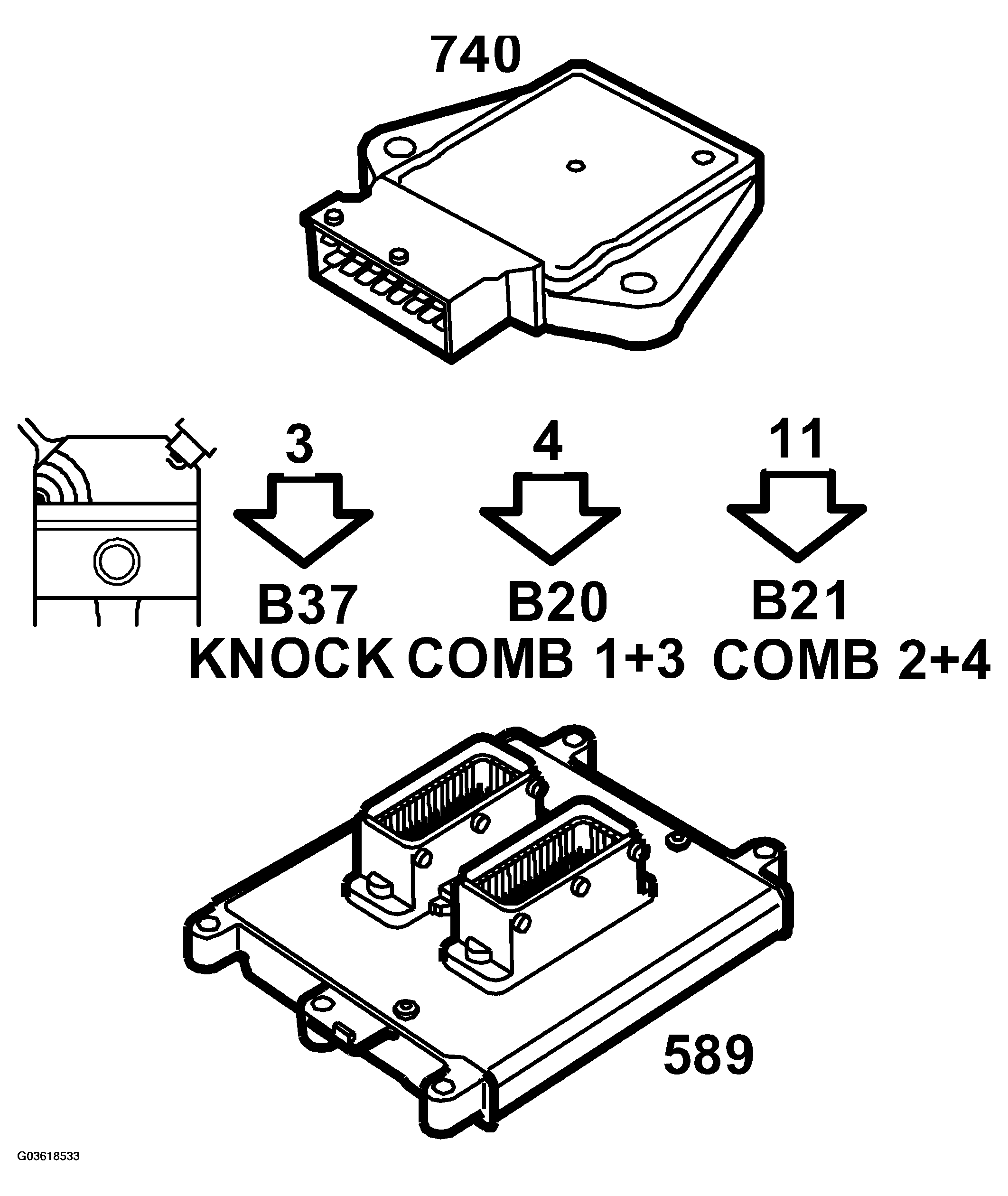

| 3 | Knock signal, out | Knock signal, raw value to ECM |
| 4 | Combustion signal 1, out | Combustion signal, raw value to ECM |
| 5 | n/c | |
| 6 | n/c | |

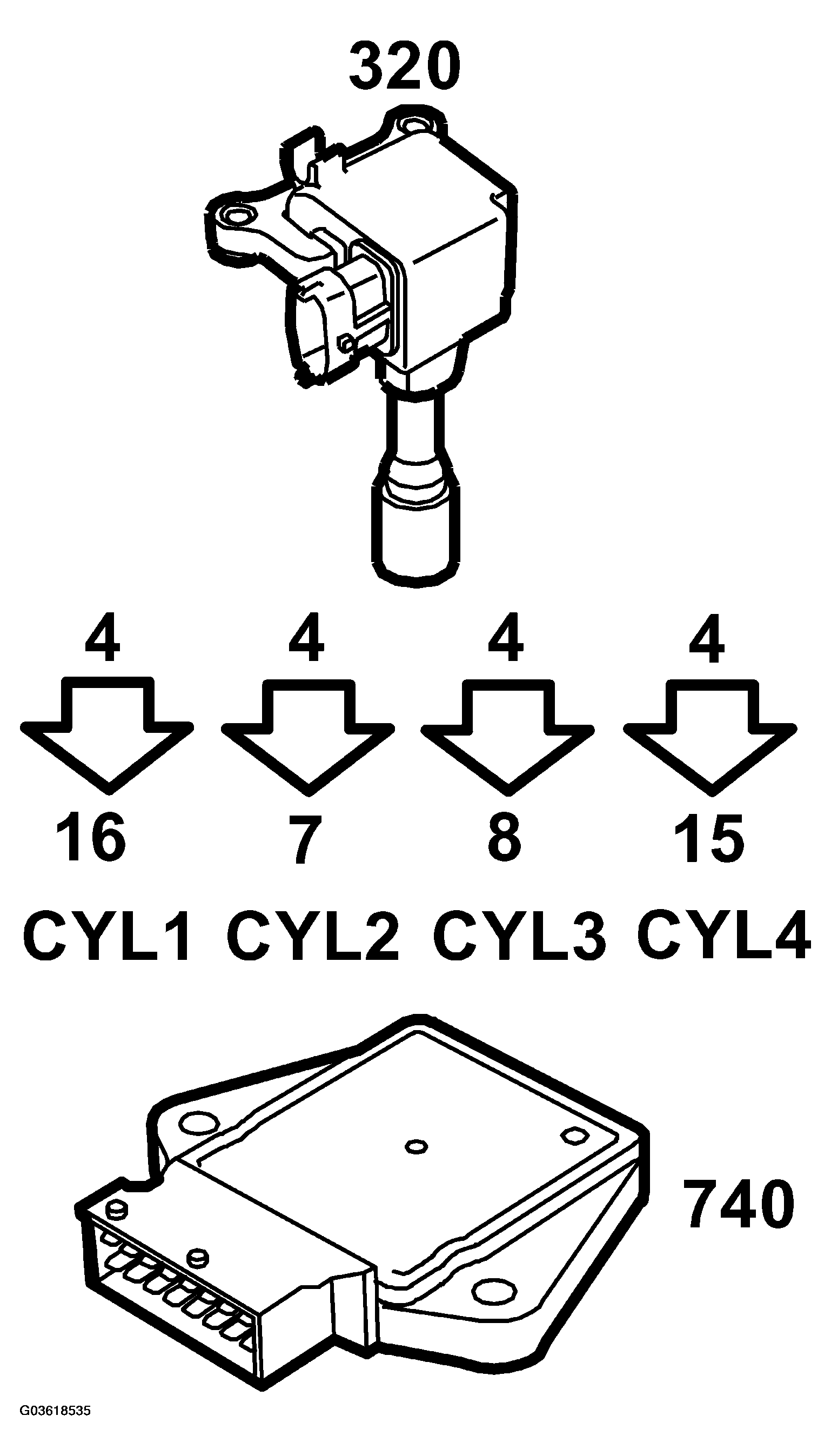

| 7 | Ionization signal 2, in | Ionization signal from ignition coil cylinder 2 |
| 8 | Ionization signal 3, in | Ionization signal from ignition coil cylinder 3 |
| 9 | Ignition trigger cylinder 1, in | Synchronization of ionization current measurement for cylinder 1 |
| 10 | Ignition trigger cylinder 2, in | Synchronization of ionization current measurement for cylinder 2 |
| 11 | Combustion signal 2, out | Combustion signal, raw value to ECM |
| 12 | B+ | Power supply B+ from main relay |
| 13 | B- | power supply B- from grounding point G7 |
| 14 | n/c | |
| 15 | Ionization signal 4, in | Ionization signal from ignition coil cylinder 4 |
| 16 | Ionization signal 1, in | Ionization signal from ignition coil cylinder 1 |
CDM performs an initial processing of the ionization signal from each ignition coil. CDM generates a common knock signal from the ionization information of the four cylinders. This signal is used by ECM to evaluate engine knocks.
After the spark has been fired, ECM " listens" to the knock signal of each cylinder over a certain number of crankshaft degrees, known as " windows" .
The ionization signal is bandpass filtered to filter out the part of the signal containing knock information.
Knock information is characterised by " ringings" which are oscillations in the ionization signal. To obtain the combustion signal, the ionization signal passes a low-pass filter, where relatively slower oscillations pass through.
These ionization signal oscillations make up the part containing information on combustion quality.
