DTC P0118: Engine Coolant Temperature Sensor Circuit. Short to B+/Open circuit.: Notes

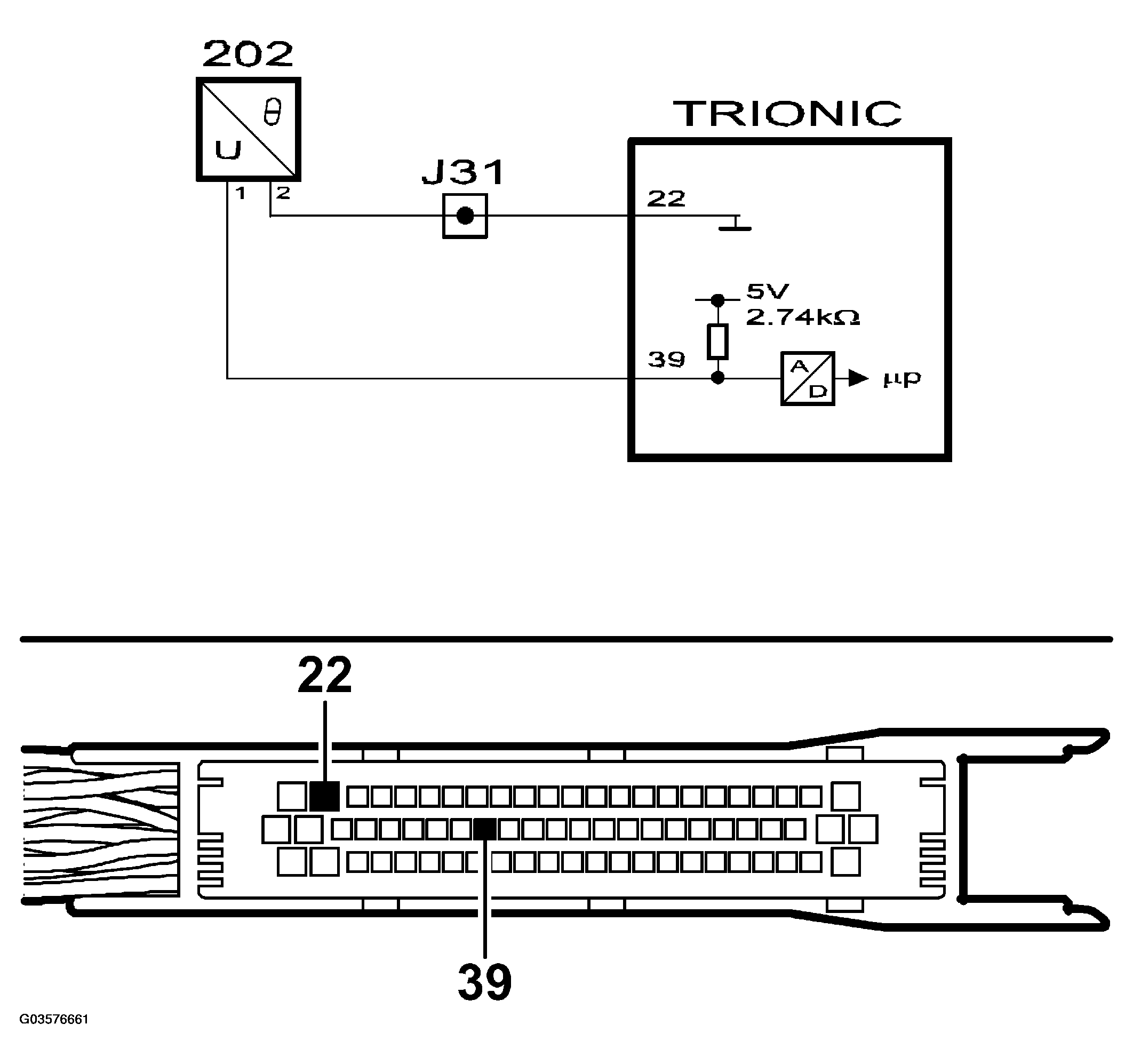

Fig 1: Engine Coolant Temperature Sensor Circuit Diagram - Short To B+/Open Circuit
G03576661Courtesy of SAAB-SCANIA OF AMERICA, INC.
