DTC P0119: Engine Coolant Temperature Circuit. Intermittent Open/Short.: Notes

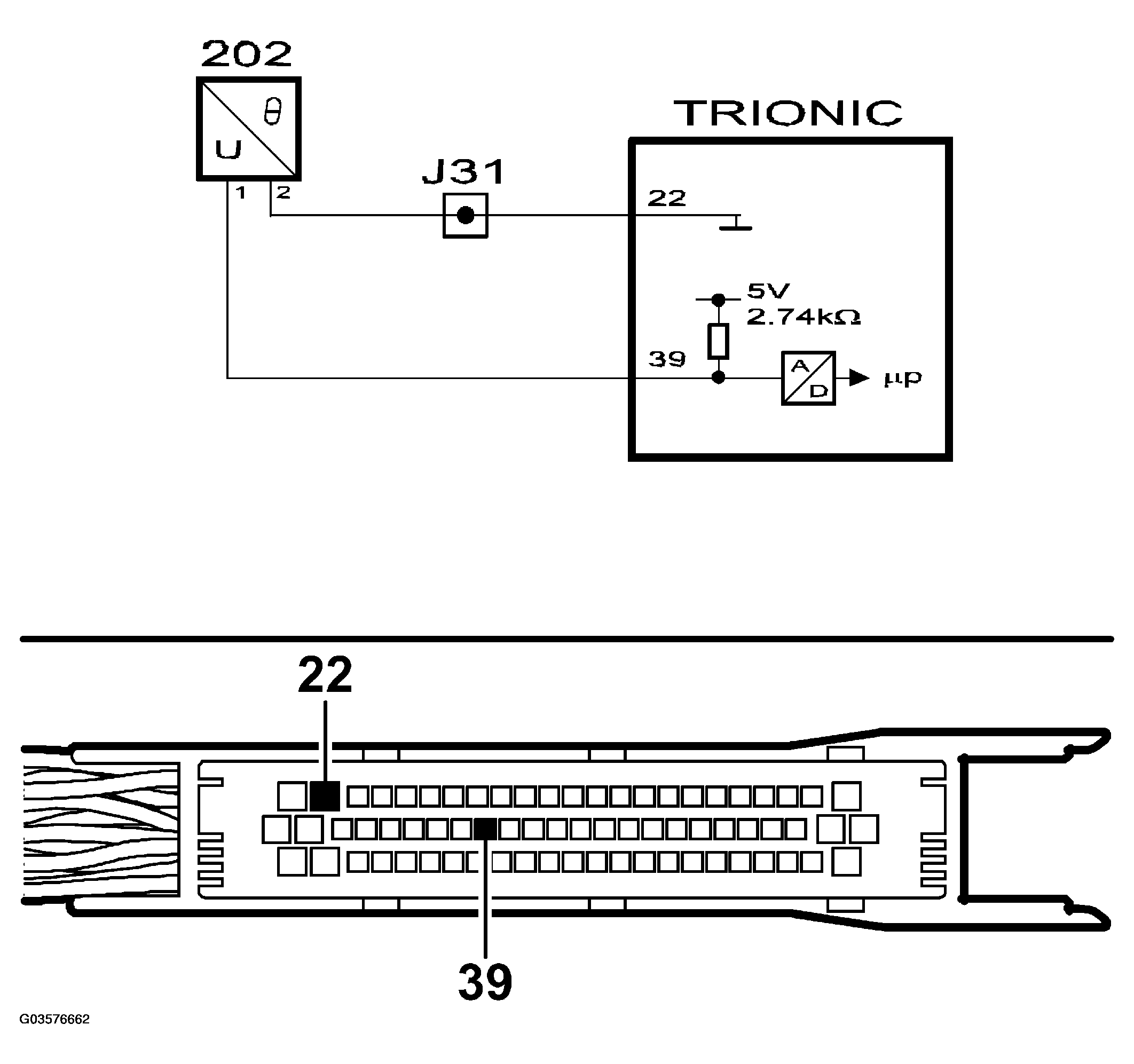

Fig 1: Engine Coolant Temperature Circuit Diagram - Intermittent Open/Short
G03576662Courtesy of SAAB-SCANIA OF AMERICA, INC.
