DTC P0453: EVAP Tank Pressure Sensor Circuit. Open/Short to B+.: Notes

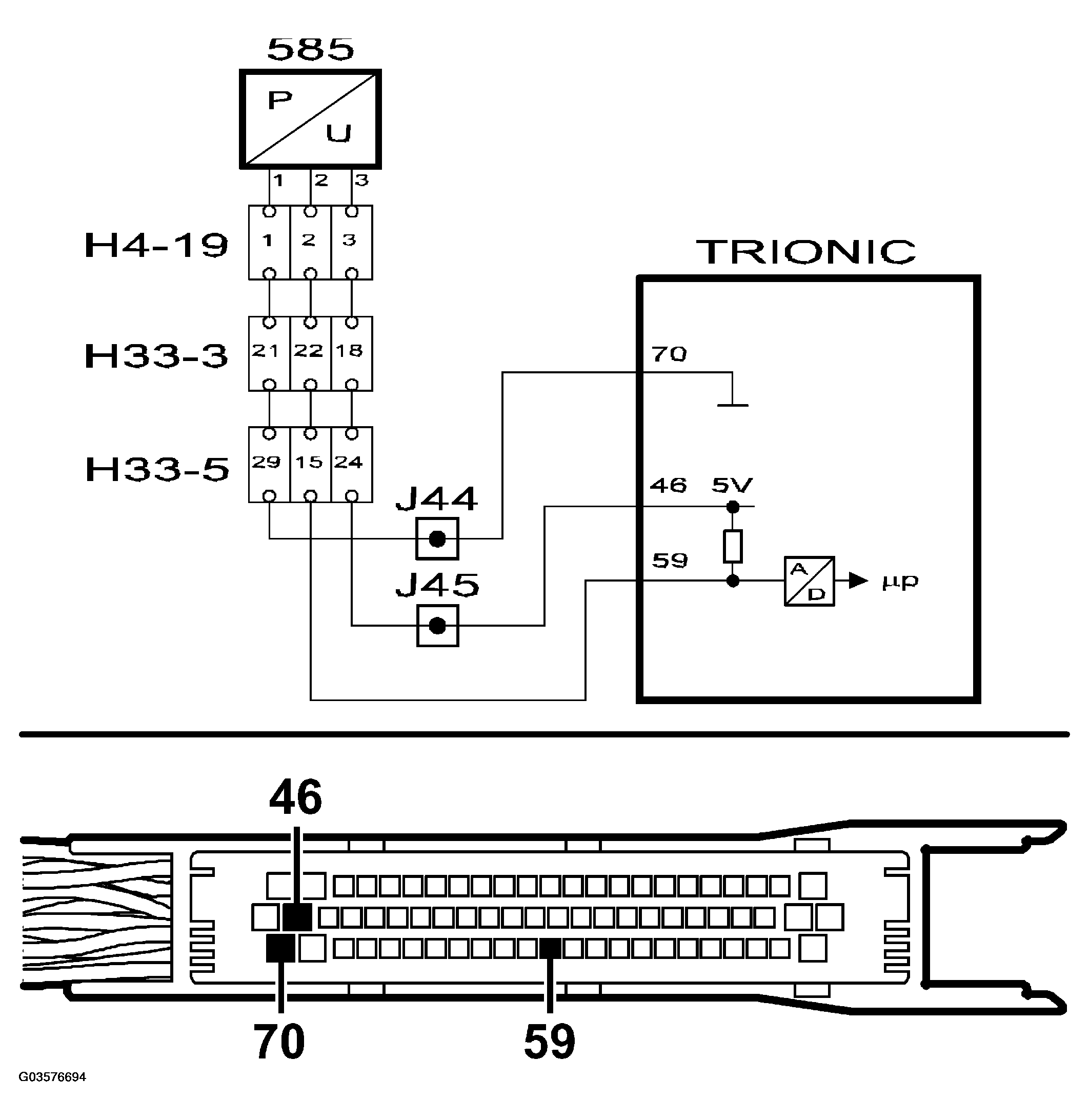

Fig 1: Circuit Diagram - EVAP Tank Pressure Sensor Circuit. Open/Short To B+
G03576694Courtesy of SAAB-SCANIA OF AMERICA, INC.
