DTC P1231: Throttle Position Sensor 1 and 2 Circuit. Sum Out of Range (No Limp Home).: Notes

Brief disturbances in the throttle valve control which causes the engine to surge.

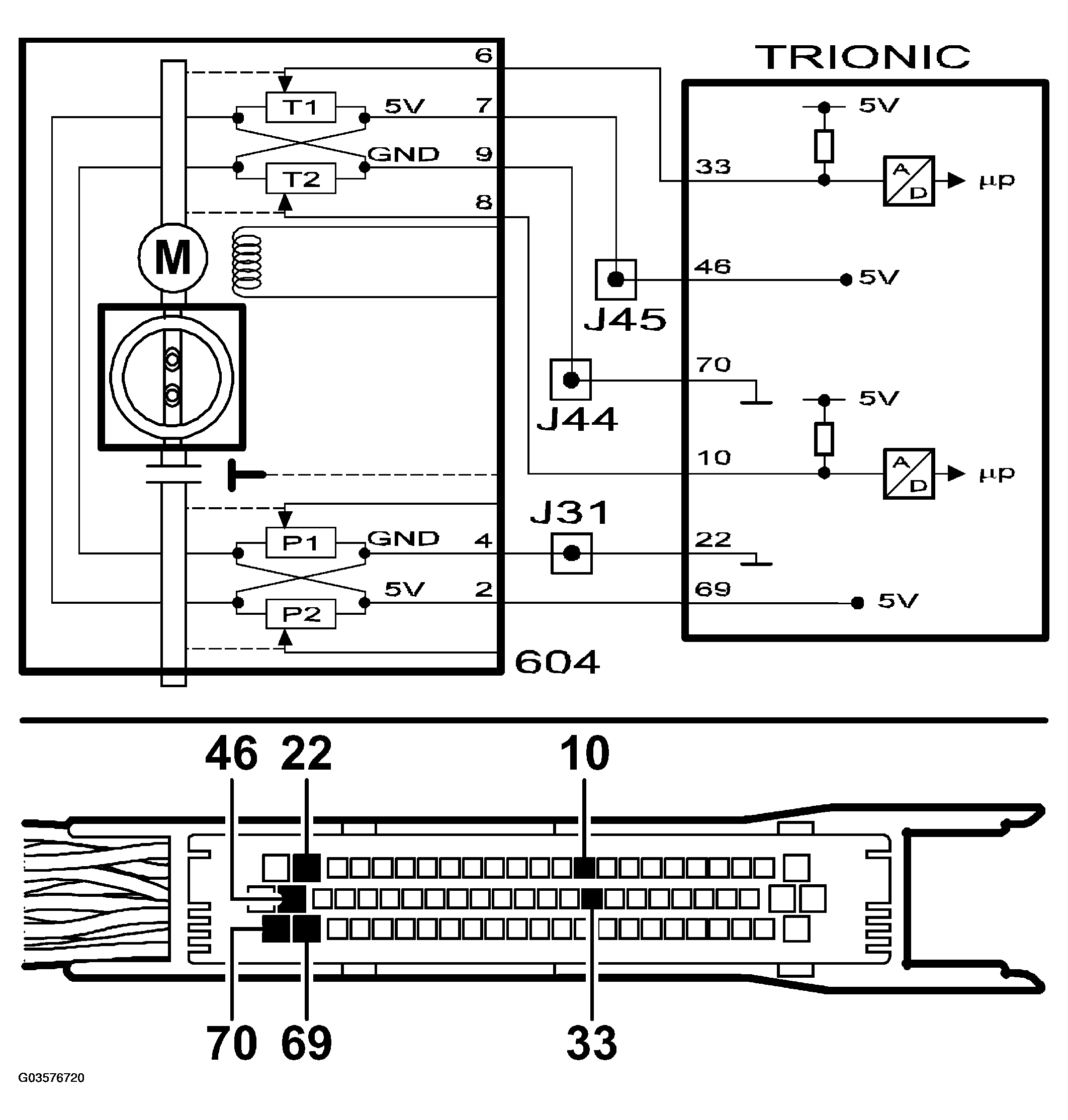

Fig 1: Circuit Diagram - Throttle Position Sensor 1 And 2 Circuit. Sum Out Of Range (No Limp Home)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
