DTC P1240: Throttle Motor Circuit. Shorted.: Notes

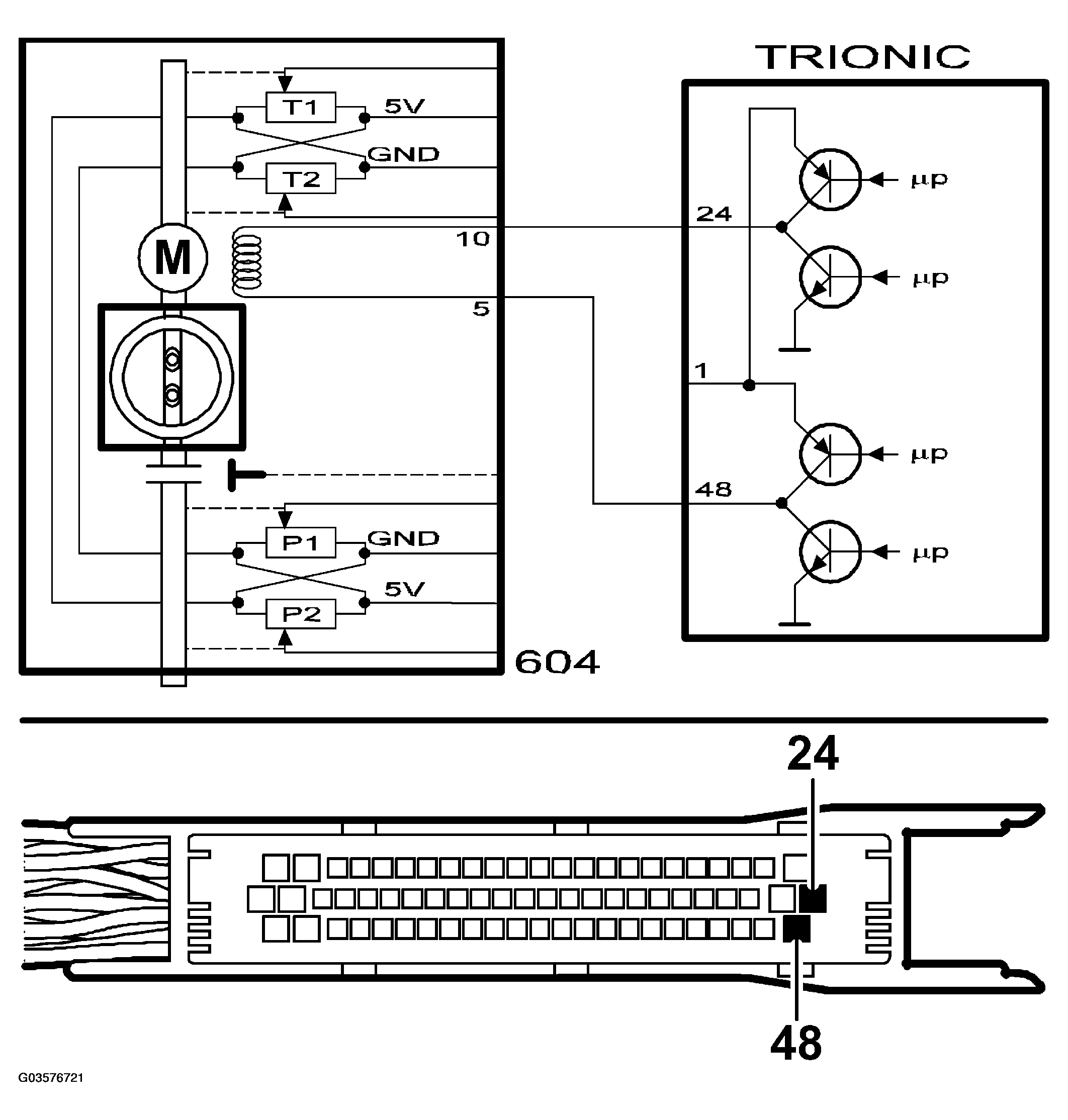

Fig 1: Circuit Diagram - Throttle Motor Circuit. Shorted.
G03576721Courtesy of SAAB-SCANIA OF AMERICA, INC.
