DTC P1264: Throttle Open When Pedal Is Released.: Notes

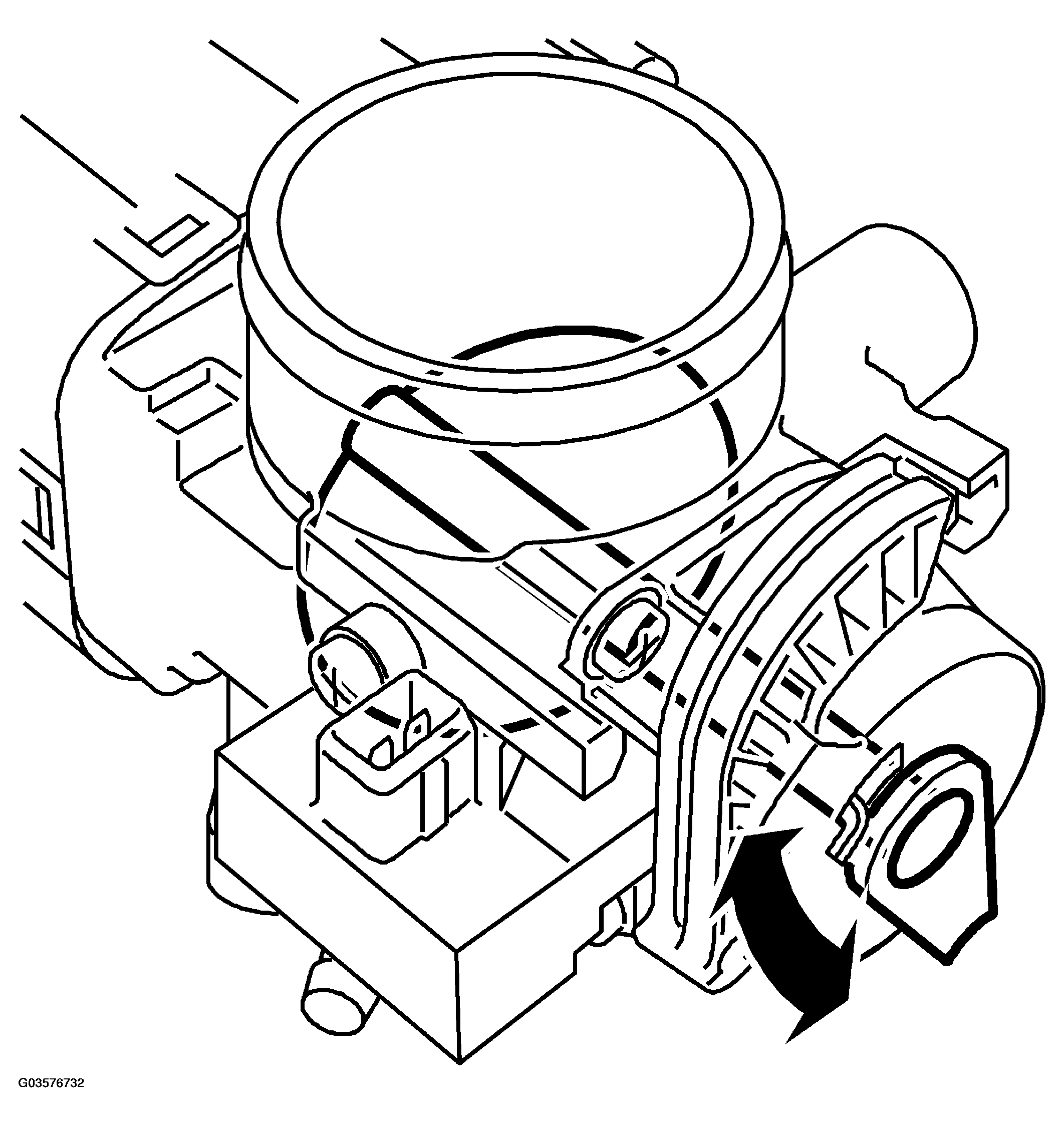

Fig 1: Identifying Throttle Open

Courtesy of SAAB-SCANIA OF AMERICA, INC.

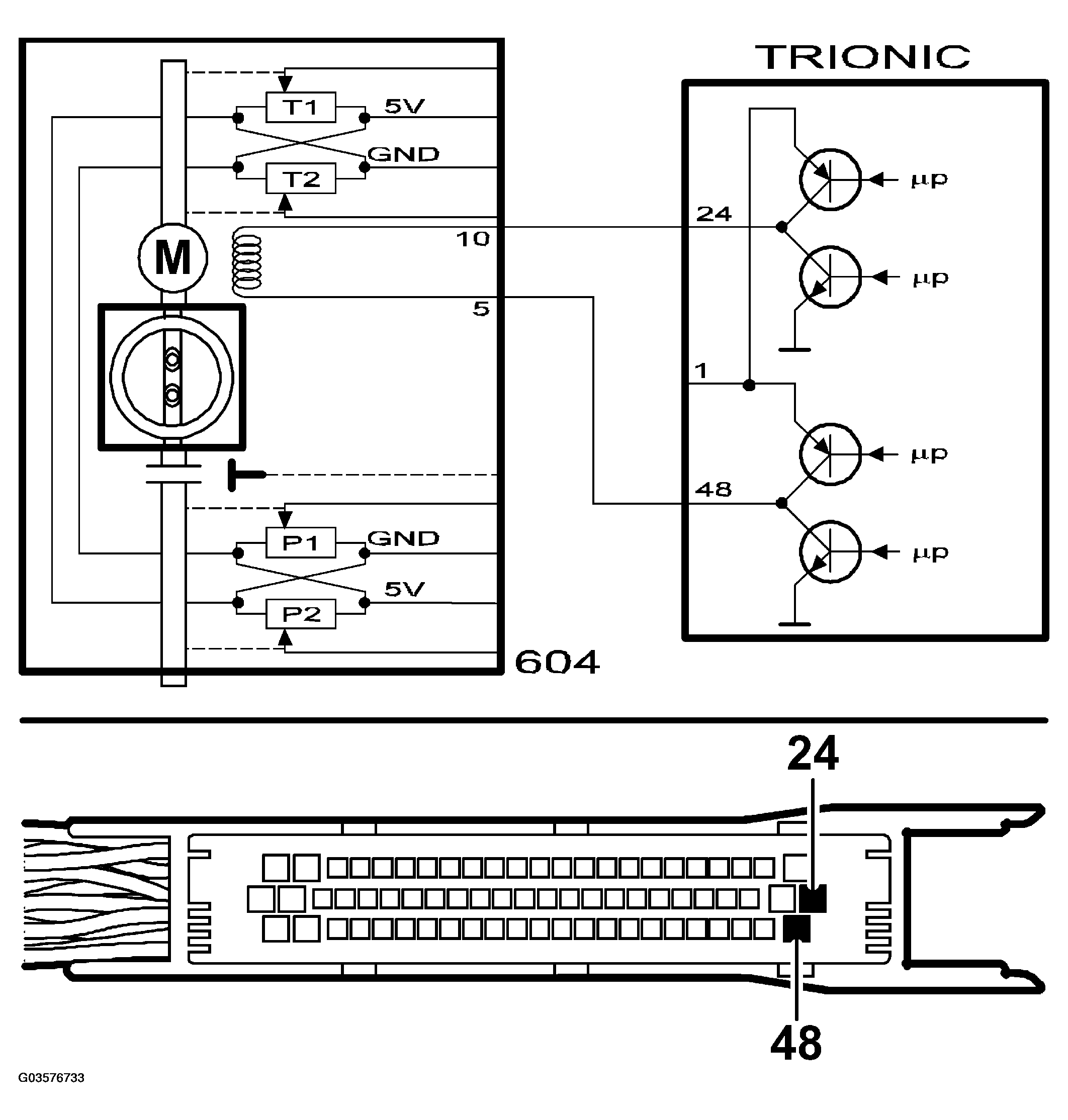

Fig 2: Circuit Diagram - Throttle Open When Pedal Is Released

Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: The throttle disc cannot be closed completely.
