Main function: Notes

The A/C compressor electromagnetic clutch connects the belt pulley driven by the drive belt system and the A/C compressor crankcase in order to cool the climate control unit.

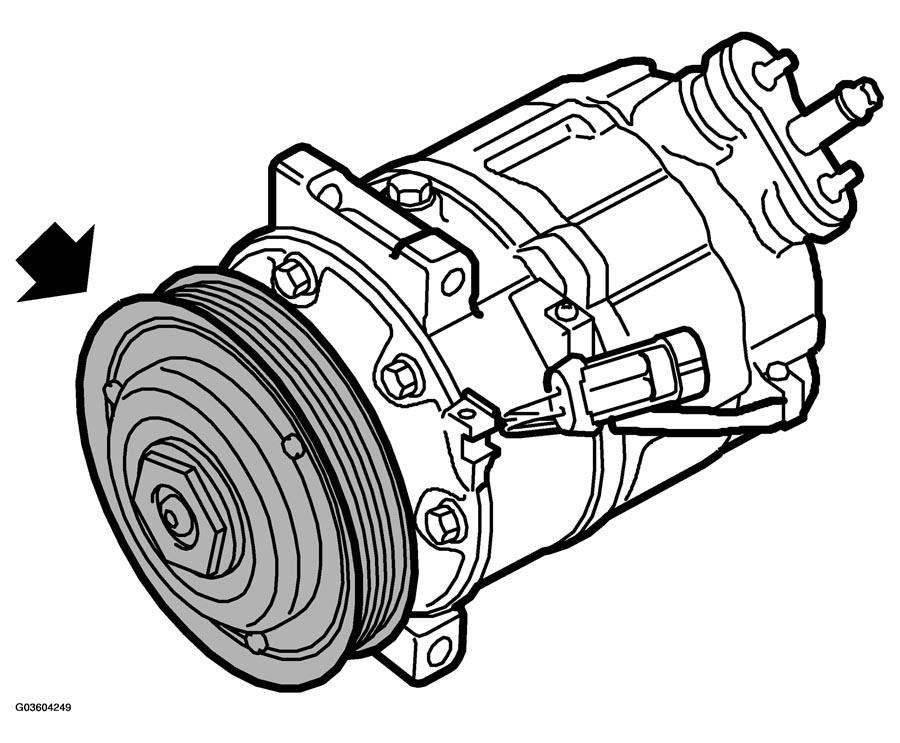

Fig 1: Identifying Compressor Belt Pulley
G03604249Courtesy of SAAB-SCANIA OF AMERICA, INC.
