DTC P0327: Knock Sensor Circuit. Low Input, Bank 1.: Notes

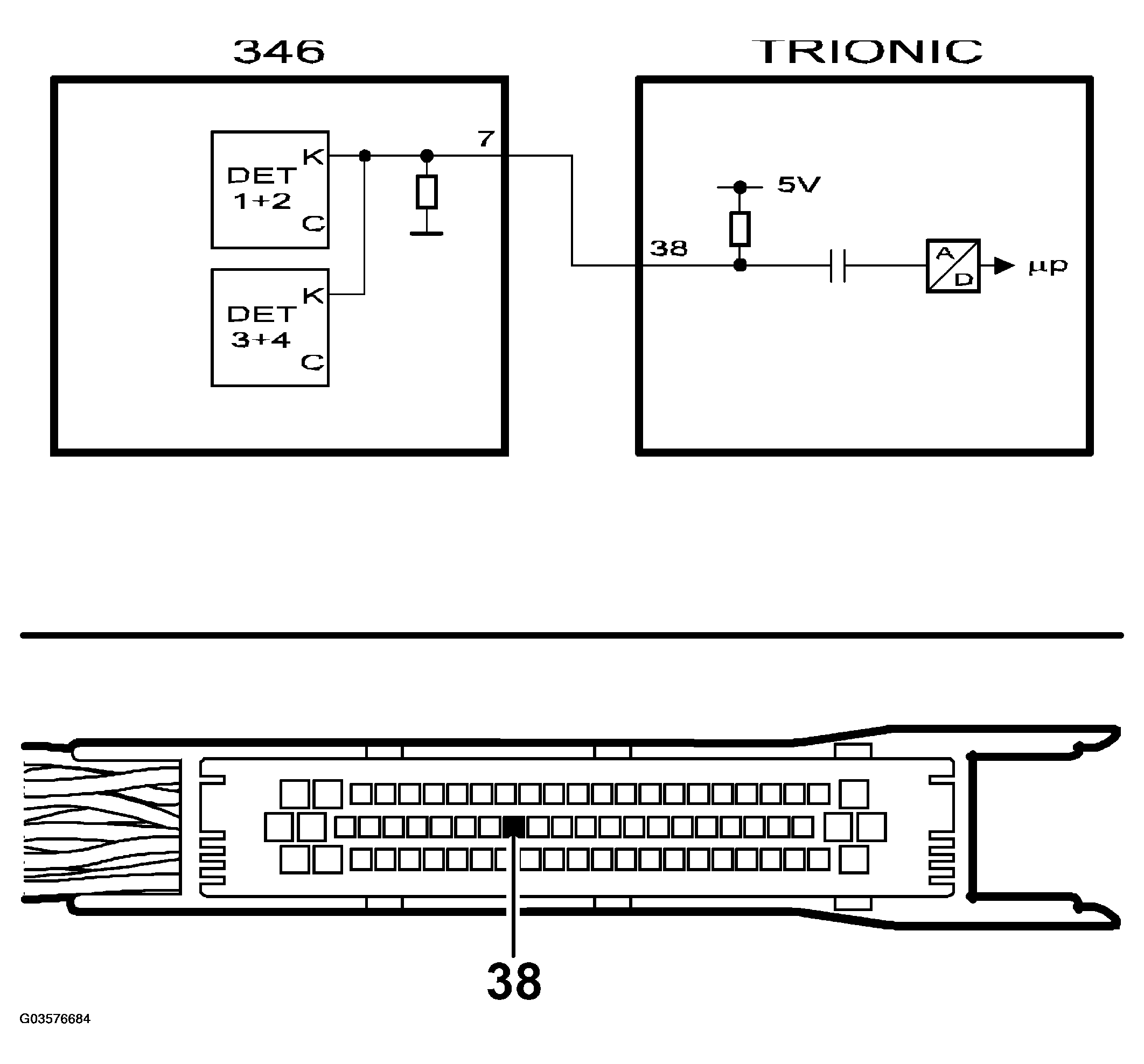

Fig 1: Knock Sensor Circuit Diagram - Low Input - Bank 1
G03576684Courtesy of SAAB-SCANIA OF AMERICA, INC.
