Control module inputs

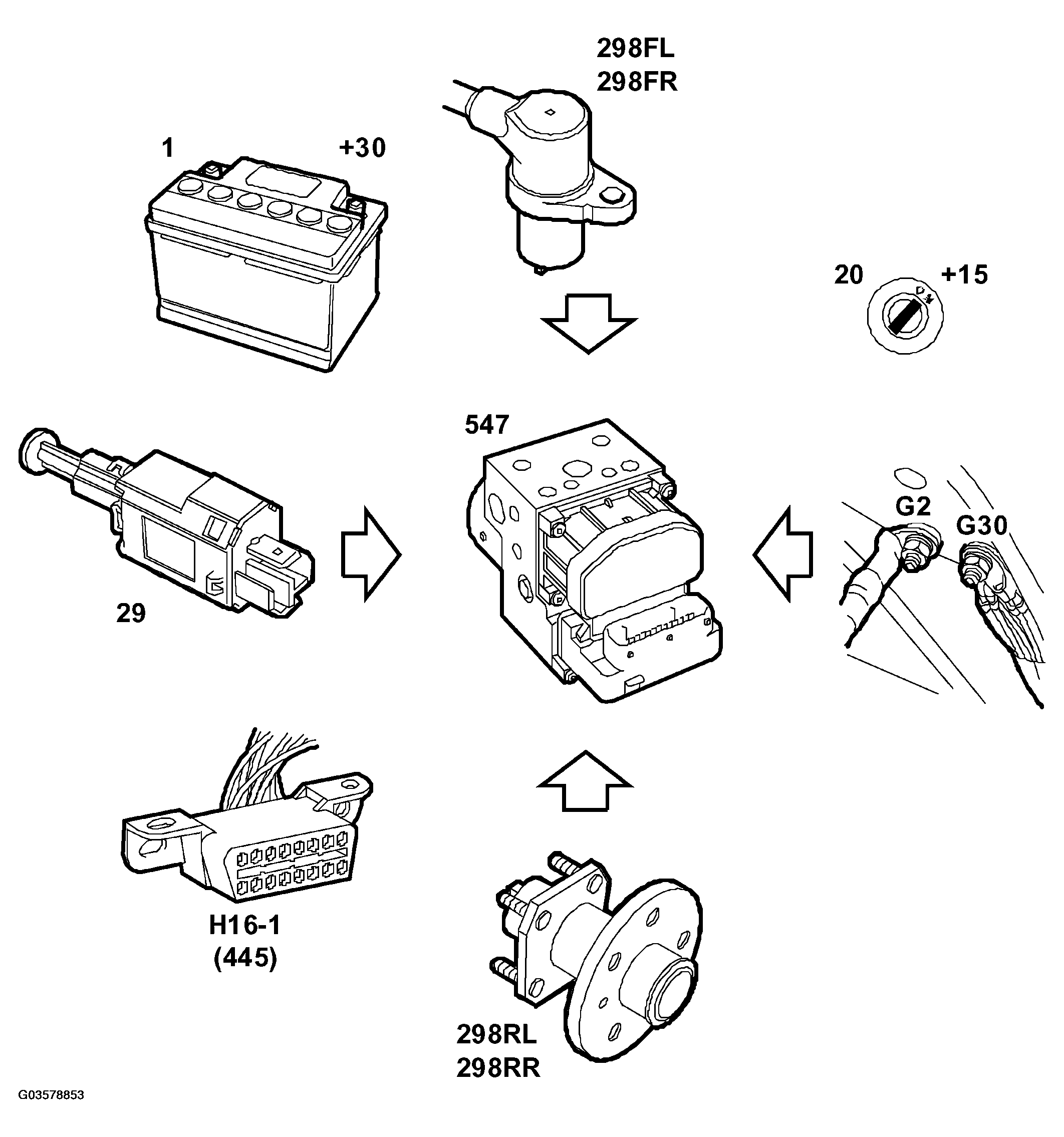

Fig 1: Identifying Control Module Inputs Components

G03578853

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Voltage (+30 circuit) (1).
Voltage (+15 circuit) (20).
Ground (G30, G2).
Wheel sensors, front (298RL, 298FR).
Wheel sensors, rear (298RL, 298RR).
Brake-light switch (29).
Data link (445).
