DTC P1312: Combustion Detection Cyl. 1+2 (Open Circuit/Short to B+): Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

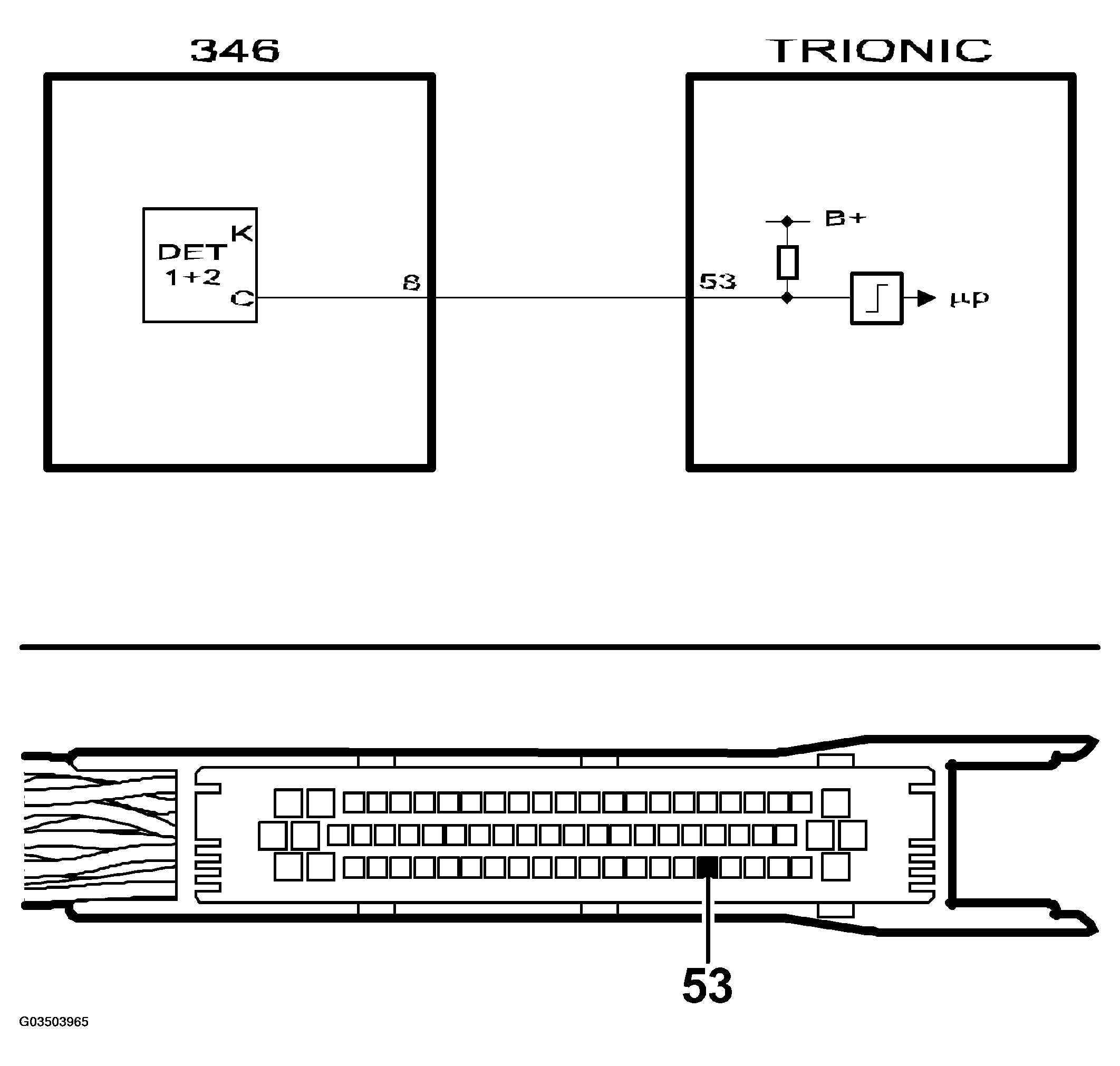

Fig 1: Circuit Diagram - Combustion Detection Cyl. 1+2 - Open Circuit/Short To B+
G03503965Courtesy of SAAB-SCANIA OF AMERICA, INC.
