DTC P1531: Pedal Position Sensor 1 and 2 Circuit Adapted Sum Out of Range: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

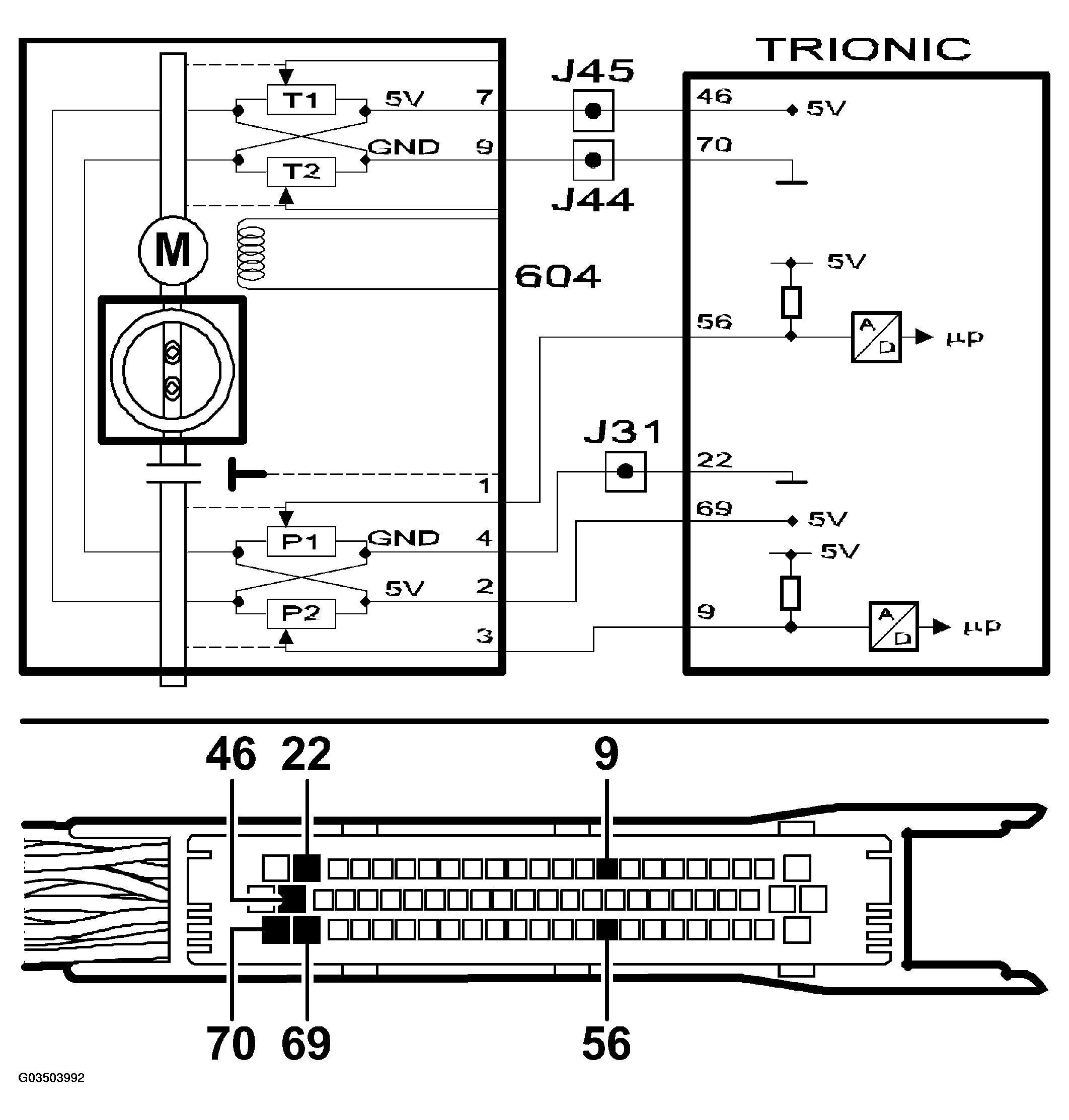

Fig 1: Identifying Pedal Position Sensor 1 And 2 Circuit Diagram - Adapted Sum Out Of Range
G03503992Courtesy of SAAB-SCANIA OF AMERICA, INC.
