DTC B2050: Main Down Switch - Function Incorrect: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

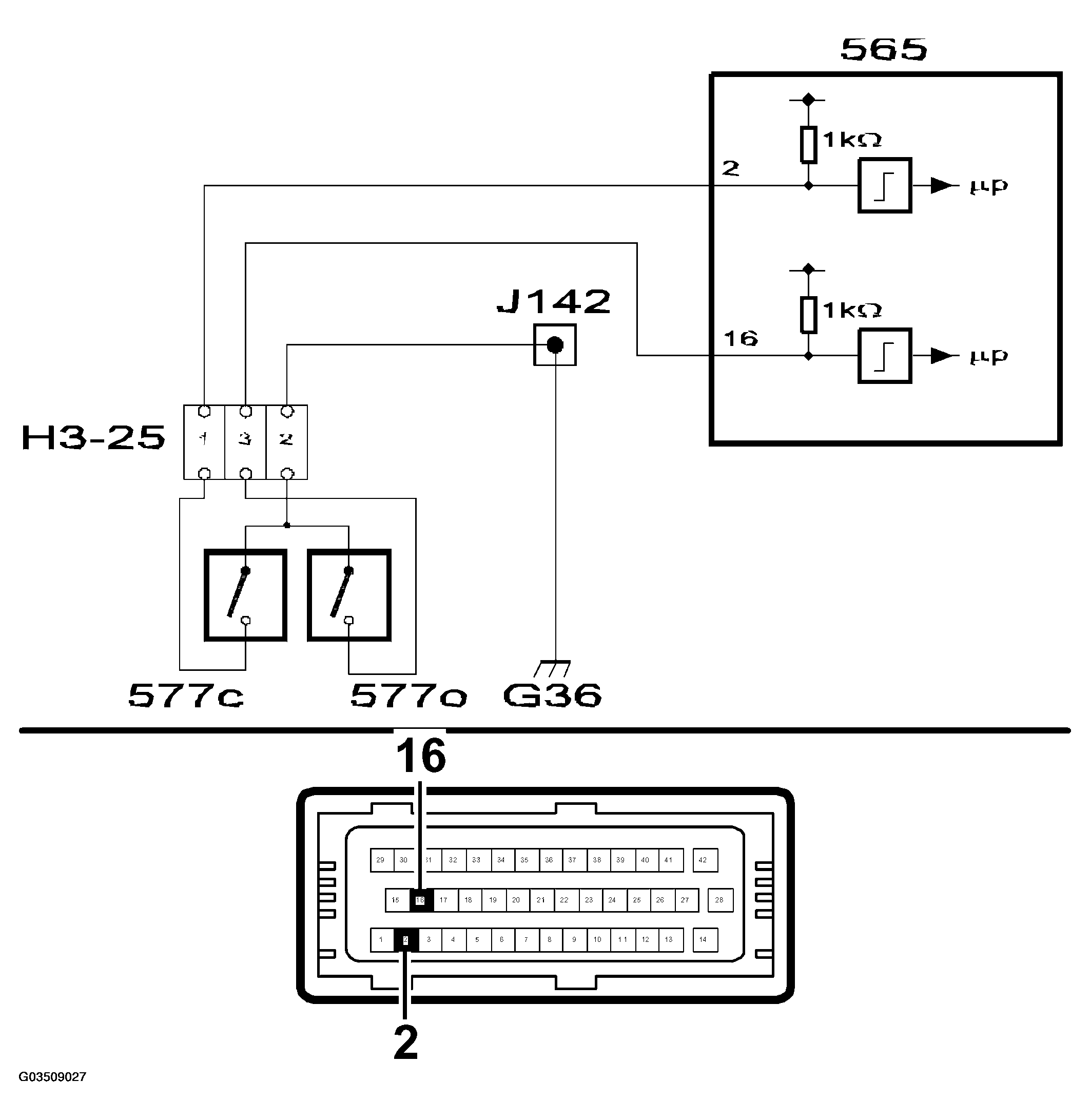

Fig 1: Main Down Switch - Circuit Diagram (Function Incorrect)
G03509027Courtesy of SAAB-SCANIA OF AMERICA, INC.
