Power supply, ground and bus communication

PIN SIGNAL TYPE DESCRIPTION

Pin No. Signal type Description
1 P-bus + Signal to/from other control modules
2 P-bus - Signal to/from other control modules
19 Power supply +15 From UEC pin 19 (F).
20 Ground Control module ground in the body.

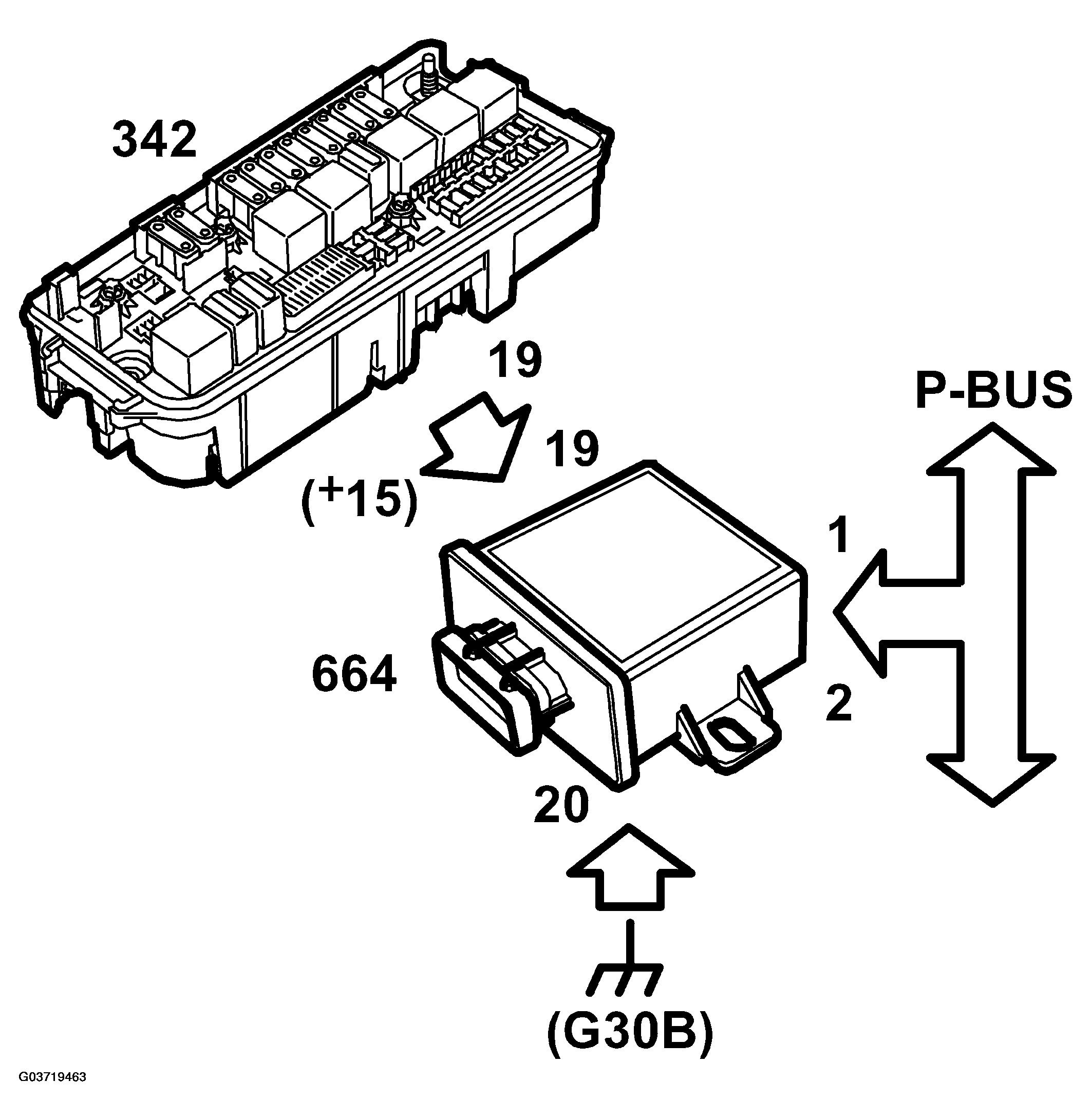

Fig 1: Identifying AHL Control Module Communication Diagram
G03719463Courtesy of SAAB-SCANIA OF AMERICA, INC.

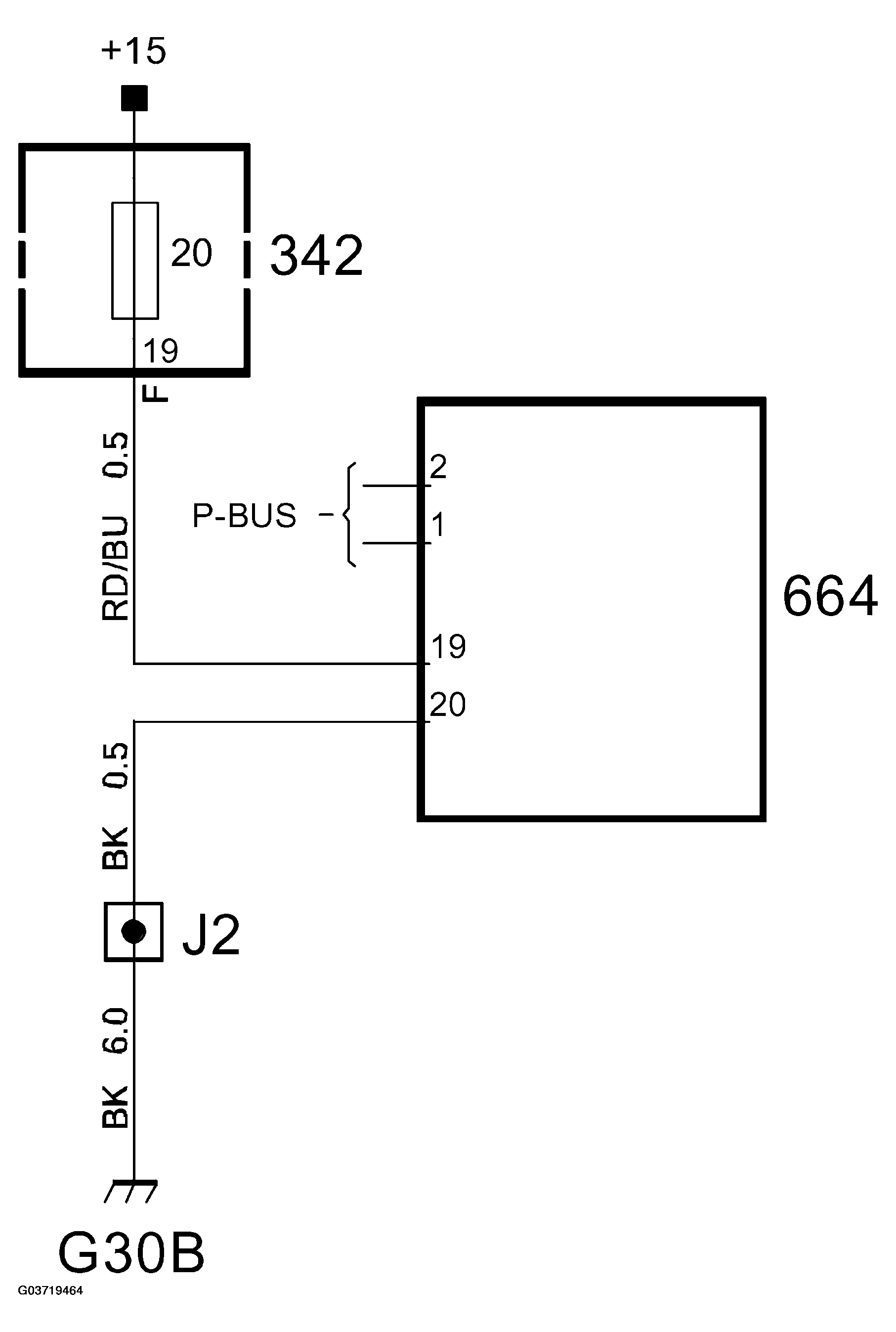

Fig 2: Identifying AHL Control Module Circuit Diagram
G03719464Courtesy of SAAB-SCANIA OF AMERICA, INC.
