Main function

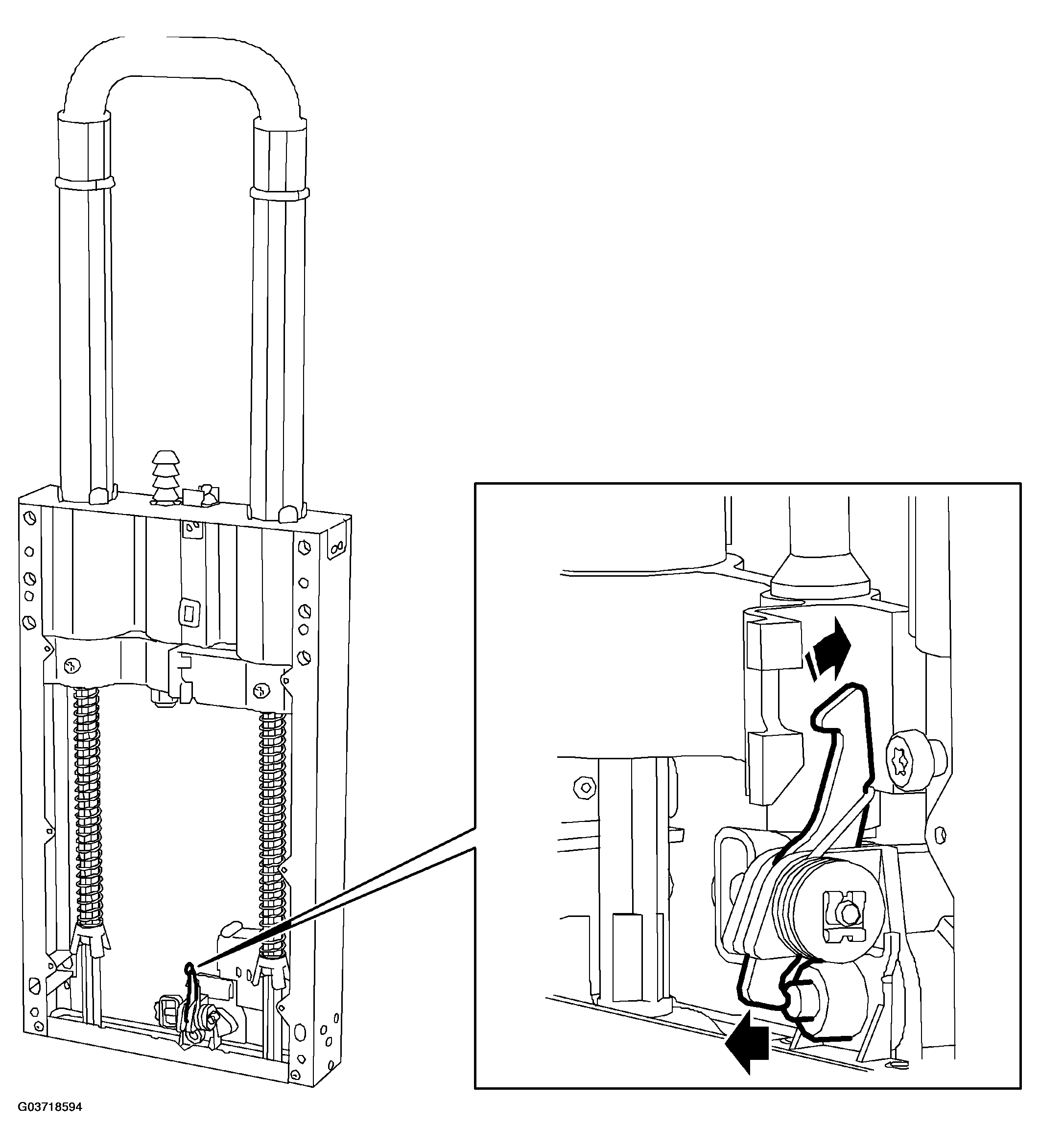

Fig 1: Locating Driver/Passenger Side Activation Unit

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The activation unit is activated when the control module (ACM) receives information that the vehicle is beginning to roll. The activation unit releases the lower hook which holds the protective bow down in a pretensioned position, and the lock is opened. The protective bow extends under spring force.
