Motor, fuel pump (323): Location:: Trionic

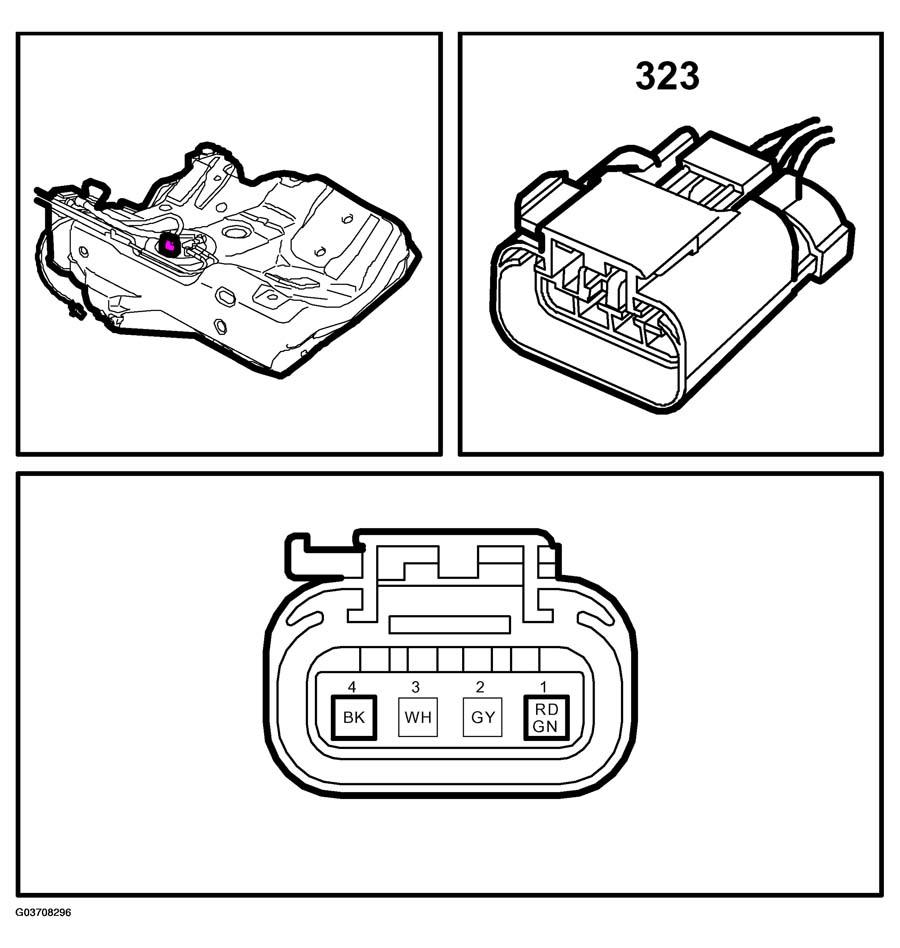

Fig 1: Identifying Motor, Fuel Pump Connector Pinout (Trionic)
G03708296Courtesy of SAAB-SCANIA OF AMERICA, INC.
