Connector H24-2 (T8): Location:

Grey connector in front of battery on side of left structural member

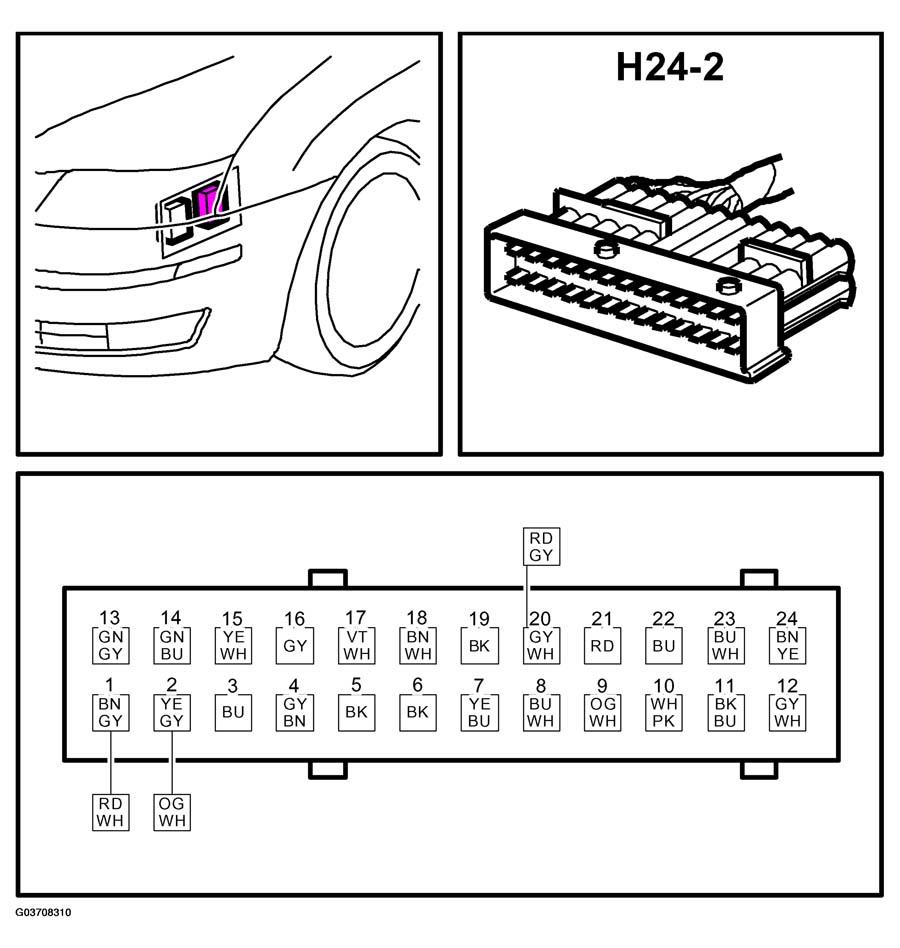

Fig 1: Identifying H24-2 Connector Pinout (T8)
G03708310Courtesy of SAAB-SCANIA OF AMERICA, INC.
