To remove

  1. Remove the upper engine cover.

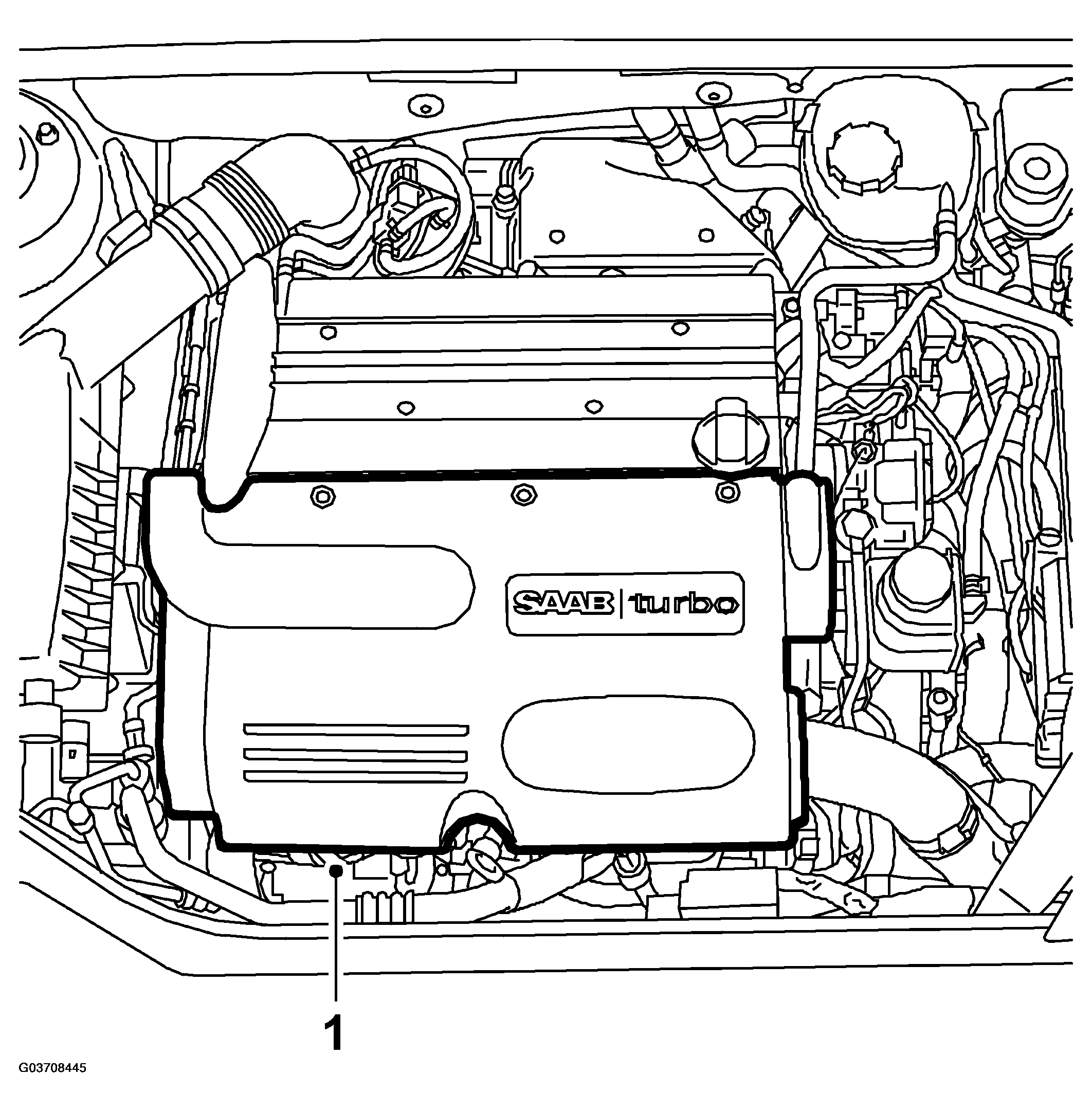

    Fig 1: Illustration For Step 1
    G03708445Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Carefully press down the catch with a screwdriver and unplug the connector.

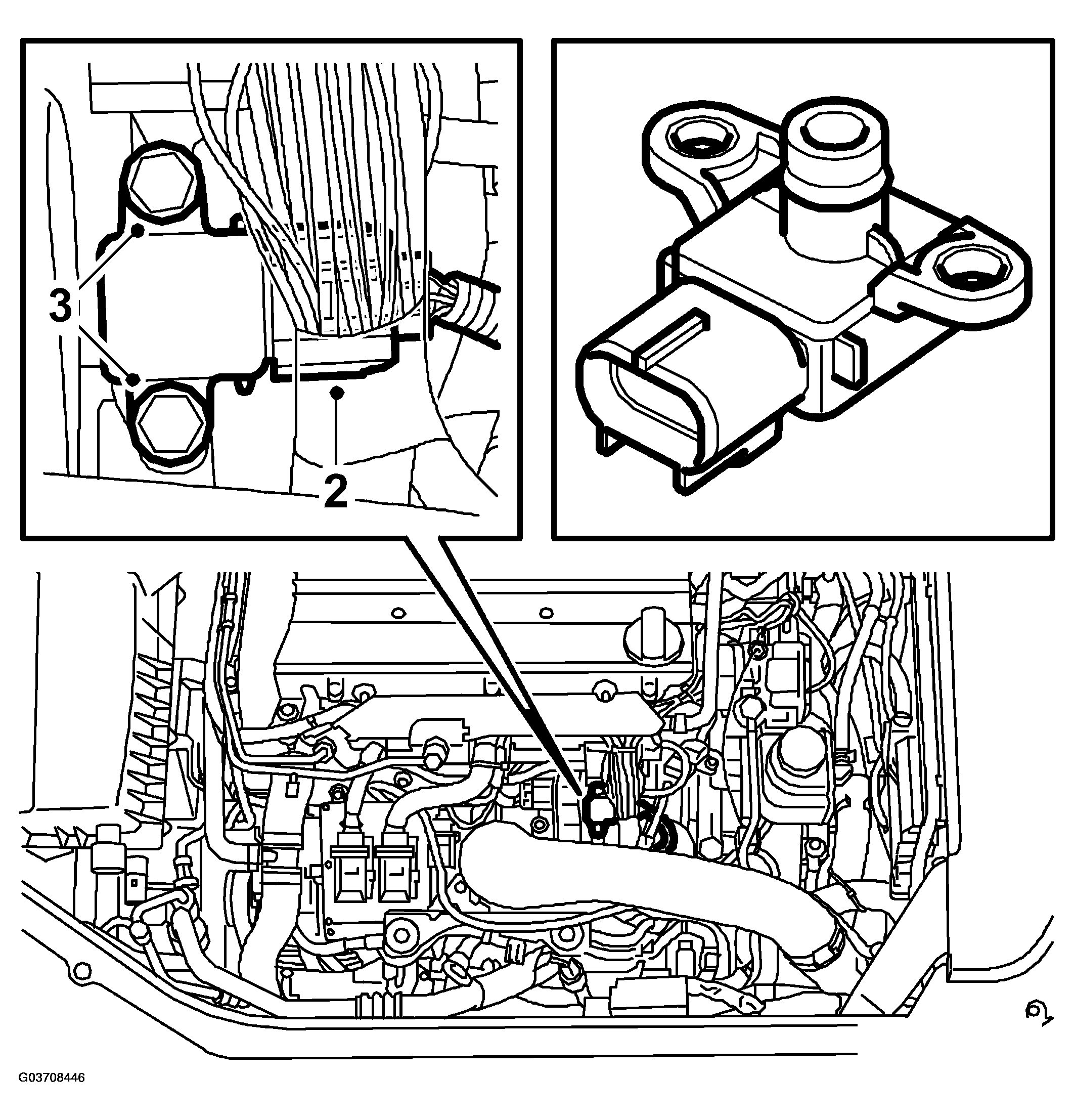

    Fig 2: Illustration For Step 2-3
    G03708446Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the sensor.
