To remove

WARNING: This page is about a different car, the 2005 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carry out "PROCEDURE BEFORE REMOVING THE CONTROL MODULE  ".

    Remove the steering wheel.

  2. Remove the gaiter from the control module and press it against the instrument panel.

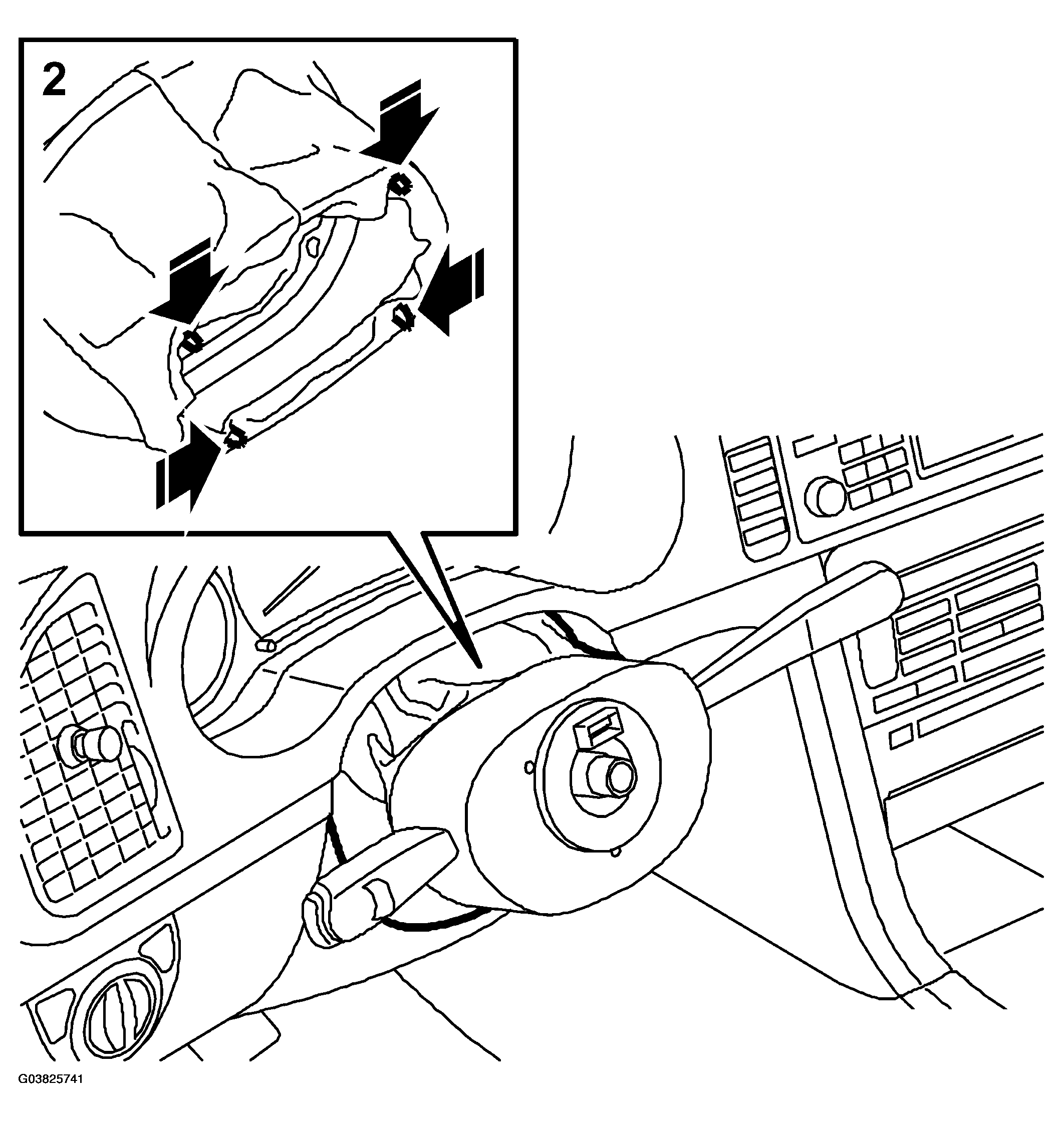

    Fig 1: Removing Gaiter From Control Module
    G03825741Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the control module from the steering shaft. Press in the steering column while pulling the control module outwards.

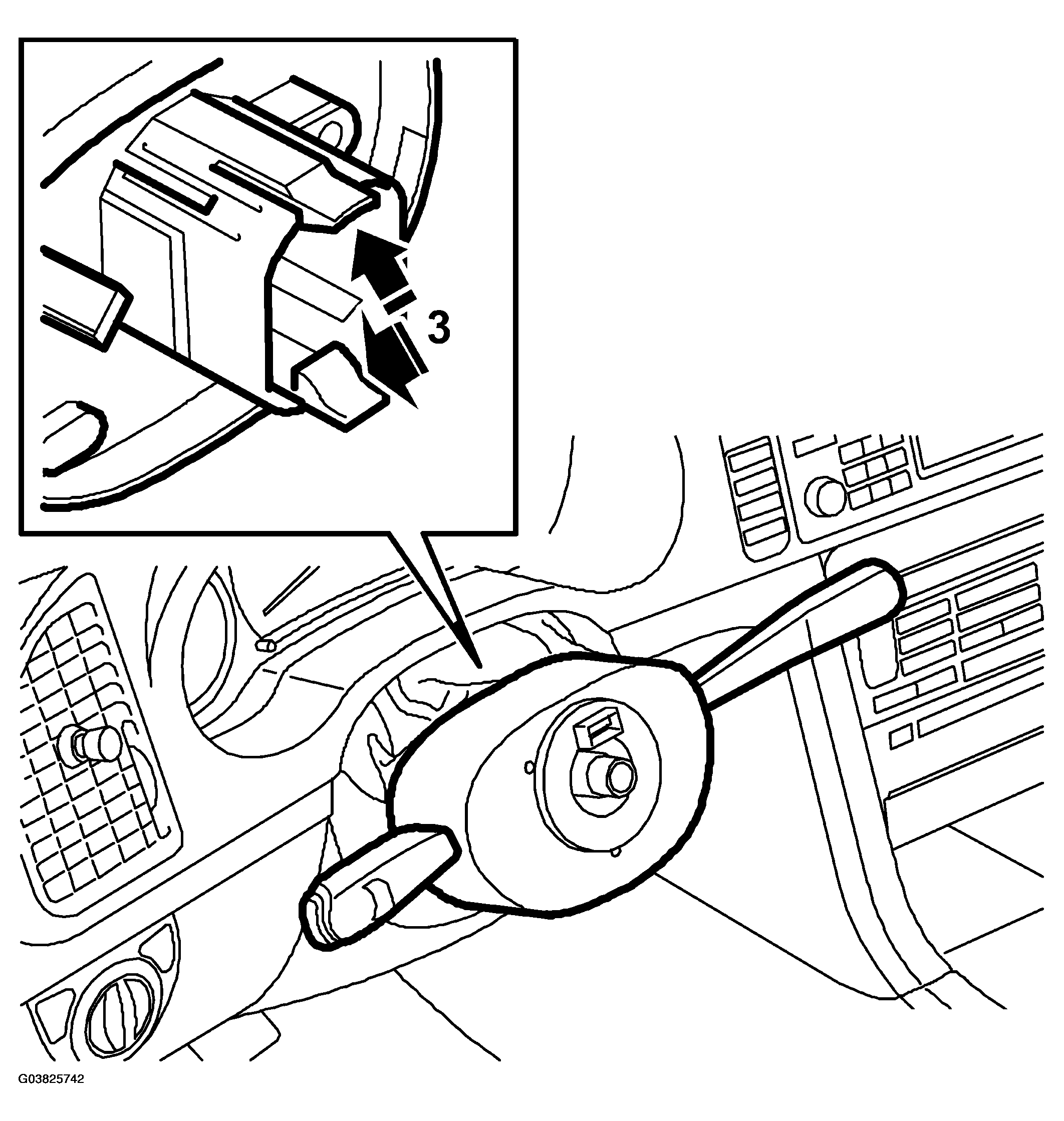

    Fig 2: Removing Control Module
    G03825742Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  4. Unplug the connector and remove the clip.

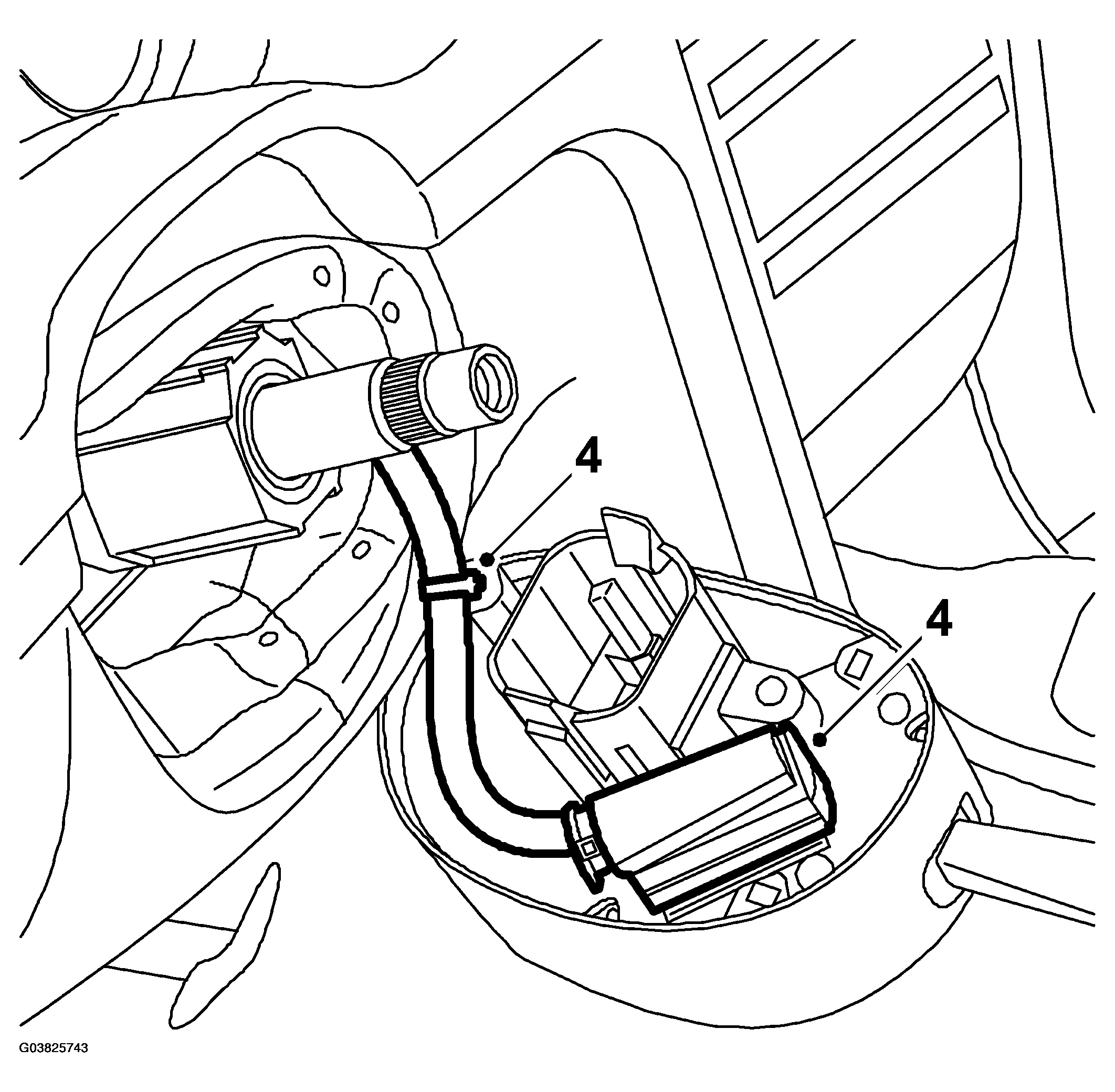

    Fig 3: Illustration For Step - 4
    G03825743Courtesy of SAAB-SCANIA OF AMERICA, INC.
