Steering column lock, main components

WARNING: This page is about a different car, the 2005 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

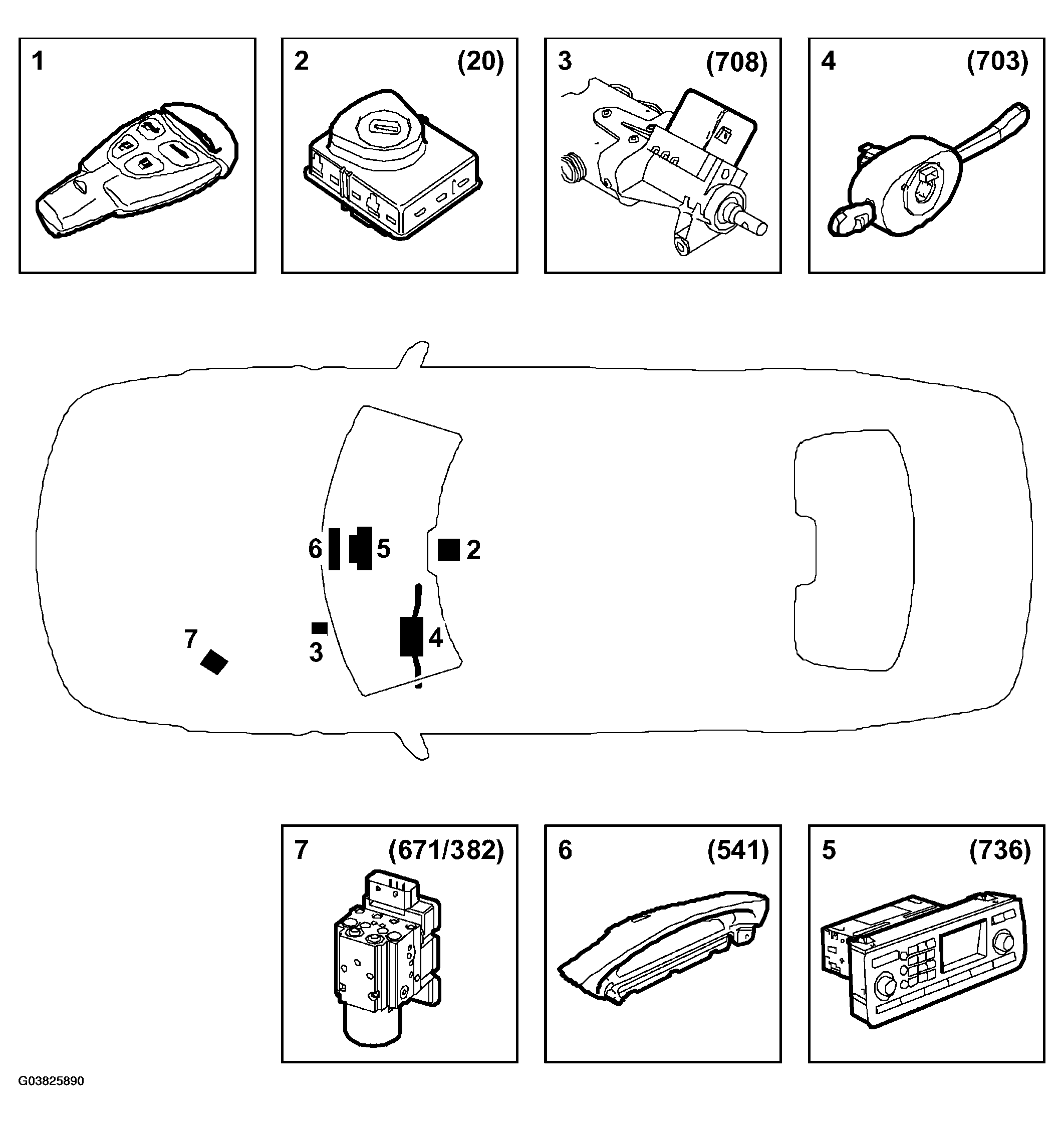

Fig 1: Identifying Steering Column Lock Main Components
G03825890Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Key/Remote control
  2. Ignition switch, ISM (20)
  3. Steering column lock, SCL (708)
  4. Column integration module, CIM (703)
  5. Infotainment system control panel, ICM (736)
  6. SID (541c)
  7. TCS control module/ESP control module, rear wheel sensor (382/671)
