Steering column lock: Overview

WARNING: This page is about a different car, the 2005 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

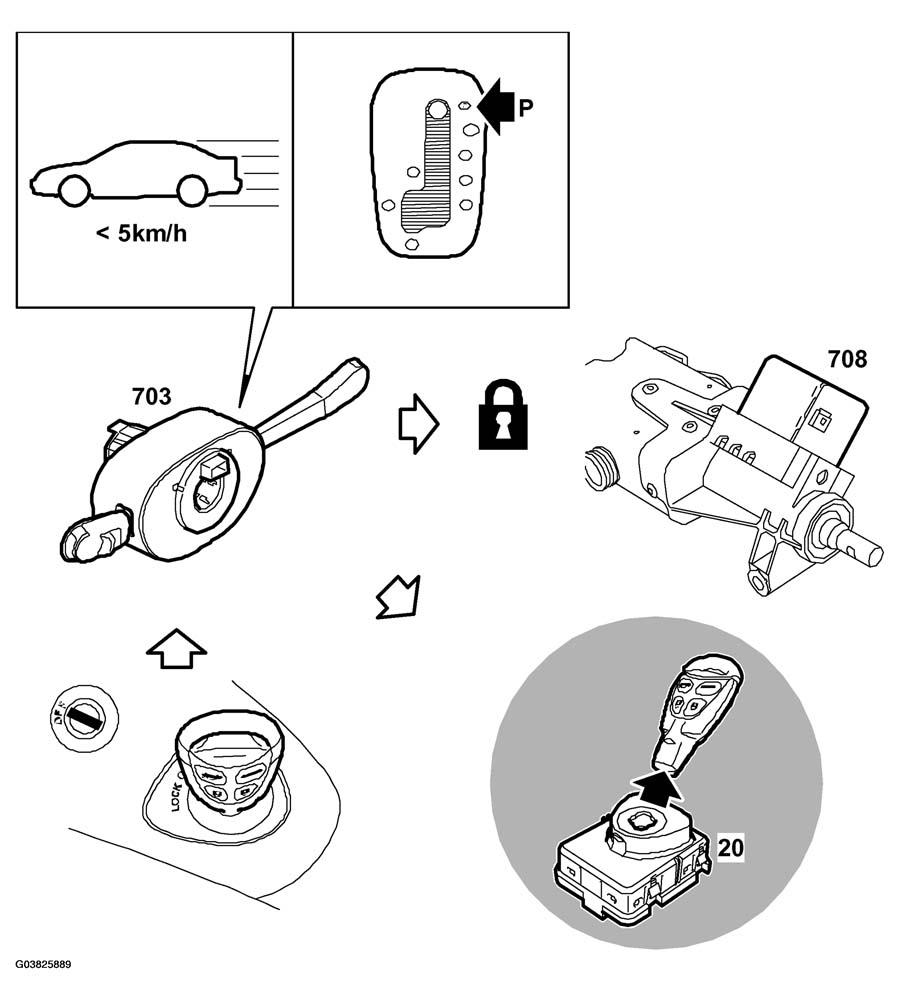

Fig 1: Identifying Steering Column Lock

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Key/Remote control
Ignition switch, ISM (20)
Column integration module, CIM (703)
Steering column lock, SCL (708)
