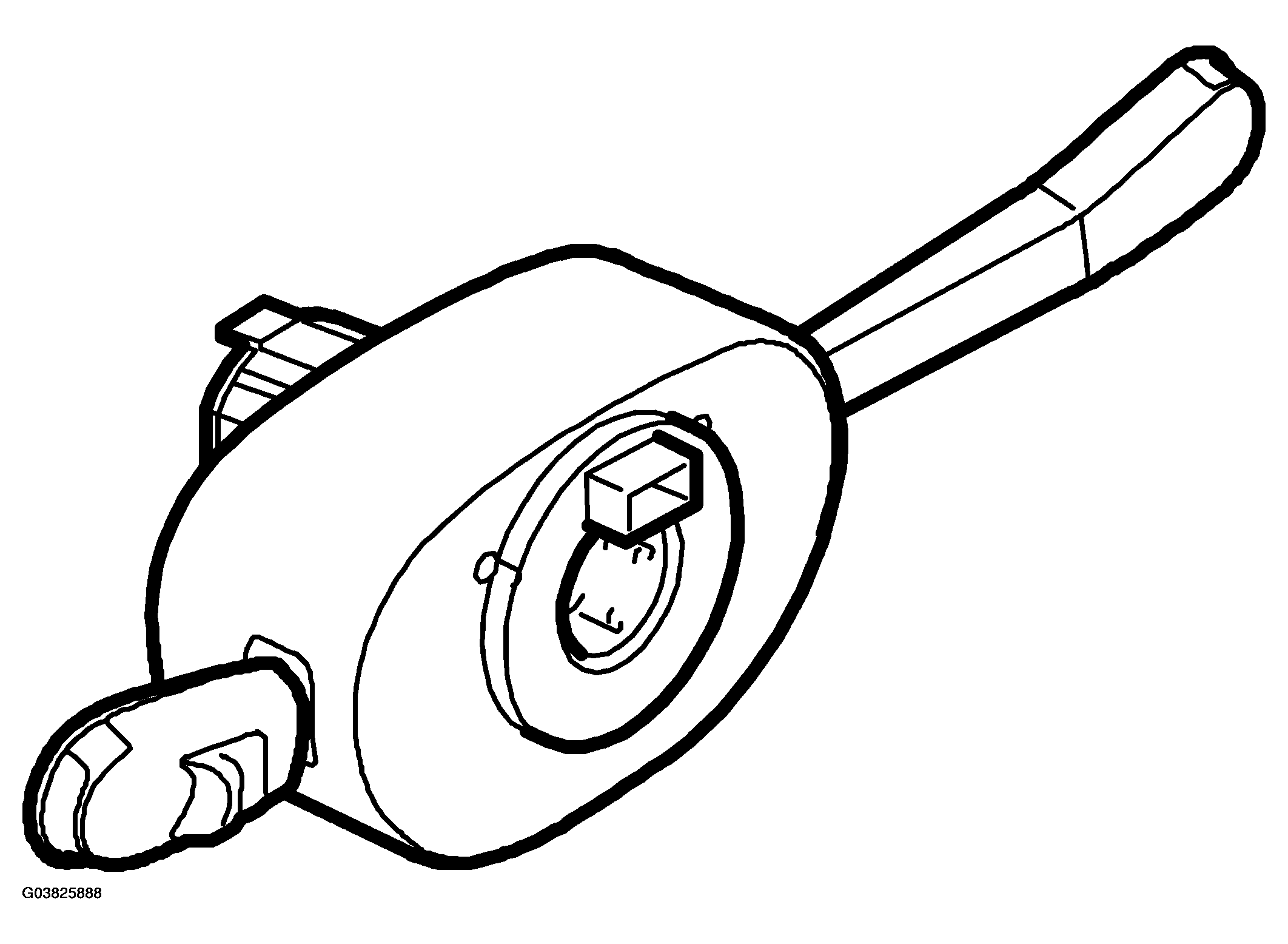

Column integration module
WARNING: This page is about a different car, the 2005 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. PIN DESCRIPTION
| +30 |
Pin 1 |
| I-bus |
Pins 4, 20 |
| P-bus + |
Pin 5 |
| P-bus - |
Pin 6 |
| Power ground |
Pin 7 |
| +B |
Pin 18 |
| I-bus |
Pin 19 |
| P-bus + |
Pin 21 |
| P-bus - |
Pin 22 |
| +15 |
Pin 23 |
