Control module ground: Notes

The control module is grounded via pin 19 to ground point G2.

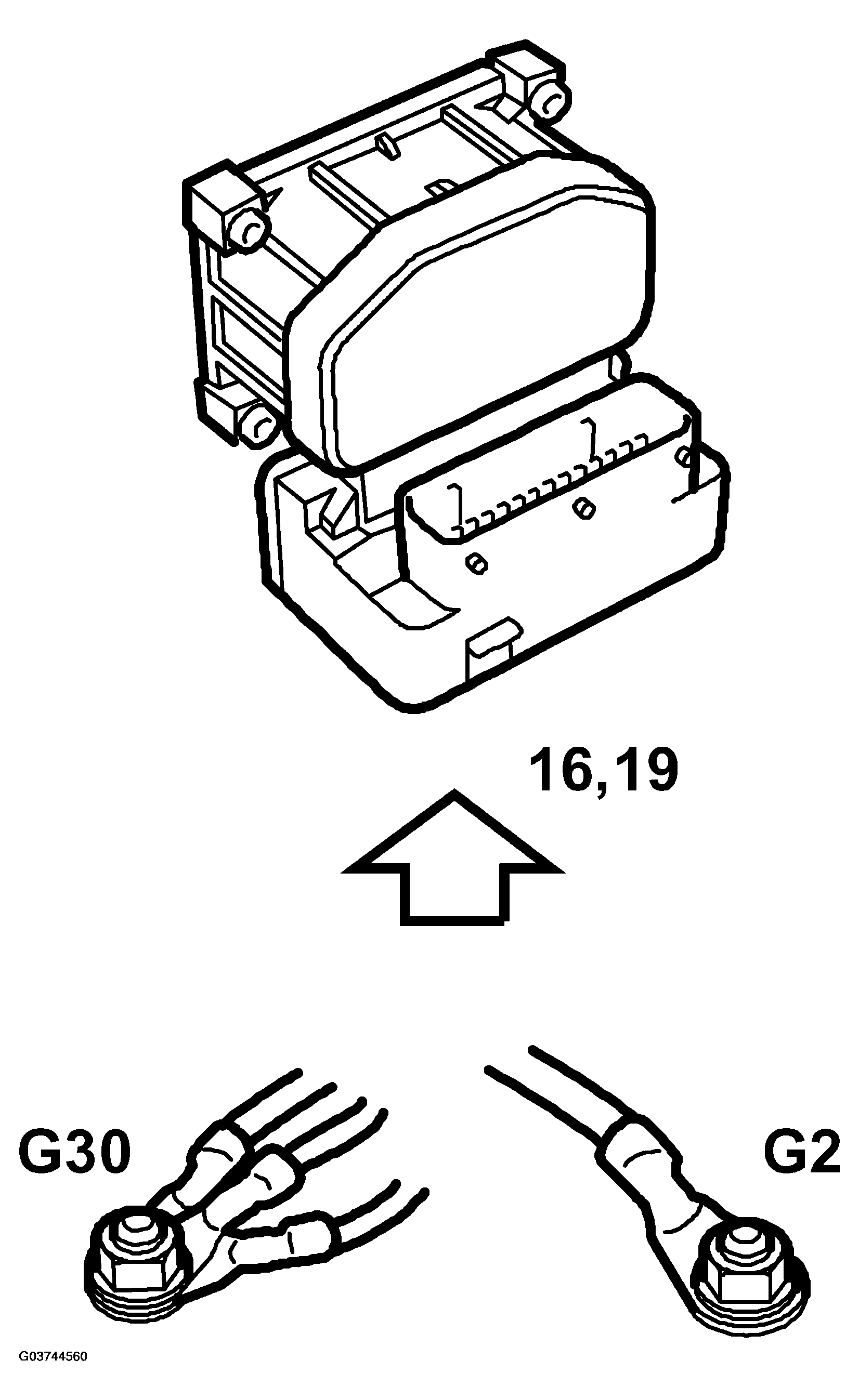

Fig 1: Identifying Control Module Ground Points

Courtesy of SAAB-SCANIA OF AMERICA, INC.

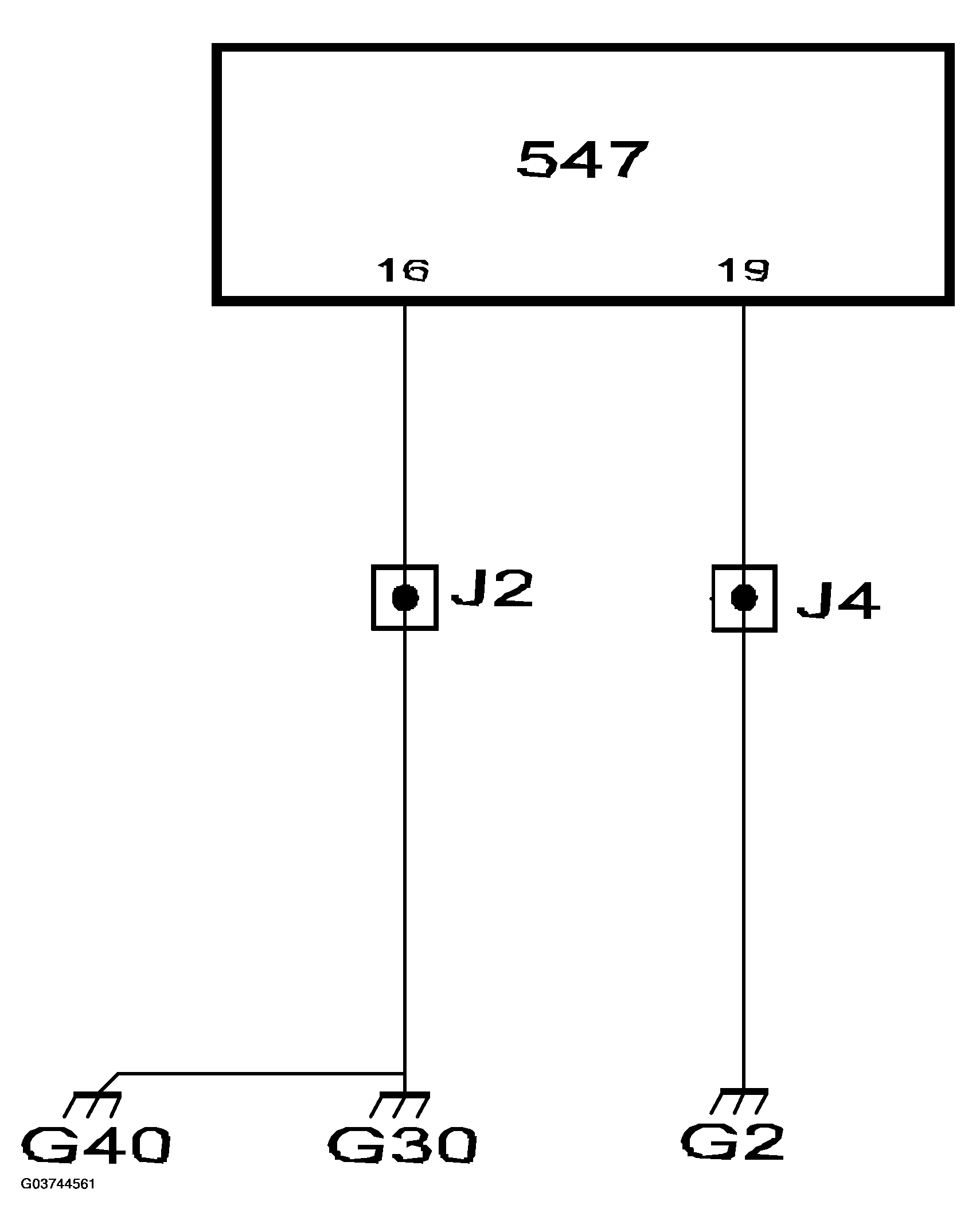

Fig 2: Circuit Diagram - Control Module Ground Points

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The pump motor is grounded via pin 16 to ground points G30 and G40.
