Main components

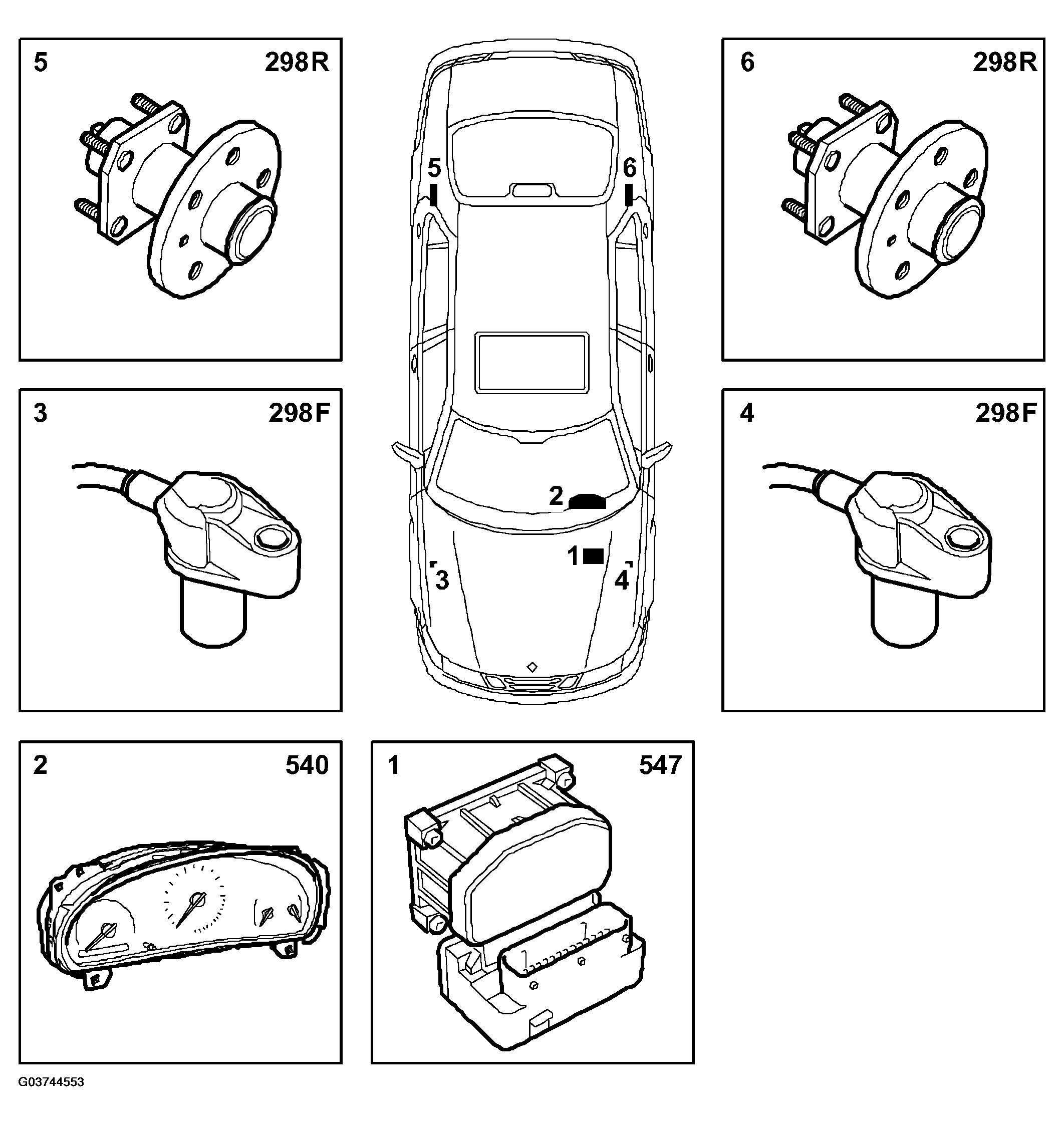

Fig 1: Identifying ABS 5.4 System Main Components
G03744553Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Hydraulic unit, complete with control module, valve block and return pump (547)
  2. ABS warning lamp on MIU (540)
  3. Wheel sensor, FR (298)
  4. Wheel sensor, FL (298)
  5. Wheel sensor, RR (298)
  6. Wheel sensor. RL (298)
  7. Page 1 of 1 In
